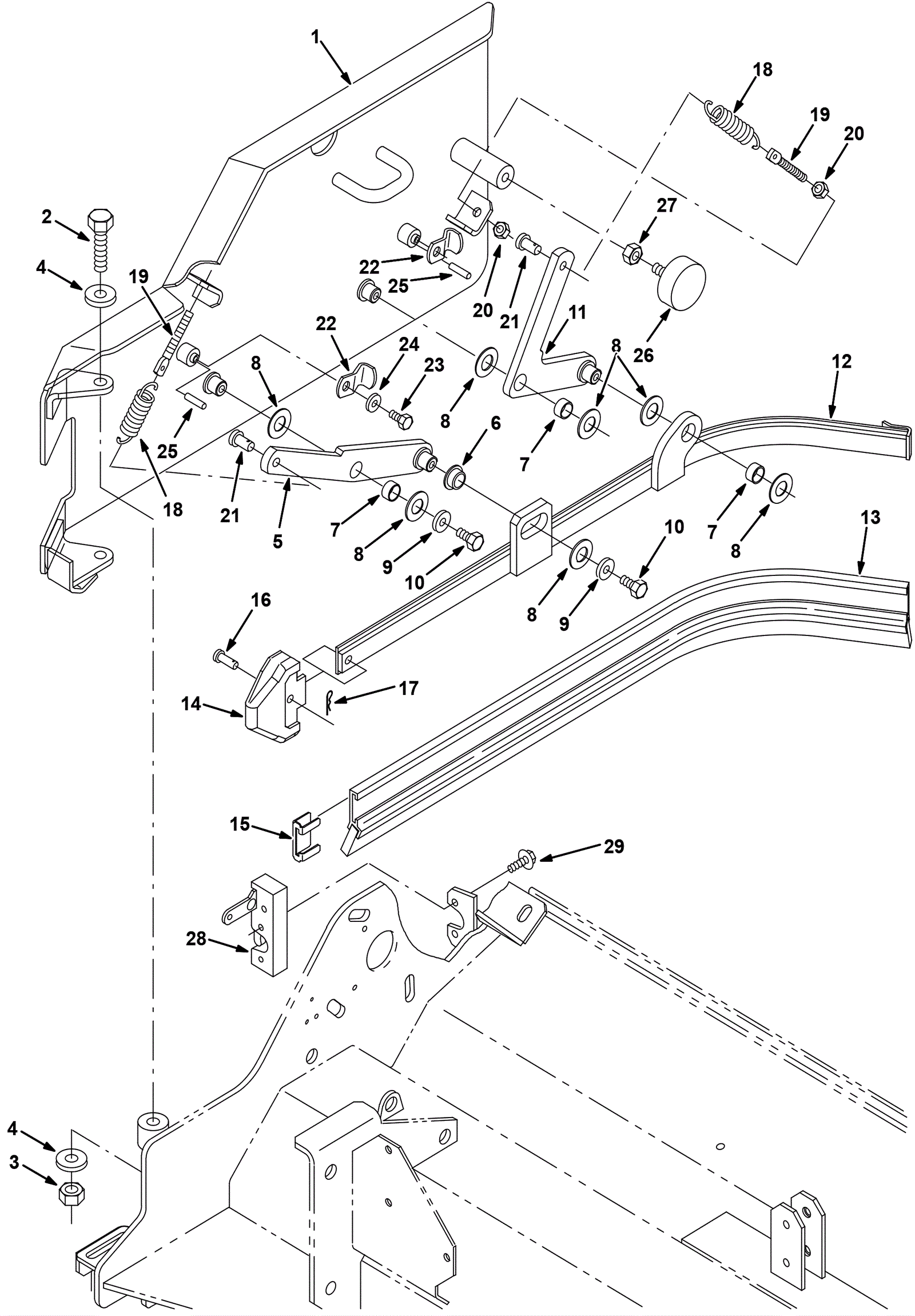

# | Part | Description | Price | Req | Notes | Availability |
1a |
275-8645
|
GUARD WLDT, RH [MP1200] (Tennant Industrial) |
$957.58
|
1 |
(before SN 005000) |
usually ships 1-5 days |
1b |
275-2583
|
Right hand guard weldment (gray) (Tennant Industrial) |
$910.82
|
1 |
(after SN 004999) |
usually ships 1-5 days |
2 |
275-2936
|
SCREW, HEX, M12 X 1.75 X 50, SS (Tennant Industrial) |
$9.69
|
2 |
|
usually ships 1-5 days |
3 |
999-0519
|
Nut M12-1.75 nylon insert lock stainless steel |
$2.12
|
2 |
|
ships same day |
4 |
175-5407
|
Washer M12 flat stainless steel |
$3.19
|
4 |
|
usually ships 6-16 days |
5a |
275-8653
|
ARM WLDT, FRONT, RH (Tennant Industrial) |
$158.82
|
1 |
(before SN 005000) |
usually ships 1-5 days |
5b |
275-2572
|
Right hand front arm weldment (gray) (Tennant Industrial) |
$93.52
|
1 |
(after SN 004999) |
usually ships 1-5 days |
6 |
175-3460
|
Flanged bushing |
$10.56
|
1 |
|
usually ships 6-16 days |
7 |
175-3349
|
Sleeved bushing |
$11.20
|
3 |
|
ships same day |
8 |
175-3347
|
Washer .61 thrust |
$4.84
|
7 |
|
ships same day |
9 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
$0.99
|
4 |
|
ships same day |
10 |
999-1415
|
Screw M8-1.25 x 12mm hex head stainless steel |
$1.38
|
4 |
|
ships same day |
11a |
275-8655
|
ARM WLDT, REAR, RH (Tennant Industrial) |
$152.97
|
1 |
(before SN 005000) |
usually ships 1-5 days |
11b |
275-2573
|
Right hand rear arm weldment (gray) (Tennant Industrial) |
$108.22
|
1 |
(after SN 004999) |
usually ships 1-5 days |
12 |
175-0773
|
FRAME WLDT, SQGE, SIDE, RH (Tennant Industrial) |
$355.71
|
1 |
|
usually ships 1-5 days |
13 |
175-2969
|
BLADE ASSY, SQGE, 28.6L (Tennant Industrial) |
$96.69
|
1 |
|
usually ships 6-16 days |
14 |
175-0774
|
GUIDE, POINT, SQGE, SIDE (Tennant Industrial) |
$56.95
|
1 |
|
usually ships 1-5 days |
15 |
175-3357
|
Squeegee blade retainer |
$10.00
|
1 |
|
ships same day |
16 |
175-0775
|
Clevis pin (Tennant Industrial) |
$6.01
|
1 |
|
usually ships 1-5 days |
17 |
175-7107
|
Cotter hair pin |
$2.20
|
1 |
|
usually ships 1-5 days |
18 |
175-0770
|
Extension spring |
$4.50
|
2 |
|
usually ships 6-16 days |
19 |
175-0772
|
BOLT, EYE, M8 X 1.25 X 070MM, 05.50 EYE (Tennant Industrial |
$36.57
|
2 |
|
usually ships 1-5 days |
20 |
999-1424
|
Nut M8-1.25 hex stainless steel |
$1.65
|
4 |
|
ships same day |
21 |
275-0146
|
PIN, CLEVIS, 0.37D X 0.75L (Tennant Industrial) |
$5.01
|
2 |
|
usually ships 1-5 days |
22 |
275-2574
|
Iron arm latch (gray) (Tennant Industrial) |
$14.53
|
2 |
|
usually ships 1-5 days |
23 |
175-8867
|
SCREW, HEX, M6 X 1.00 X 12, SS (Tennant Industrial) |
$5.01
|
2 |
|
usually ships 1-5 days |
24 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
$0.99
|
2 |
|
ships same day |
25 |
175-0768
|
PIN, ROLL, .250D X 0.75L, .250/.256 (Tennant Industrial) |
$4.84
|
2 |
|
usually ships 1-5 days |
26 |
275-3247
|
BUMPER, RBR, 2.0D 0.75TH .38-16 (Tennant Industrial) |
$42.08
|
1 |
|
usually ships 6-16 days |
27 |
275-3268
|
Nut 3/8 - 16 hex, ss |
$3.00
|
1 |
|
usually ships 1-5 days |
28 |
275-8657
|
LATCH (Tennant Industrial) |
$105.88
|
1 |
|
usually ships 1-5 days |
29 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
$3.85
|
4 |
|
ships same day |
