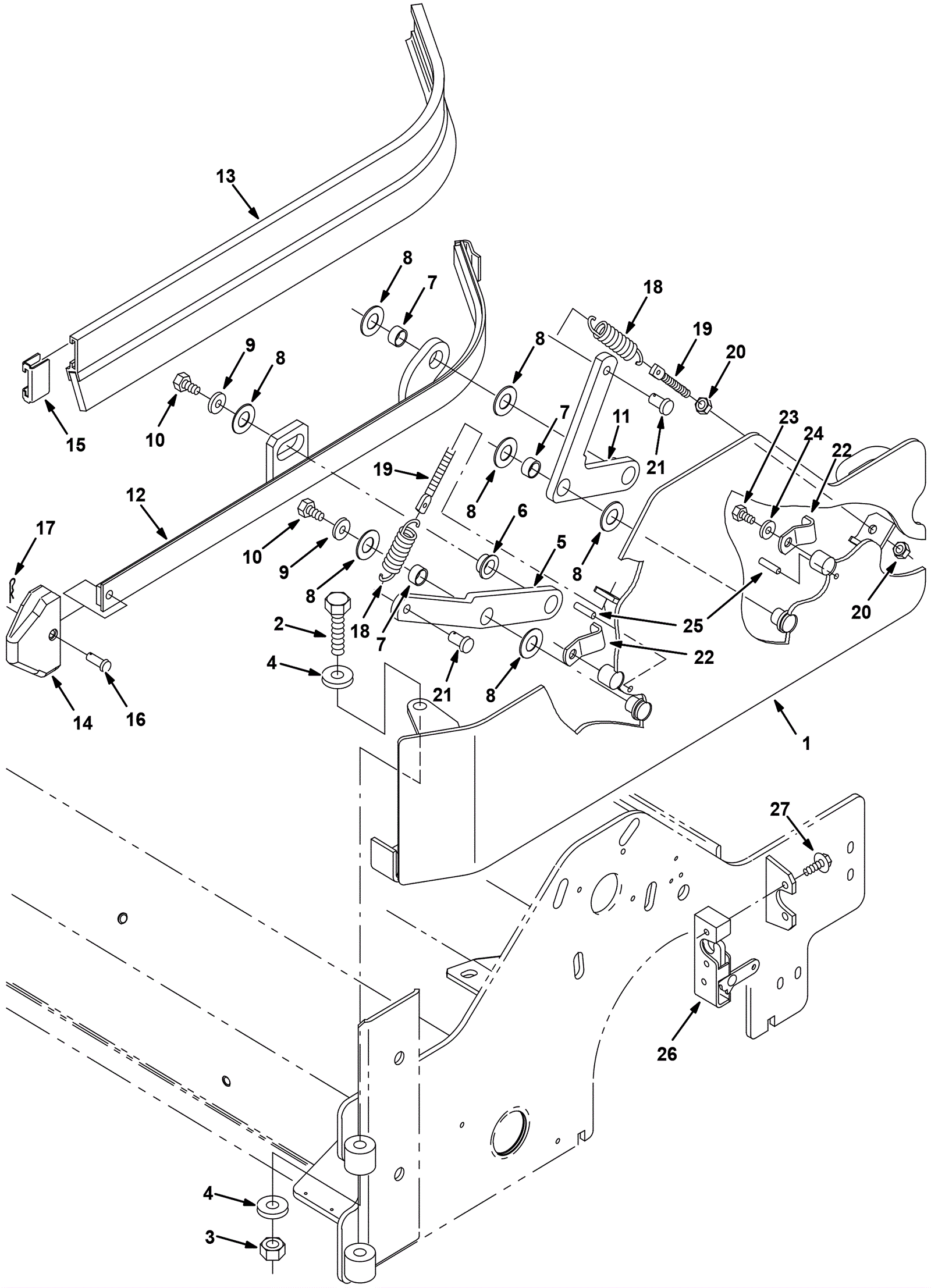

7300 Left Side Squeegee Assembly - Cylindrical - Max Pro 1000

#PartDescriptionPriceReqNotesAvailability
1a 275-8658 GUARD WLDT, LH (Tennant Industrial) $789.74 1 (before SN 005000) usually ships 1-5 days
1b 275-2575 Left hand guard weldment (gray) (Tennant Industrial) $600.20 1 (after SN 004999) usually ships 1-5 days
2 275-2936 SCREW, HEX, M12 X 1.75 X 50, SS (Tennant Industrial) $9.69 2 usually ships 1-5 days
3 999-0519 Nut M12-1.75 nylon insert lock stainless steel $2.12 2 ships same day
4 175-5407 Washer M12 flat stainless steel $2.90 4 usually ships 5-16 days
5a 275-8659 ARM WLDT, FRONT, LH (Tennant Industrial) $174.18 1 (before SN 005000) usually ships 1-5 days
5b 275-2576 Left hand front arm weldment (gray) (Tennant Industrial) $95.19 1 (after SN 004999) usually ships 1-5 days
6 175-3460 Flanged bushing $9.60 1 usually ships 5-16 days
7 175-3349 Sleeved bushing $11.20 3 ships same day
8 175-3347 Washer .61 thrust $4.40 7 ships same day
9 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 4 ships same day
10 999-1415 Screw M8-1.25 x 12mm hex head stainless steel $1.52 4 ships same day
11a 275-8660 ARM WLDT, REAR, LH (Tennant Industrial) $151.30 1 (before SN 005000) usually ships 1-5 days
11b 275-2577 Left hand rear arm weldment (gray) (Tennant (Industrial) $107.38 1 (after SN 004999) usually ships 1-5 days
12 175-0778 FRAME WLDT, SQGE, SIDE, LH (Tennant Industrial) $370.41 1 usually ships 5-16 days
13 175-2969 BLADE ASSY, SQGE, 28.6L (Tennant Industrial) $96.69 1 usually ships 5-16 days
14 175-0774 GUIDE, POINT, SQGE, SIDE (Tennant Industrial) $56.95 1 usually ships 5-16 days
15 175-3357 Squeegee blade retainer $10.00 1 ships same day
16 175-0775 Clevis pin (Tennant Industrial) $6.01 1 usually ships 5-16 days
17 175-7107 Cotter hair pin $2.20 1 usually ships 5-16 days
18 175-0770 Extension spring $4.50 2 usually ships 5-16 days
19 175-0772 BOLT, EYE, M8 X 1.25 X 070MM, 05.50 EYE (Tennant Industrial $36.57 2 usually ships 1-5 days
20 999-1424 Nut M8-1.25 hex stainless steel $1.65 4 usually ships 11-24 days
21 275-0146 PIN, CLEVIS, 0.37D X 0.75L (Tennant Industrial) $5.01 2 usually ships 5-16 days
22 275-2574 Iron arm latch (gray) (Tennant Industrial) $14.53 2 usually ships 1-5 days
23 175-8867 SCREW, HEX, M6 X 1.00 X 12, SS (Tennant Industrial) $5.01 2 usually ships 1-5 days
24 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
25 175-0768 PIN, ROLL, .250D X 0.75L, .250/.256 (Tennant Industrial) $4.84 2 usually ships 1-5 days
26 275-8661 LATCH (Tennant Industrial) $99.53 1 usually ships 1-5 days
27 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 4 ships same day
