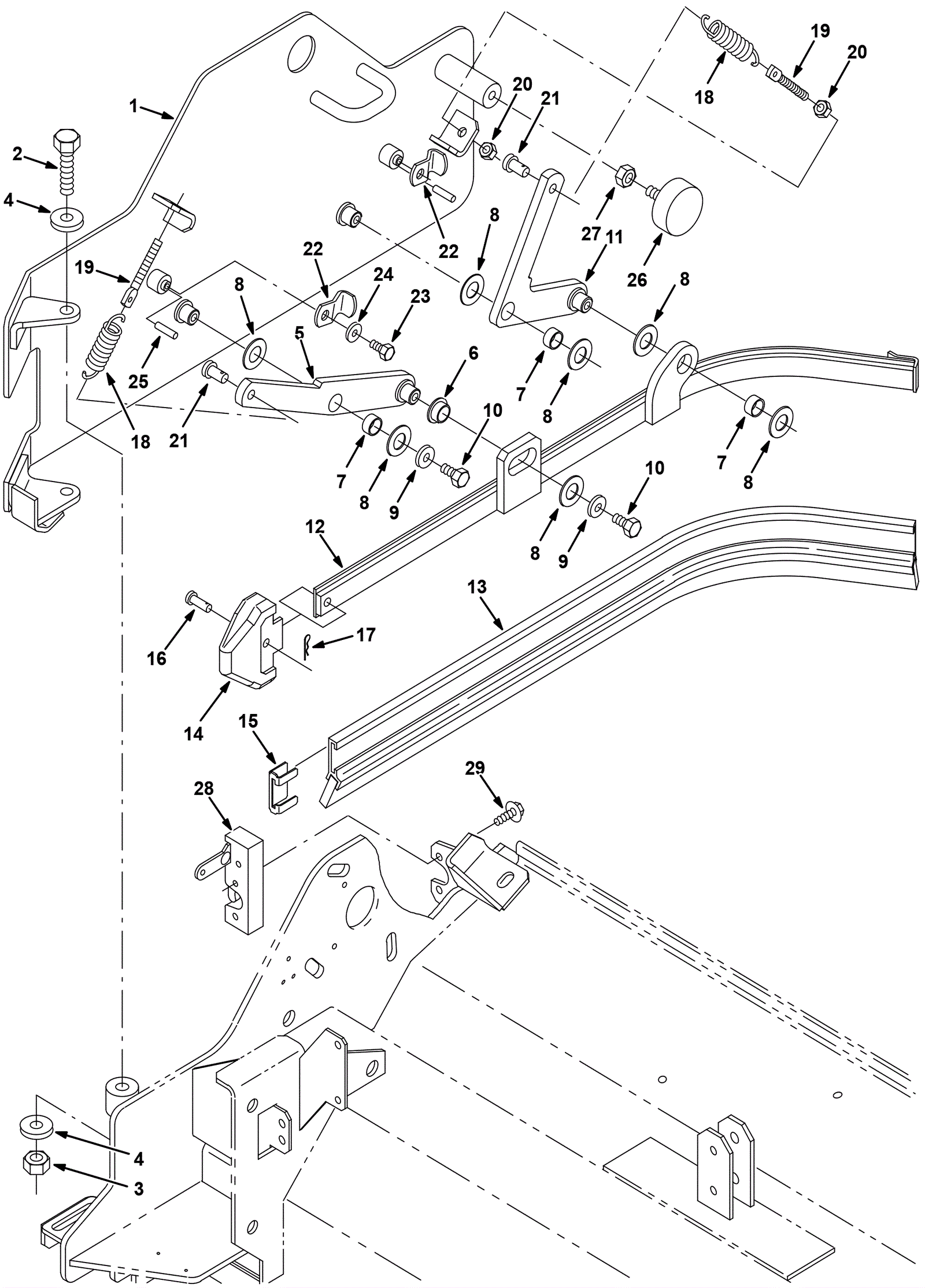

Right Side Squeegee Assembly - Cylindrical - Max Pro 1000

#PartDescription ReqNotesAvailability
1a 275-8652 GUARD WLDT, RH (Tennant Industrial) 1 (before SN 005000)
1b 275-2571 Right hand guard weldment (gray) (Tennant Industrial) 1 (after SN 004999)
2 275-2936 SCREW, HEX, M12 X 1.75 X 50, SS (Tennant Industrial) 2
3 999-0519 Nut M12-1.75 nylon insert lock stainless steel 2
5a 275-8653 ARM WLDT, FRONT, RH (Tennant Industrial) 1 (before SN 005000)
5b 275-2572 Right hand front arm weldment (gray) (Tennant Industrial) 1 (after SN 004999)
6 175-3460 Flanged bushing 1
7 175-3349 Sleeved bushing 3
8 175-3347 Washer .61 thrust 7
9 999-0355 175-2249 4
10 999-1415 Screw M8-1.25 x 12mm hex head stainless steel 4
11a 275-8655 ARM WLDT, REAR, RH (Tennant Industrial) 1 (before SN 005000)
11b 275-2573 Right hand rear arm weldment (gray) (Tennant Industrial) 1 (after SN 0049990
12 175-0773 FRAME WLDT, SQGE, SIDE, RH (Tennant Industrial) 1
13 175-2969 BLADE ASSY, SQGE, 28.6L (Tennant Industrial) 1
14 175-0774 GUIDE, POINT, SQGE, SIDE (Tennant Industrial) 1
15 175-3357 Squeegee blade retainer 1
16 175-0775 Clevis pin (Tennant Industrial) 1
17 175-7107 Cotter hair pin 1
18 175-0770 Extension spring 2
19 175-0772 BOLT, EYE, M8 X 1.25 X 070MM, 05.50 EYE (Tennant Industrial 2
20 999-1424 Nut M8-1.25 hex stainless steel 4
21 275-0146 PIN, CLEVIS, 0.37D X 0.75L (Tennant Industrial) 2
22 275-2574 Iron arm latch (gray) (Tennant Industrial) 2
23 175-8867 SCREW, HEX, M6 X 1.00 X 12, SS (Tennant Industrial) 2
24 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
25 175-0768 PIN, ROLL, .250D X 0.75L, .250/.256 (Tennant Industrial) 2
26 275-3247 BUMPER, RBR, 2.0D 0.75TH .38-16 (Tennant Industrial) 1
27 275-3268 Nut 3/8 - 16 hex, ss 1
28 275-8657 LATCH (Tennant Industrial) 1
29 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel 4
