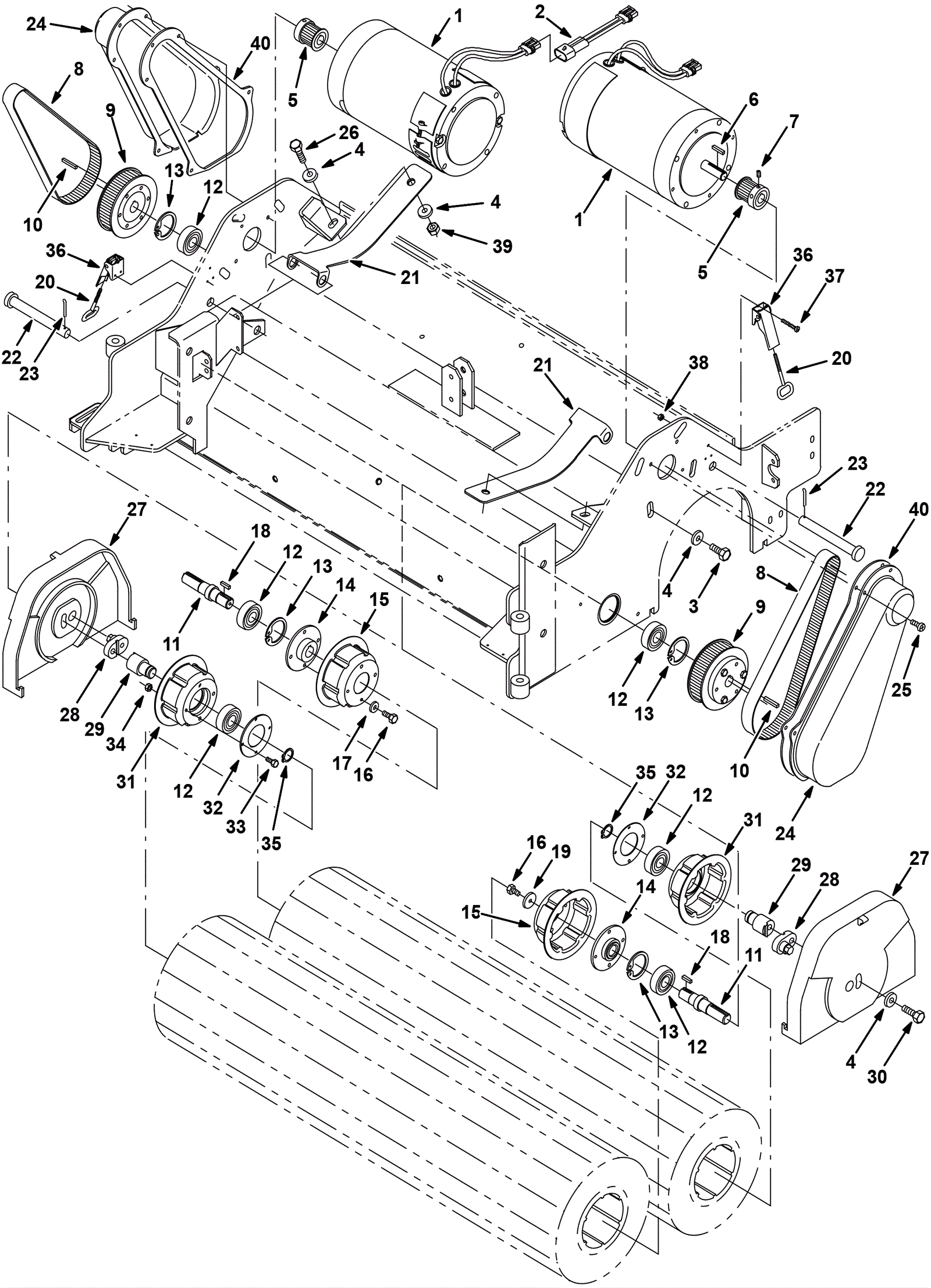

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
275-2566
|
Electric Motor - 1.5 HP 36 Volt (Tennant Industrial) |
2 |
(includes 1b) |
|
1b |
175-1113
|
Carbon brush (sold individually) |
2 |
|
|
2 |
175-5395
|
Jumper reverse wire assembly |
1 |
|
|
3 |
999-1170
|
Bolt M10-1.5 x 20mm hex head stainless steel |
8 |
|
|
4 |
999-0355
|
175-2249 |
14 |
|
|
5 |
275-8628
|
Timing sprocket 23 tooth |
2 |
|
|
6 |
175-3200
|
Square keyway |
2 |
|
|
7 |
275-0724
|
Screw M1/4 - 20 x 5/16 socket set |
4 |
|
|
8 |
275-8629
|
Belt, synchronous (Tennant Industrial) |
2 |
|
|
9 |
275-8630
|
SPROCKET, TIMING, 4.261PD, 68GRV, PL (Tennant Industrial) |
2 |
|
|
10 |
275-0085
|
Square key .19 x .19 1.25l |
2 |
|
|
11 |
275-8631
|
SHAFT, DRIVE, BRUSH (Tennant Industrial) |
2 |
|
|
12 |
175-9072
|
Ball bearing |
6 |
|
|
13 |
275-8632
|
RING, RETAINING, INT, 1.85D, BASIC (Tennant Industrial) |
4 |
|
|
14 |
275-7993
|
Drive brush hub weldment (gray) (Tennant Industrial) |
2 |
|
|
15 |
275-7994
|
Drive brush plug (gray) (Tennant Industrial) |
2 |
|
|
16 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
10 |
|
|
17 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
8 |
|
|
18 |
175-8818
|
Square keyway |
2 |
|
|
19 |
275-1464
|
WASHER, FLAT, 0.25B 1.12D .12, SS (Tennant Industrial) |
2 |
|
|
20 |
275-8633
|
HOOK WLDT, LATCH (Tennant Industrial) |
2 |
|
|
21 |
275-2567
|
Motor spring (gray) (Tennant Industrial) |
2 |
|
|
22 |
275-8635
|
PIN, CLEVIS, 0.62D X 5.25L (Tennant Industrial) |
2 |
|
|
23 |
175-2106
|
Cotter hair pin |
2 |
|
|
24 |
275-8636
|
COVER, DRIVE (Tennant Industrial) |
2 |
|
|
25 |
999-0807
|
Screw M6-1 x 10mm flat head phillips |
10 |
|
|
26 |
999-0774
|
Bolt M10-1.5 x 30mm hex head stainless steel full thread |
2 |
|
|
27 |
175-2977
|
COVER, IDLER (Tennant Industrial) |
2 |
|
|
28 |
275-8637
|
CAM, FRONT (Tennant Industrial) |
2 |
|
|
29 |
275-8638
|
CAM, REAR (Tennant Industrial) |
2 |
|
|
30 |
999-0774
|
Bolt M10-1.5 x 30mm hex head stainless steel full thread |
2 |
|
|
31 |
275-6556
|
Brush drive plug (Tennant Industrial) |
2 |
|
|
32 |
275-6557
|
Bearing retainer (Tennant Industrial) |
2 |
|
|
33 |
999-1220
|
Screw M5-.8 x 12mm hex head stainless steel |
8 |
|
|
34 |
175-2894
|
Nut M5-.8 hex nylon locking |
8 |
|
|
35 |
275-2003
|
Retaining ring (Tennant Industrial) |
2 |
|
|
36 |
275-8639
|
LATCH (Tennant Industrial) |
2 |
|
|
37 |
175-2079
|
Screw M4-.07 x 35mm pan head stainless steel |
6 |
|
|
38 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
6 |
|
|
39 |
999-1120
|
Nut M10-1.5 nylon insert lock stainless steel |
2 |
|
|
40 |
275-8640
|
GASKET, COVER, .09 (Tennant Industrial) |
2 |
|
|
