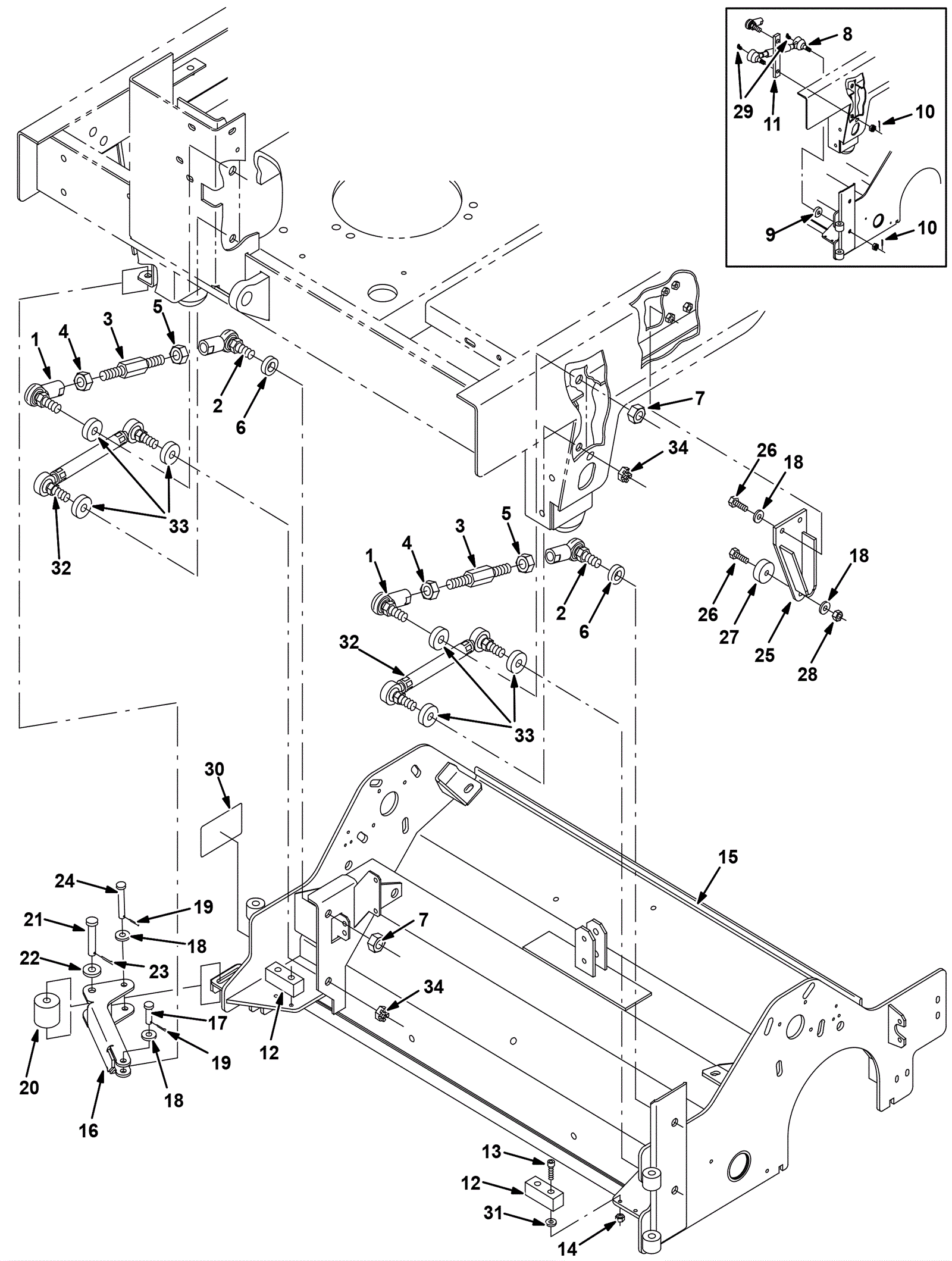

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-8620
|
ROD-END, 0.62-18RH FEM 0.50-18STUD (Tennant Industrial) |
2 |
|
|
2 |
275-8621
|
ROD-END, 0.63-18LH (Tennant Industrial) |
2 |
|
|
3 |
275-8622
|
ROD, LINK (Tennant Industrial) |
2 |
|
|
4 |
999-0003
|
Nut 5/8-18 hex jam stainless steel |
2 |
|
|
5 |
999-1284
|
Nut 5/8-18 hex jam left hand stainless steel |
2 |
|
|
6 |
275-8623
|
TUBE, 0.69ID 1.25OD 00.4L, BLK, ROD-END (Tennant Industrial |
2 |
|
|
7 |
999-0403
|
Nut 5/8-18 nylon insert lock grade 8 yellow zinc |
4 |
|
|
8 |
275-2563
|
Rod-end link assembly (Tennant Industrial) |
2 |
(before SN 003696) |
|
9 |
275-2563
|
Rod-end link assembly (Tennant Industrial) |
2 |
(before SN 003696) |
|
10 |
175-2040
|
Cotter pin |
4 |
(before SN 003696) |
|
11 |
275-8624
|
SPACER, PLATE (Tennant Industrial) |
2 |
(before SN 003696) |
|
12 |
275-8625
|
BUMPER, RBR, 1.0W 2.8L 1.0TH 2/0.3H (Tennant Industrial) |
2 |
|
|
13 |
275-3021
|
SCREW, PAN, PHL, M5 X 0.80 X 25, SS (Tennant Industrial) |
4 |
|
|
14 |
999-0740
|
Nut M5-.8 hex stainless steel |
4 |
|
|
15 |
275-2564
|
Brush housing weldment (gray) (Tennant Industrial) |
1 |
|
|
16a |
275-8346
|
GUARD, KICK IN, SCB HEAD (Tennant Industrial) |
1 |
(before SN 005000) |
|
16b |
275-9318
|
Scrub head kick in guard (iron gray) (Tennant Industrial) |
1 |
(after SN 004999) |
|
17 |
175-0744
|
Clevis pin .37D x 1 5/16 |
1 |
|
|
18 |
999-0355
|
175-2249 |
5 |
|
|
19 |
175-6176
|
Cotter pin |
2 |
|
|
20 |
175-0742
|
TUBE, 0.52ID 1.75OD 01.6L, STL (Tennant Industrial) |
1 |
|
|
21 |
175-0716
|
Clevis pin |
1 |
|
|
22 |
999-0187
|
Washer 1/2 flat plain finish |
1 |
|
|
23 |
175-3281
|
Cotter pin |
1 |
|
|
24 |
175-0743
|
PIN, CLEVIS, 0.38D X 2.50L (Tennant Industrial) |
1 |
|
|
25 |
275-2565
|
Stop plate weldment (gray) (Tennant Industrial) |
1 |
|
|
26 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
3 |
|
|
27 |
175-0733
|
BUMPER, PYE, 1.50D 0.56TH 0.33H (Tennant Industrial) |
1 |
|
|
28 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
1 |
|
|
29 |
275-8601
|
FITTING, GREASE, E90 PM04 .75L (Tennant Industrial) |
4 |
(before SN 003696) |
|
30 |
175-0736
|
LABEL SET, INFO/HZRD [MAXPRO] (Tennant Industrial) |
1 |
|
|
31 |
175-2367
|
Steel plated washer |
4 |
|
|
32 |
275-2563
|
Rod-end link assembly (Tennant Industrial) |
2 |
(after SN 003695) |
|
33 |
275-9320
|
Rod-end tube (gray) (Tennant Industrial) |
6 |
(after SN 003695) |
|
34 |
999-0403
|
Nut 5/8-18 nylon insert lock grade 8 yellow zinc |
4 |
(after SN 003695) |
|
