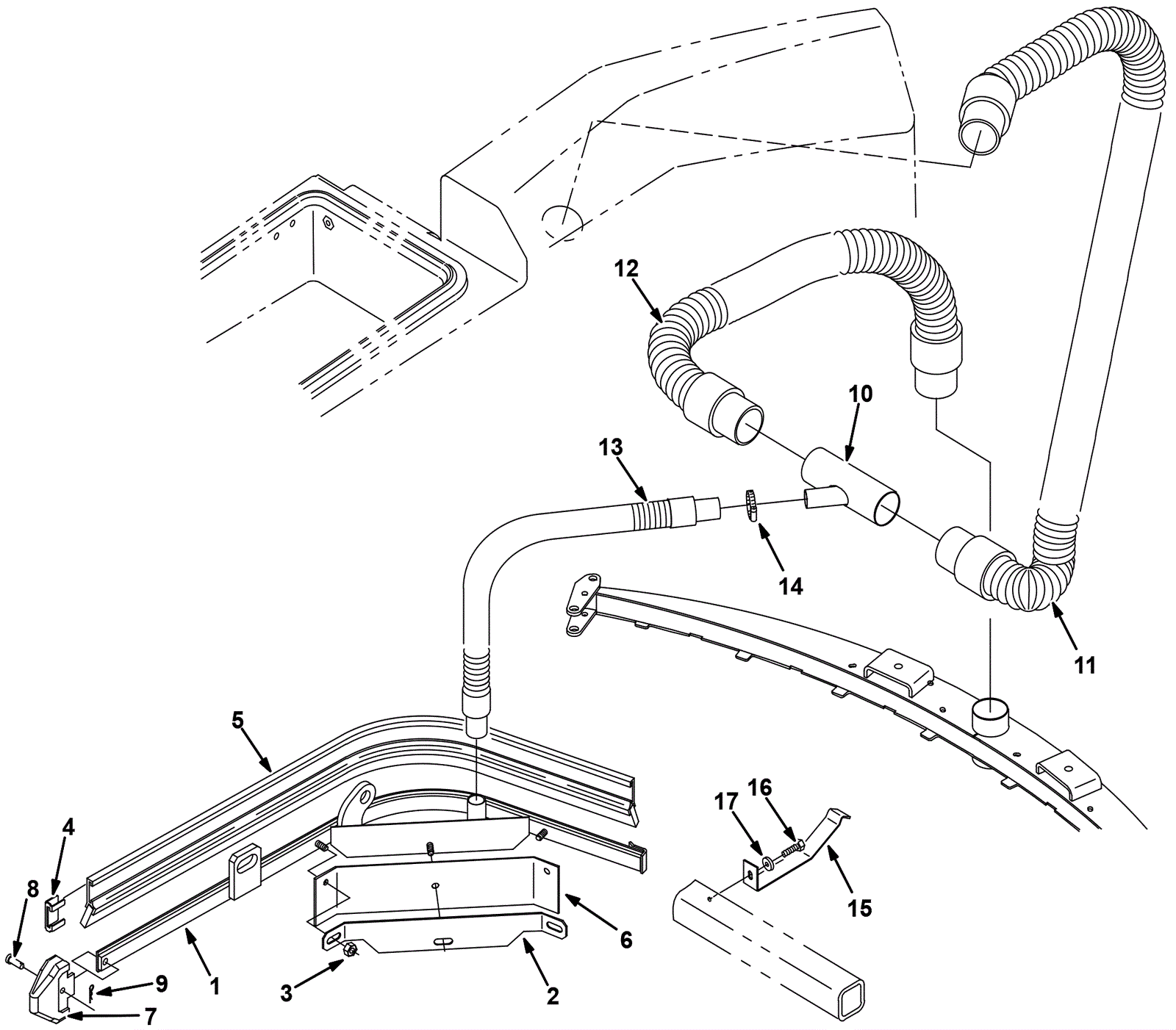

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-8608
|
FRAME ASSY, SQGE, SIDE, VACUUM, RH (Tennant Industrial) |
1 |
|
|
2 |
275-8609
|
RETAINER, BLADE, SQGE, FRONT (Tennant Industrial) |
1 |
|
|
3 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
3 |
|
|
4 |
175-3357
|
Squeegee blade retainer |
1 |
|
|
5 |
275-8610
|
BLADE ASSY, SQGE, SIDE (Tennant Industrial) |
1 |
|
|
6 |
275-8611
|
BLADE, SQGE, .12 3.00W 014.1L, linatex (Tennant Industrial) |
1 |
|
|
7 |
175-0774
|
GUIDE, POINT, SQGE, SIDE (Tennant Industrial) |
1 |
|
|
8 |
175-0775
|
Clevis pin (Tennant Industrial) |
1 |
|
|
9 |
175-2113
|
Cotter pin |
1 |
|
|
10 |
275-8612
|
TUBE WLDT, TEE, 2.0D 5.8L 1.0D (Tennant Industrial) |
1 |
|
|
11a |
275-8618
|
HOSE, VACUUM, 058.5L (Tennant Industrial) |
1 |
(before SN 001703) |
|
11b |
275-8613
|
HOSE ASSY, W/2CUFF, 2.0D 075L 2.0/2.0 (Tennant Industrial) |
1 |
(after SN 001702) |
|
12a |
275-8617
|
HOSE, VACUUM, 2.00ID X 035.0L (Tennant Industrial) |
1 |
(before SN 001703) |
|
12b |
275-8614
|
HOSE ASSY, W/2CUFF, 2.0D 026L 2.0/2.0 (Tennant Industrial) |
1 |
(after SN 001702) |
|
13a |
275-8619
|
HOSE ASSY, W/2CUFF, 1.0D 041L 1.0/1.0 (Tennant Industrial) |
1 |
(before SN 001703) |
|
13b |
275-8615
|
Hose assembly w 2 cuff |
1 |
(after SN 001702) |
|
14 |
175-2254
|
Hose clamp |
1 |
|
|
15 |
275-8616
|
BRACKET, TUBE, TEE (Tennant Industrial) |
1 |
(after SN 001702) |
|
16 |
175-3166
|
Bolt M6-1 x 16mm hex head |
1 |
(after SN 001702) |
|
17 |
999-0016
|
Washer 1/4 flat plain finish |
1 |
|
|
