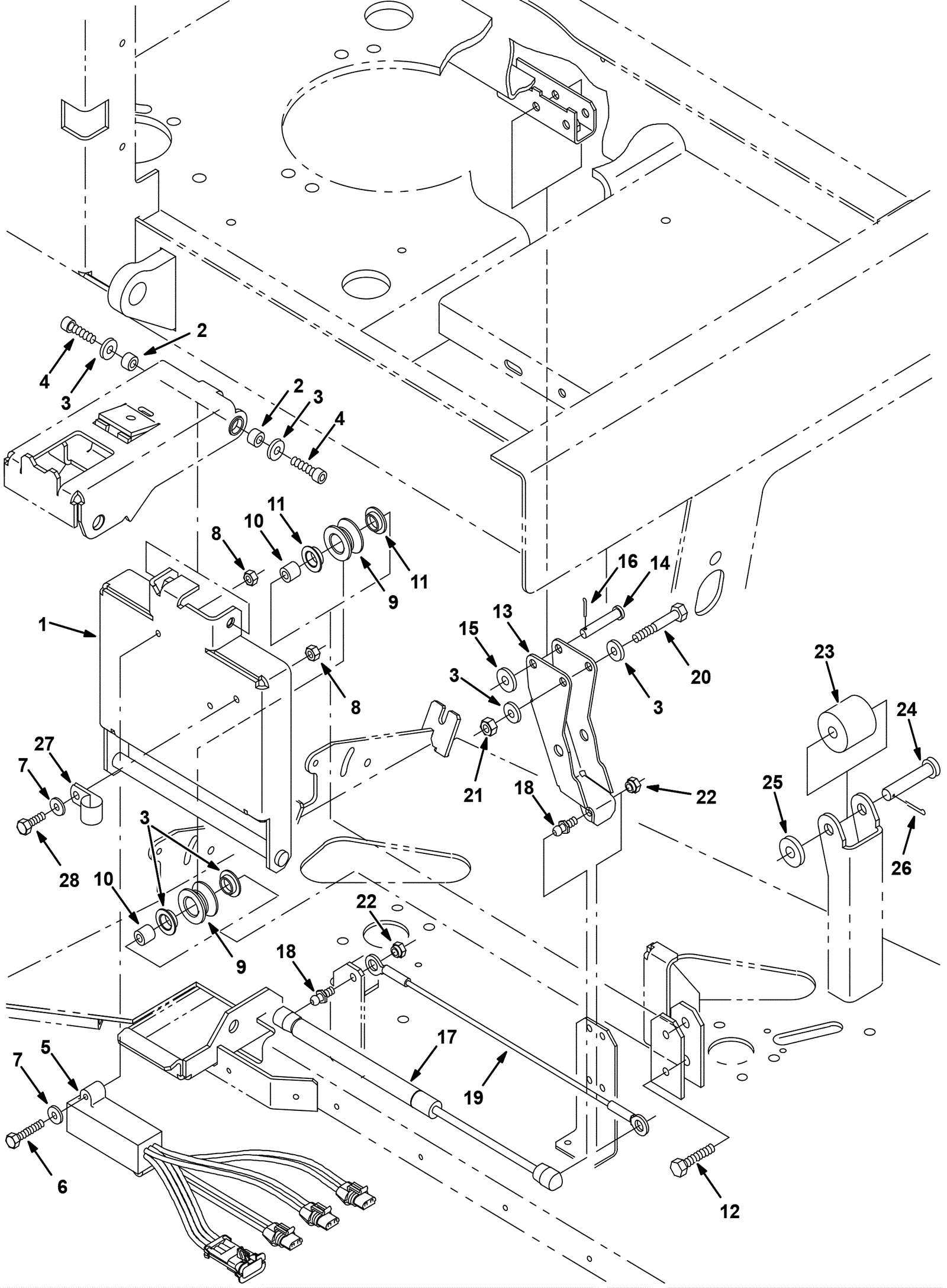

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-9321
|
Disk head lift rail weldment (iron gray) (Tennant Industria |
1 |
|
|
2 |
175-0755
|
Sleeve |
2 |
|
|
3 |
999-0355
|
175-2249 |
4 |
|
|
4 |
175-0602
|
Screw M8-1.25 x 25mm socket |
2 |
|
|
5 |
275-4168
|
SHUNT, 3 STD MOTOR, YEL [SCB 515] (Tennant Industrial) |
1 |
|
|
6 |
175-0758
|
Bolt M6-1 x 40mm hex head stainless steel |
2 |
|
|
7 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
3 |
|
|
8 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
3 |
|
|
9 |
175-0753
|
ROLLER, V-GROOVE, 1.5D 0.72B 0.8L [STL] (Tennant Industrial |
2 |
|
|
10 |
175-2563
|
Sleeve |
2 |
|
|
11 |
175-2099
|
Flanged bushing |
4 |
|
|
12 |
175-2854
|
Screw M8-1.25 x 45mm hex head stainless steel |
2 |
|
|
13 |
275-9322
|
Side pivot arm weldment (gray) (Tennant Industrial) |
1 |
|
|
14 |
173-1595
|
Clevis pin |
1 |
|
|
15 |
999-0355
|
175-2249 |
1 |
|
|
16 |
175-6176
|
Cotter pin |
1 |
|
|
17 |
175-0765
|
Gas spring, 56lb, 6.3 stroke (Tennant Industrial) |
1 |
|
|
18 |
175-0761
|
Gas spring ball stud |
2 |
|
|
19 |
175-0766
|
CABLE, GLV .13D 015.5L .50EYE /.50EYE (Tennant Industrial) |
1 |
|
|
20 |
999-1368
|
Screw M8-1.25 x 60mm hex head stainless steel |
1 |
|
|
21 |
999-0496
|
Nut M8-1.25 nylon insert lock stainless steel |
1 |
|
|
22 |
175-0762
|
NUT, RETAINER, .31-18 (Tennant Industrial) |
2 |
|
|
23 |
175-0742
|
TUBE, 0.52ID 1.75OD 01.6L, STL (Tennant Industrial) |
1 |
|
|
24 |
175-0716
|
Clevis pin |
1 |
|
|
25 |
999-0187
|
Washer 1/2 flat plain finish |
1 |
|
|
26 |
175-3281
|
Cotter pin |
1 |
|
|
27 |
175-3168
|
P clamp |
1 |
|
|
28 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
1 |
|
|
