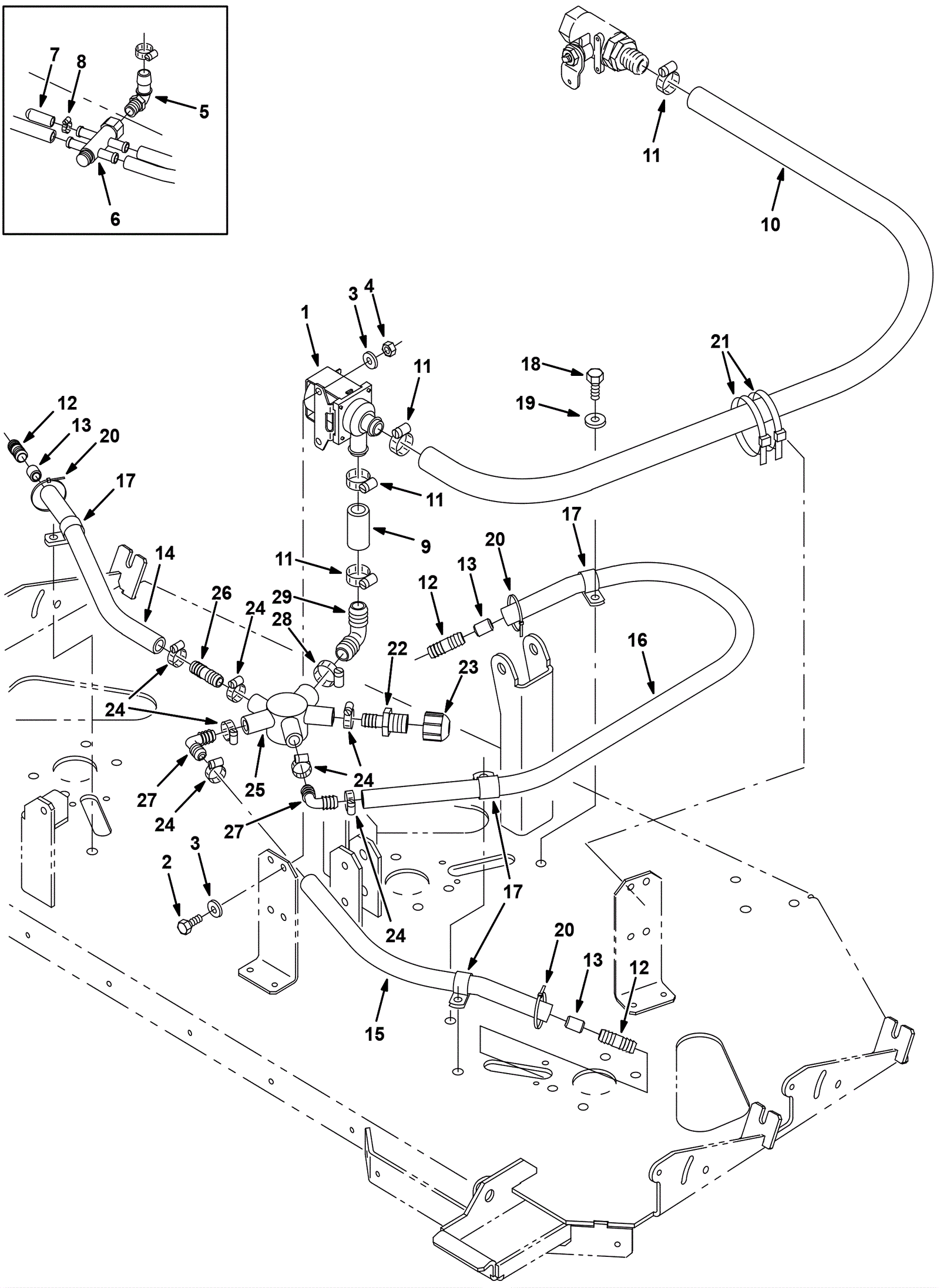

Solution Valve Assembly - Disc - Max Pro 1200

#PartDescription ReqNotesAvailability
1 675-0825 VALVE, WATER, SOLENOID - 36V (Tennant Industrial) 1
2 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 2
3 999-0123 Washer 1/4 SAE flat zinc plated 4
4 999-0497 Nut M6-1 nylon insert lock stainless steel 2
5 275-8603 FITTING, PLSTC, E90, BM12/PM08 (Tennant Industrial) 1 (before SN 001987)
6 275-2227 FITTING, PLSTC, MANIFOLD, BM06/PF08 [4] (Tennant Industrial 1 (before SN 001987)
7 275-8604 CAP, RBR, 0.50ID 1.18L BLK (Tennant Industrial) 1 (before SN 001987)
8 175-6081 Hose clamp 1 (before SN 001987)
9 275-2184 HOSE, PVC, BRD, 0.75ID 1.03OD 002.0L,CLR (Tennant Industria 1
10 175-0749 HOSE, PVC, BRD, 0.75ID 1.03OD 044.5L,CLR (Tennant Industria 1
11 175-0199 Hose clamp 4
12 175-5209 FITTING, PLSTC, STR, BM08/BM08 (Tennant Industrial) 3
13 275-2230 FITTING, PLSTC, RST, .50OD/.31ID (Tennant Industrial) 3
14 175-9685 Vinyl braided hose .5id .8od 18l 1
15 175-5229 HOSE, AFMKT, PVC, BRD, 0.50ID, 02FT, CLR (Tennant Industria 1
16 175-9681 HOSE, PVC, BRD, 0.50ID 0.73OD 033.0L,CLR (Tennant Industria 1
17 175-3168 P clamp 4
18 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 4
19 999-0355 175-2249 4
20 175-2162 Nylon wire tie 3
21 175-2226 Nylon wire tie 2
22 175-6924 Plastic strainer fitting 1 (after SN 001986)
23 275-8605 Plastic cap fitting 1 (after SN 001986)
24 175-6081 Hose clamp 7 (after SN 001986)
25 275-8606 MANIFOLD, CNTRL, SOLTN (Tennant Industrial) 1 (after SN 001986)
26 175-5209 FITTING, PLSTC, STR, BM08/BM08 (Tennant Industrial) 1 (after SN 001986)
27 175-5233 Plastic fitting 2 (after SN 001986)
28 175-2159 Hose clamp 1 (after SN 001986)
29 275-2183 FITTING, PLSTC, E90, BM12/BM12 (Tennant Industrial) 1 (after SN 001986)
