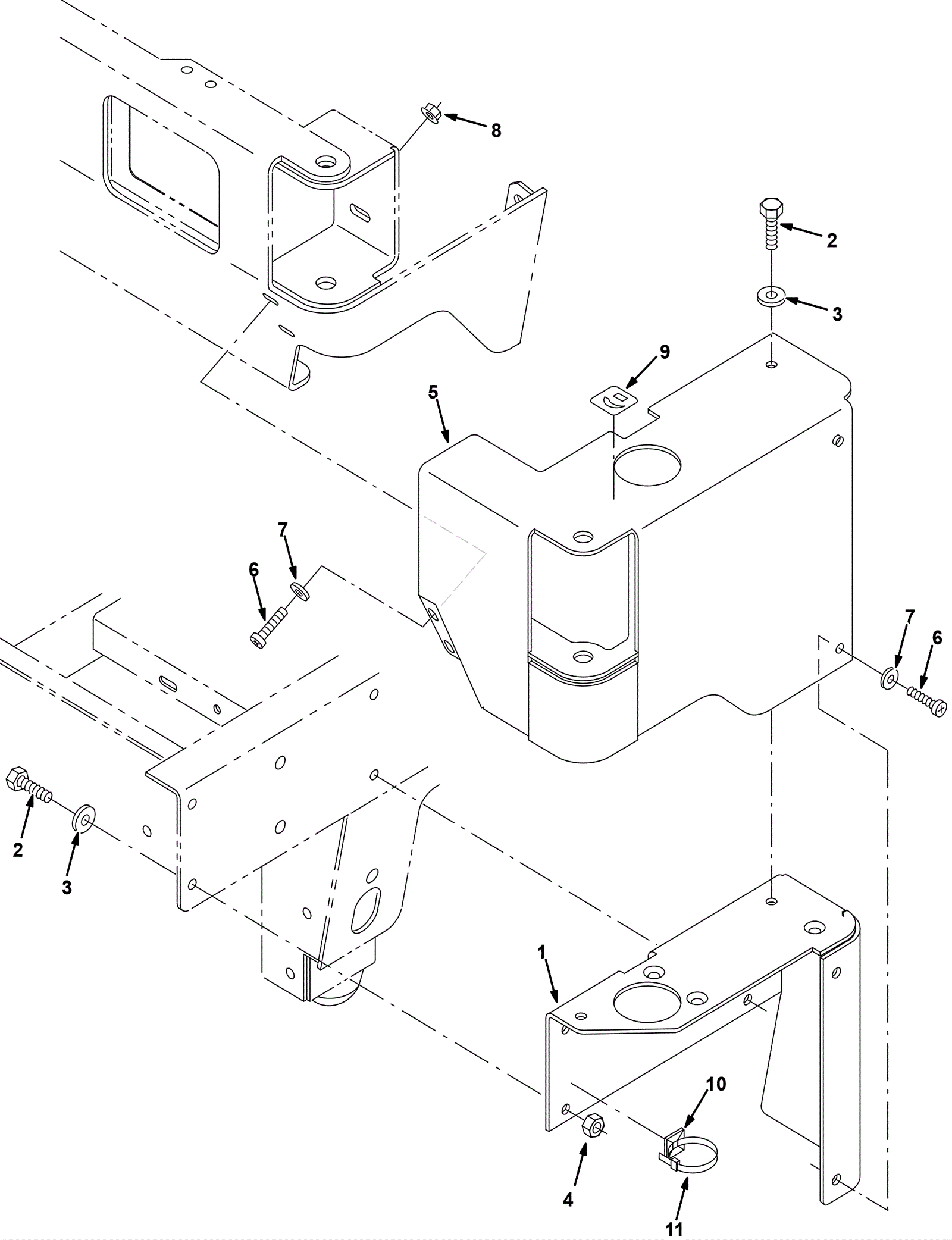

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
675-4212
|
BRACKET, HSNG, BRUSH (Tennant Industrial) |
1 |
(before SN 005000) |
|
1b |
675-4890
|
BRACKET, HSNG, BRUSH, IRON GRAY (Tennant Industrial) |
1 |
(after SN 004999) |
|
2 |
999-1372
|
Bolt M10-1.5 x 25mm hex head stainless steel |
5 |
|
|
3 |
999-0355
|
175-2249 |
5 |
|
|
4 |
999-1120
|
Nut M10-1.5 nylon insert lock stainless steel |
2 |
|
|
5a |
375-5186
|
Brush housing weldment (OBSOLETE) |
1 |
(before SN 005000) |
|
5b |
675-2933
|
HOUSING WLDT, BRUSH, IRON GRAY (Tennant Industrial) |
1 |
(after SN 004999) |
|
6 |
275-0443
|
Screw M8-1.25 x 25 button head stainless steel |
4 |
|
|
7 |
999-0355
|
175-2249 |
4 |
|
|
8 |
999-0665
|
Nut M8-1.25 flange lock |
2 |
|
|
9 |
275-8376
|
LABEL, INFO, BRUSH, SIDE, ADJ (Tennant Industrial) |
1 |
|
|
10 |
175-3233
|
Cable tie mount |
1 |
|
|
11 |
175-2162
|
Nylon wire tie |
2 |
|
|
