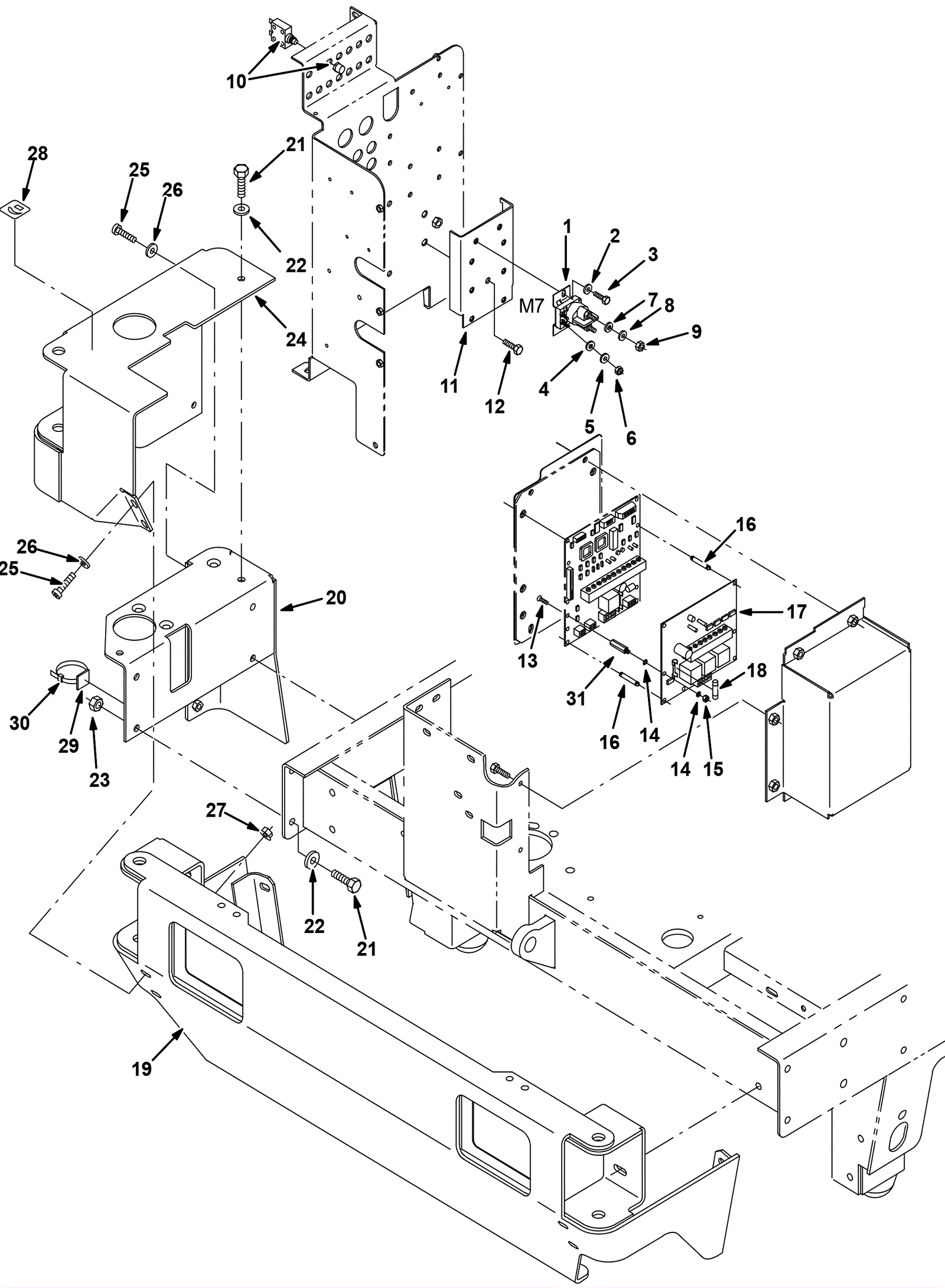

Right Side Brush Bumper and Electrical Assembly

#PartDescription ReqNotesAvailability
1 175-2373 36V contactor 1
2 999-0016 Washer 1/4 flat plain finish 2
3 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 2
4 999-0089 Washer #10 internal star lock zinc plated 2
5 999-0006 Washer 3/16 flat zinc plated 2
6 999-0460 Nut 10-32 hex 2
7 999-0406 Washer 5/16 internal star lock zinc plated 2
8 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
9 175-0849 Nut 5/16-24 hex 2
10 175-0842 15amp circuit breaker 2
11a 275-8538 PLATE, MTG, CONTACTOR (Tennant Industrial) 1 (before SN 005000)
11b 275-2532 Contactor mounting plate (gray) (Tennant Industrial) 1 (after SN 004999)
12 175-3436 Bolt 8mm-1.25 x 40mm hex head 1
13 999-0759 Screw 6-32 x 3/8 flat head phillips zinc plated 2
14 275-2533 Washer #6 internal lock stainless steel (Tennant Industrial) 4
15 175-3224 Nut 6-32 hex lock 2
16 275-8548 STAND-OFF, 1.25, PLSTC (Tennant Industrial) 5
17 275-8546 CIRCUITBOARD, SWPR [8300] (Tennant Industrial) 1 (includes 18)
18 275-8547 FUSE, 010A, GLASS TUBE, 32VDC, 0.25D (Tennant Industrial) 1
19a 675-7186 BUMPER WLDT (Tennant Industrial) 1 (before SN 005000)
19b 675-5687 BUMPER WLDT, IRON GRAY (Tennant Industrial) 1 (after SN 004999)
20a 675-4142 BRACKET, HSNG, BRUSH (Tennant Industrial) 1 (before SN 005000)
20b 675-1196 BRACKET, HSNG, BRUSH, IRON GRAY (Tennant Industrial) 1 (after SN 004999)
21 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel 5
22 999-0355 175-2249 5
23 999-1120 Nut M10-1.5 nylon insert lock stainless steel 2
24a 675-2648 HOUSING WLDT, BRUSH (Tennant Industrial) 1 (before SN 005000)
24b 675-2224 HOUSING WLDT, BRUSH, IRON GRAY (Tennant Industrial) 1 (after SN 004999)
25 275-0443 Screw M8-1.25 x 25 button head stainless steel 4
26 999-0355 175-2249 4
27 999-0665 Nut M8-1.25 flange lock 2
28 275-8376 LABEL, INFO, BRUSH, SIDE, ADJ (Tennant Industrial) 1
29 175-3233 Cable tie mount 1
30 175-2162 Nylon wire tie 2
31 275-8549 STAND-OFF, 1.25, METAL (Tennant Industrial) 2
