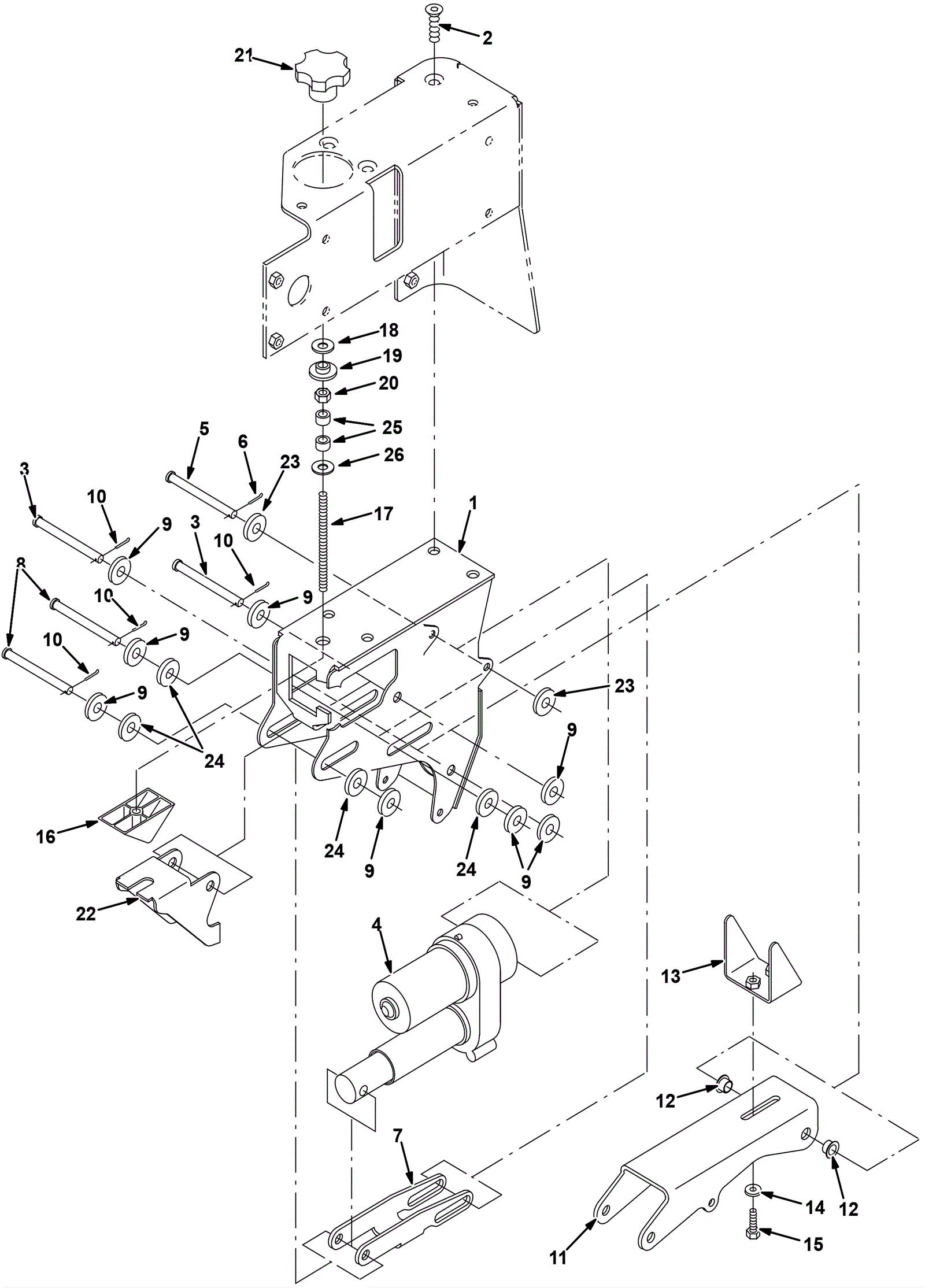

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-7985
|
Side brush housing weldment (gray) (Tennant Industrial) |
1 |
|
|
2 |
475-0452
|
SCREW, FLT, SOC, M10 |
3 |
|
|
3 |
175-2116
|
Clevis pin |
2 |
|
|
4 |
175-2590
|
Stroke actuator |
1 |
|
|
5 |
275-3031
|
PIN, CLEVIS, 0.37D X 4.00L (Tennant Industrial) |
1 |
|
|
6 |
175-6176
|
Cotter pin |
1 |
|
|
7 |
275-7986
|
Iron bracket (gray) (Tennant Industrial) |
1 |
|
|
8 |
275-8369
|
PIN, CLEVIS, 0.50D X 4.00L (Tennant Industrial) |
2 |
|
|
9 |
999-0114
|
Washer 1/2 SAE flat |
8 |
|
|
10 |
175-3281
|
Cotter pin |
4 |
|
|
11 |
275-7987
|
Iron channel (gray) (Tennant Industrial) |
1 |
|
|
12 |
175-3335
|
Flanged bushing |
2 |
|
|
13 |
275-7988
|
Iron bracket (gray) (Tennant Industrial) |
1 |
|
|
14 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
|
|
15 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
2 |
|
|
16 |
275-8372
|
BLOCK, ADJ (Tennant Industrial) |
1 |
|
|
17 |
275-0142
|
SHAFT, THRD (Tennant Industrial) |
1 |
|
|
18 |
275-8373
|
WASHER, FLAT, 0.81B 1.24D .03, STL, PL (Tennant Industrial) |
1 |
|
|
19 |
175-3287
|
Flanged bushing |
1 |
|
|
20 |
999-1281
|
Nut M10-1.25 hex fine thread |
1 |
|
|
21 |
275-0141
|
KNOB, STAR, 2.50D 5EAR 1.5L .38-16,PLSTC (Tennant Industria |
1 |
|
|
22 |
275-7989
|
Iron pivot bracket (gray) (Tennant Industrial) |
1 |
|
|
23 |
999-0120
|
Washer 3/8 SAE flat |
2 |
|
|
24 |
175-0784
|
Thrust bearing |
4 |
|
|
25 |
175-2814
|
Spacer |
2 |
(right) |
|
26 |
999-0032
|
Washer 3/8 USS flat plain finish |
1 |
(right) |
|
