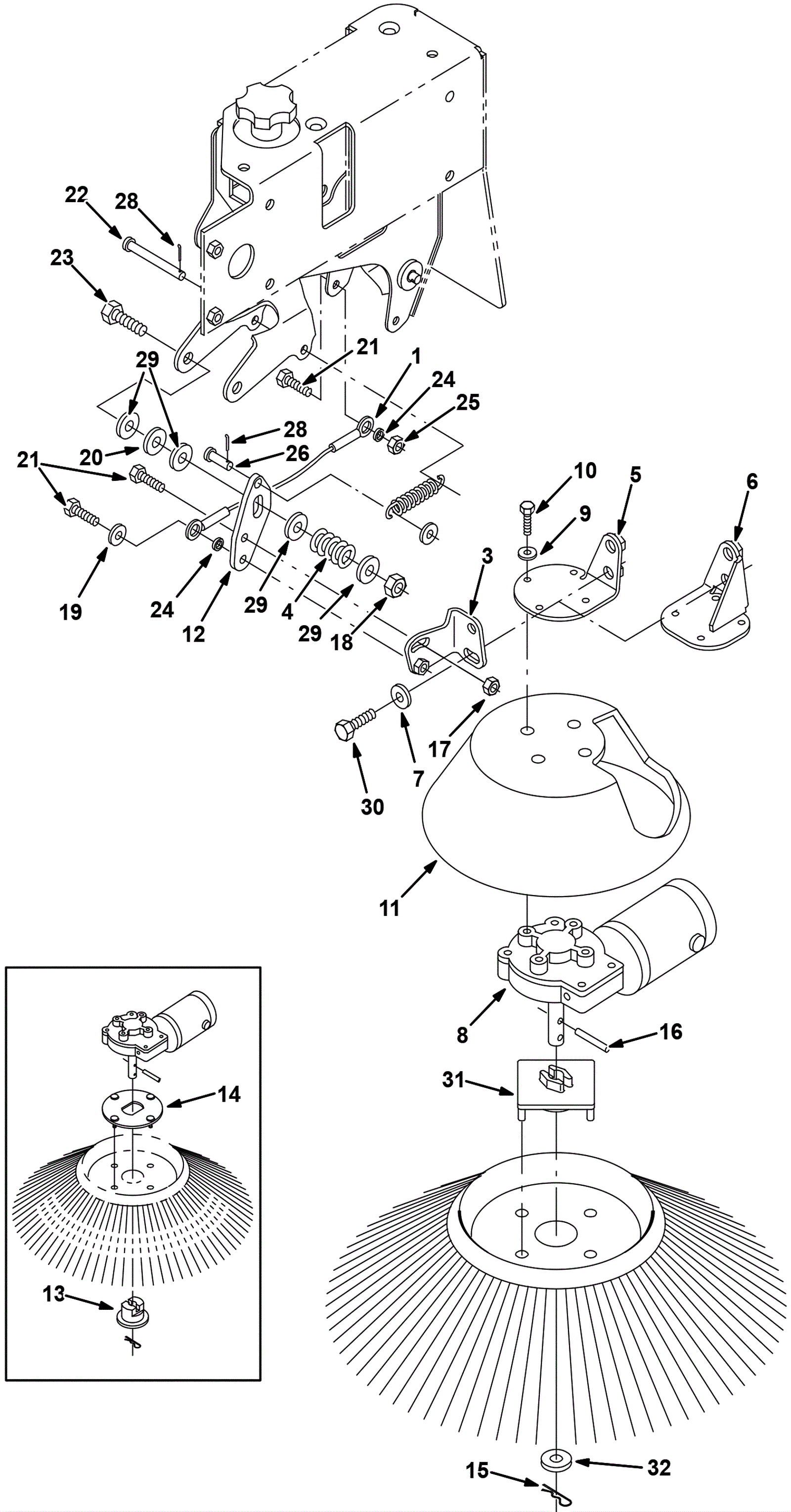

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-0833
|
Cable |
1 |
|
|
2 |
275-0154
|
SPRING, EXTN, 1.10OD 0.15WIR 03.2L (Tennant Industrial) |
1 |
|
|
3a |
275-7978
|
Iron motor mounting bracket (gray) (Tennant Industrial) |
2 |
(right) |
|
3b |
275-2550
|
Motor mounting bracket (gray) (Tennant Industrial) |
2 |
(left) |
|
4 |
275-0157
|
SPRING, DSL, 1.00OD 0.50ID 1.25L (Tennant Industrial) |
2 |
|
|
5a |
275-7979
|
Iron motor mounting bracket (gray) (Tennant Industrial) |
1 |
(right) |
|
5b |
275-2551
|
Motor mounting bracket (gray) (Tennant Industrial) |
1 |
(left) |
|
6 |
575-8054
|
BRACKET, MTG, MOTOR [1000] (Tennant Industrial) |
1 |
(right) |
|
7 |
999-0032
|
Washer 3/8 USS flat plain finish |
2 |
|
|
8a |
275-0108
|
36V sidebrush motor |
1 |
(includes 8c-8f) (right) |
|
8b |
275-4683
|
Electric motor 36VDC .08hp |
1 |
(includes 8c-8f) (left) |
|
8c |
275-0109
|
Carbon brush assembly |
1 |
|
|
8d |
175-9270
|
Brush cap |
2 |
|
|
8e |
175-9271
|
Brush holder |
2 |
|
|
8f |
175-9272
|
Clip |
2 |
|
|
9 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
|
|
10 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
4 |
|
|
11 |
275-8358
|
GUARD, BRUSH, SIDE, 10.5D 3.8H (Tennant Industrial) |
1 |
|
|
12 |
275-7980
|
Iron plate (gray) (Tennant Industrial) |
1 |
|
|
13 |
275-8360
|
HUB, ADAPTER, BRUSH, 1.7D 0.6B 1.4L (Tennant Industrial) |
1 |
(before SN 002347) |
|
14 |
275-8361
|
PLATE, ADAPTER, BRUSH (Tennant Industrial) |
1 |
(before SN 002347) |
|
15 |
175-2106
|
Cotter hair pin |
1 |
|
|
16 |
275-1660
|
PIN, ROLL, .250D X 2.00L, .250/.256 (Tennant Industrial) |
1 |
|
|
17 |
999-0665
|
Nut M8-1.25 flange lock |
1 |
|
|
18 |
999-0519
|
Nut M12-1.75 nylon insert lock stainless steel |
1 |
|
|
19 |
999-0024
|
Washer 5/16 flat stainless steel |
1 |
|
|
20 |
175-3354
|
Thrust washer |
1 |
|
|
21 |
999-0581
|
Bolt M8-1.25 x 25mm hex head full thread zinc |
3 |
|
|
22 |
275-8362
|
PIN, CLEVIS, 0.37D X 3.25L (Tennant Industrial) |
1 |
|
|
23 |
999-1280
|
Screw M12-1.75 x 80mm hex |
1 |
|
|
24 |
175-0550
|
Sleeve |
2 |
|
|
25 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
1 |
|
|
26 |
175-9085
|
PIN, CLEVIS, 0.37D X 0.62L (Tennant Industrial) |
1 |
|
|
27 |
999-0355
|
175-2249 |
1 |
|
|
28 |
175-6176
|
Cotter pin |
2 |
|
|
29 |
999-0114
|
Washer 1/2 SAE flat |
4 |
|
|
30 |
275-0025
|
Screw M10-1.5 x 25 hex head 8.8 |
2 |
(right) |
|
31 |
275-7983
|
Brush adapter plate (Tennant Industrial) |
1 |
(after SN 002346) |
|
32 |
275-7984
|
Washer (Tennant Industrial) (OBSOLETE) |
1 |
(after SN 002346) |
|
N/S |
275-0025
|
Screw M10-1.5 x 25 hex head 8.8 |
1 |
(left) |
|
