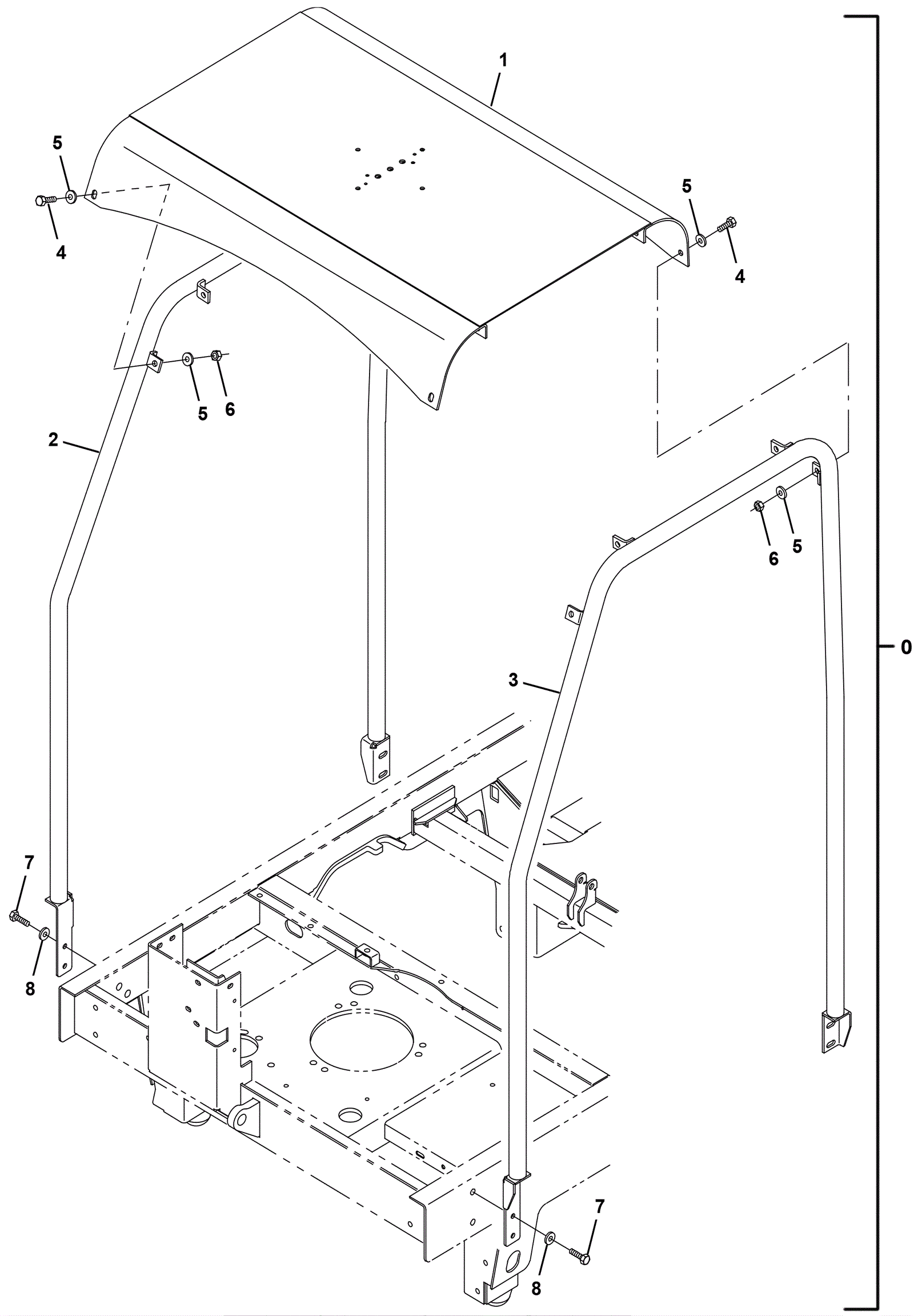

| # | Part | Description |
Req | Notes | Availability |
|---|
0a |
275-2546
|
Overhead guard kit (gray) (Tennant Industrial) |
1 |
(includes 1a, 2a, 3a, 4-8) (after SN 004999) |
|
0b |
275-8580
|
OHG KIT, CI [7300/8300] (Tennant Industrial) |
1 |
(includes 1b, 2b, 3b, 4-8) (before SN 005000) |
|
1a |
275-2547
|
Top guard weldment (gray) (Tennant Industrial) |
1 |
(after SN 004999) |
|
1b |
275-8581
|
GUARD WLDT, OPRTR, TOP (Tennant Industrial) |
1 |
(before SN 005000) |
|
2a |
275-2548
|
Right hand guard tube weldment (Tennant Industrial) |
1 |
(after SN 004999) |
|
2b |
275-8582
|
TUBE, OHG, OPRTR, RH, PNTD (Tennant Industrial) |
1 |
(before SN 005000) |
|
3a |
275-2549
|
Left hand guard tube weldment (Tennant Industrial) |
1 |
(after SN 004999) |
|
3b |
275-8583
|
TUBE, OHG, OPRTR, LH, PNTD (Tennant Industrial) |
1 |
(before SN 005000) |
|
4 |
175-6774
|
Screw M10-1 1/2 x 20 hex |
8 |
|
|
5 |
999-0032
|
Washer 3/8 USS flat plain finish |
16 |
|
|
6 |
999-1120
|
Nut M10-1.5 nylon insert lock stainless steel |
8 |
|
|
7 |
999-1372
|
Bolt M10-1.5 x 25mm hex head stainless steel |
8 |
|
|
8 |
999-0355
|
175-2249 |
8 |
|
|
