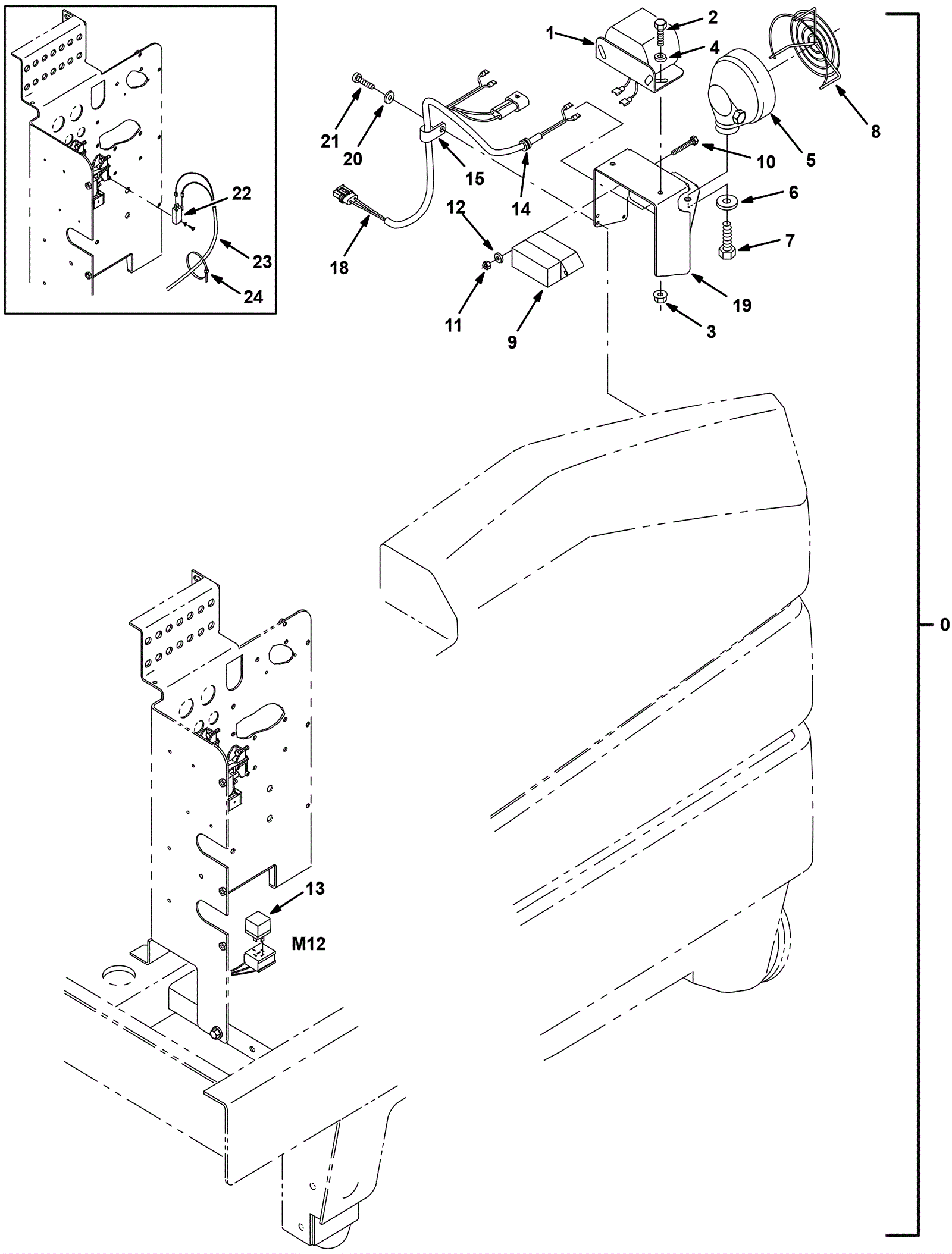

Backup Alarm Assembly

#PartDescription ReqNotesAvailability
0a 275-2544 Backup alarm kit (gray) (Tennant Industrial) 1 (includes 1-18, 19a,20-21) (after SN 004999)
0b 275-8568 ALARM KIT, BACKUP / A/V, CI [7300] (Tennant Industrial) 1 (includes 1-18, 19b, 20-24) (before SN 005000)
1 275-2542 Backup alarm assembly 1
2 999-0502 Bolt M6-1 x 20mm hex head full thread zinc 2
3 999-6694 Nut M6-1 hex serrated flange stainless steel 2
4 999-0006 Washer 3/16 flat zinc plated 2
5a 275-8570 LIGHT, SPOT, 36VDC, 60WATT, RWK 72173 (Tennant Industrial) 1 (includes 5b)
5b 275-4235 HEADLIGHT, 36VDC, 60WATT 1.7A (Tennant Industrial) 1
6 999-0114 Washer 1/2 SAE flat 1
7 999-0815 Screw 1/2-13 x 3/4 hex hot dipped galvanized 1
8 275-8572 GUARD, LIGHT (Tennant Industrial) 1
9 275-8573 FLASHER, 12/48VDC 5A [6309/12-48V] (Tennant Industrial) 1
10 275-0417 Screw M6-1 x 50 hex head 2
11 999-0469 Nut M6-1 nylon insert lock zinc plated 2
12 999-0016 Washer 1/4 flat plain finish 2
13 175-2265 36V 5amp relay 1
14 175-4401 GROMMET, RBR, 0.38ID, F/0.5H, .12 MATL (Tennant Industrial) 1
15 175-5421 P clamp 1
16 999-0089 Washer #10 internal star lock zinc plated 2
17 N/A Not available 1 (spring)
18 275-8571 HARNESS, ALARM, BACKUP, SHRD [7300] (Tennant Industrial) 1
19a 275-2545 Iron mounting bracket (gray) (Tennant Industrial) 1 (after SN 004999)
19b 275-8574 BRACKET, MTG (Tennant Industrial) 1 (before SN 005000)
20 999-0006 Washer 3/16 flat zinc plated 5
21 999-1352 Screw 10-14 x 3/4 phillips pan head plastic thread rolling 6
22 275-8575 SWITCH KIT, MICRO (Tennant Industrial) 1 (before SN 001706)
23 275-8576 HARNESS, JUMPER, REVERSE SWITCH (Tennant Industrial) 1 (before SN 001706)
24 175-2162 Nylon wire tie 4 (before SN 001706)
