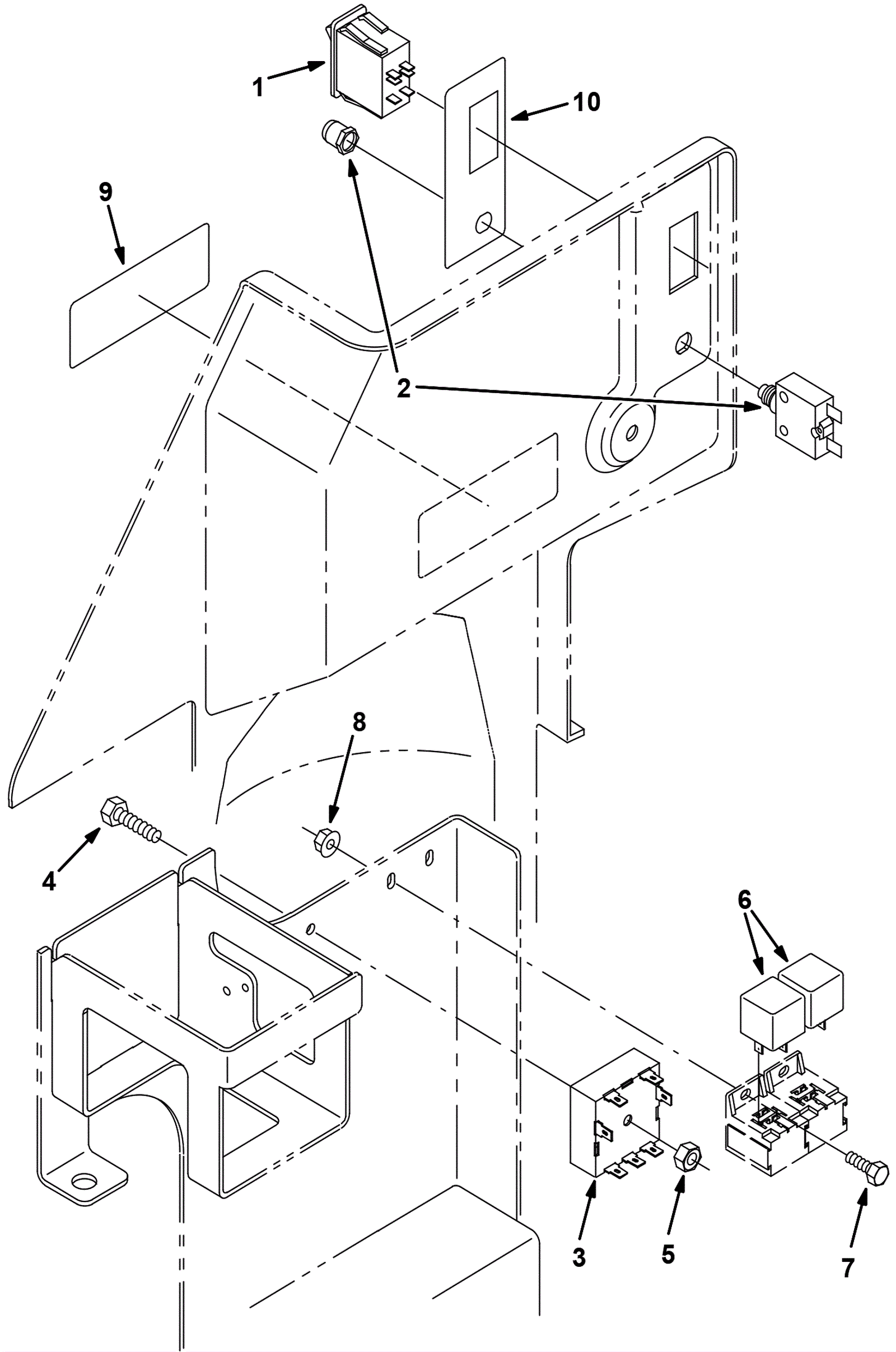

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-8550
|
SWITCH, ROCKER, PRGRSV (Tennant Industrial) |
1 |
|
|
2a |
175-2336
|
10amp circuit breaker |
1 |
(before SN 003747) |
|
2b |
175-2557
|
5amp circuit breaker |
1 |
(after SN 003746) |
|
3 |
275-2534
|
Timer (Tennant Industrial) |
1 |
(before SN 003747) |
|
4 |
175-6758
|
Screw M6-1 x 30mm hex head |
1 |
(before SN 003747) |
|
5 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
1 |
(before SN 003747) |
|
6 |
175-2265
|
36V 5amp relay |
2 |
|
|
7a |
175-0837
|
Bolt M5-.8 x 16mm hex head |
2 |
(before SN 003747) |
|
7b |
175-0852
|
Bolt 5mm-.8 x 12 hex head |
1 |
(after SN 003746) |
|
8a |
275-8551
|
Nut M5-.8 x 16mm hex flange (Tennant Industrial) |
2 |
(before SN 003747) |
|
8b |
999-0006
|
Washer 3/16 flat zinc plated |
1 |
(after SN 003746) |
|
9 |
175-5223
|
FaST decal |
1 |
(before SN 003747) |
|
10 |
275-8552
|
LABEL, SWITCH [7300/8300 FaST] (Tennant Industrial) |
|
|
|
