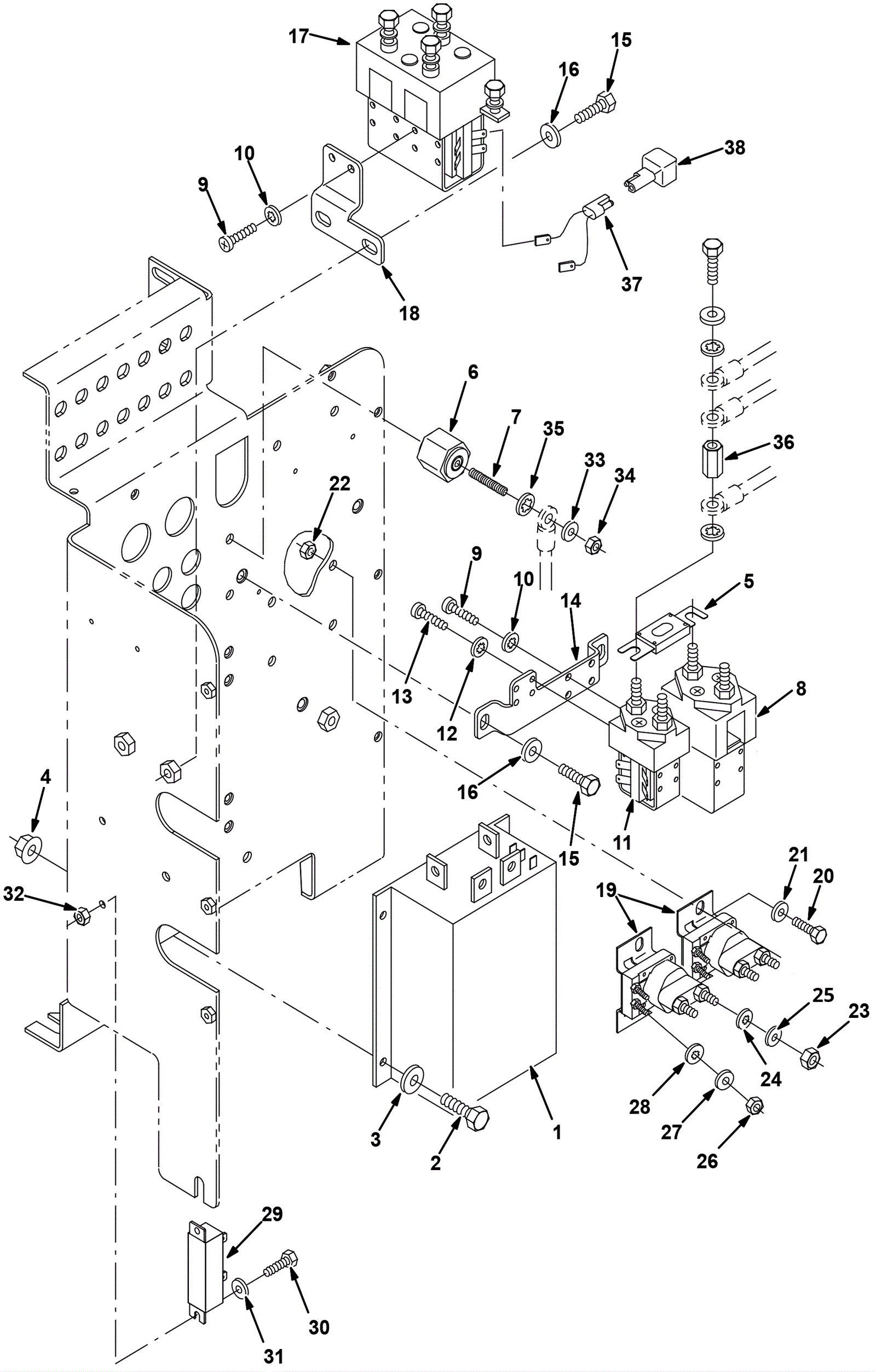

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-0850
|
CONTROLLER, MOTOR, 36VDC 275A [CURT1204] (Tennant Industria |
1 |
|
|
2 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
4 |
|
|
3 |
999-0016
|
Washer 1/4 flat plain finish |
4 |
|
|
4 |
999-6694
|
Nut M6-1 hex serrated flange stainless steel |
4 |
|
|
5 |
175-0847
|
FUSE, 150A, 0.88 2.4L [SLO-BLO] (Tennant Industrial) |
1 |
|
|
6 |
175-3226
|
Insulated stand off |
1 |
|
|
7 |
175-3227
|
Threaded rod |
1 |
|
|
8 |
275-8539
|
CONTACTOR, 36VDC, 200A, SPST (Tennant Industrial) |
1 |
|
|
9 |
175-0598
|
Screw 5mm-.8 x 6 pan head |
6 |
|
|
10 |
999-1026
|
Washer #10 internal lock stainless steel |
6 |
|
|
11 |
275-8540
|
CONTACTOR, 36VDC, NO (Tennant Industrial) |
1 |
|
|
12 |
999-1083
|
Washer #8 internal star lock stainless steel |
4 |
|
|
13 |
999-1283
|
Screw M4-.7 x 6mm pan head phillips zinc |
4 |
|
|
14a |
275-8542
|
BRACKET, MTG, CONTROLLER, SGL (Tennant Industrial) |
1 |
(between SN 001706 and SN 004999) |
|
14b |
275-2530
|
Controller mounting bracket (gray) (Tennant Industrial) |
1 |
(after SN 004999) |
|
15 |
175-4963
|
Bolt M6-1 x 20mm hex head |
4 |
|
|
16 |
999-0024
|
Washer 5/16 flat stainless steel |
4 |
|
|
17 |
275-8543
|
CONTACTOR, 36VDC, 200A, DPDT (Tennant Industrial) |
1 |
|
|
18a |
275-8544
|
BRACKET, MTG, RELAY (Tennant Industrial) |
1 |
(between SN 001706 and SN 004999) |
|
18b |
275-2531
|
Relay mounting bracket (gray) (Tennant Industrial) |
1 |
(after SN 004999) |
|
19 |
175-2373
|
36V contactor |
2 |
|
|
20 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
4 |
|
|
21 |
999-0016
|
Washer 1/4 flat plain finish |
4 |
|
|
22 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
4 |
|
|
23 |
175-0849
|
Nut 5/16-24 hex |
4 |
|
|
24 |
999-0406
|
Washer 5/16 internal star lock zinc plated |
4 |
|
|
25 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
4 |
|
|
26 |
999-0460
|
Nut 10-32 hex |
4 |
|
|
27 |
999-0006
|
Washer 3/16 flat zinc plated |
4 |
|
|
28 |
999-0089
|
Washer #10 internal star lock zinc plated |
4 |
|
|
29 |
175-0851
|
RESISTOR, 040.000HM, 0040WATT (Tennant Industrial) |
1 |
|
|
30 |
175-0852
|
Bolt 5mm-.8 x 12 hex head |
2 |
|
|
31 |
999-0998
|
Washer #10 flat stainless steel |
2 |
|
|
32 |
175-2894
|
Nut M5-.8 hex nylon locking |
2 |
|
|
33 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
1 |
|
|
34 |
999-0190
|
Nut 1/4-20 hex plain finish |
1 |
|
|
35 |
999-0238
|
Washer 1/4 internal star lock zinc plated |
1 |
|
|
36 |
275-6131
|
Nut M8 x 1.25 hex coupling (Tennant Industrial) |
1 |
|
|
37 |
275-0284
|
HARNESS, SWITCH, KEY, DIODE [515] (Tennant Industrial) |
2 |
|
|
38 |
175-2216
|
Diode plug |
2 |
|
|
