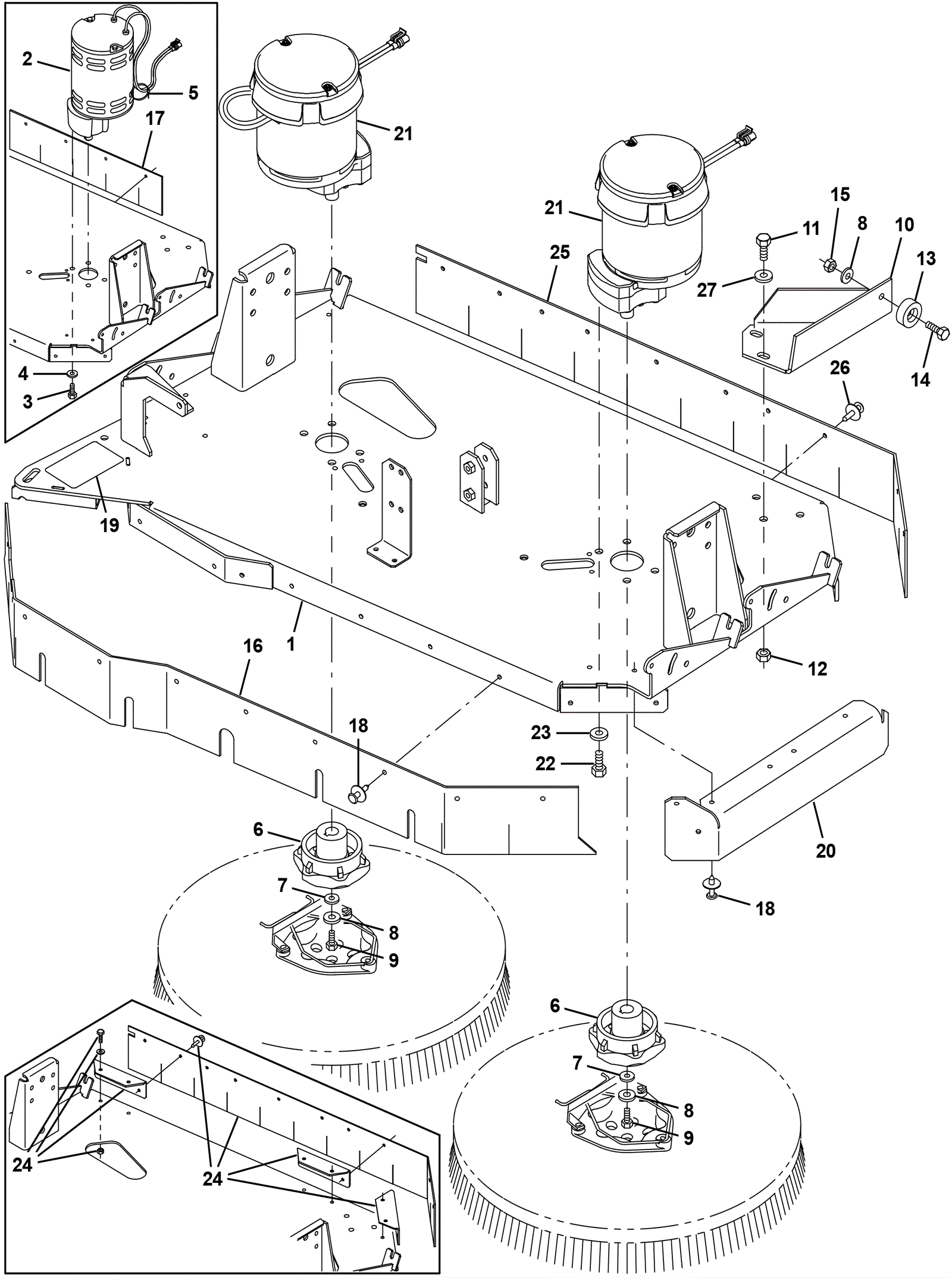

Scrub Head Frame Assembly - Disc - Max Pro 1000

#PartDescription ReqNotesAvailability
1a 275-7971 Brush frame weldment (gray) (OBSOLETE) 1 (before SN 006110)
1b 275-2459 Frame weldment (gray) (Tennant Industrial) 1 (after SN 006109)
2a 275-2460 1Hp 36V motor (Tennant Industrial) 2 (standard) (before SN 006028)
2b 275-2461 1.5Hp 36V motor (Tennant Industrial) 2 (heavy duty) (before SN 006051)
3 175-0729 SCREW, HEX, .38-16 X 1.00, NL (Tennant Industrial) 8 (before SN 006028)
4 999-0355 175-2249 8 (before SN 006028)
5 175-2202 Nylon wire tie 2 (before SN 006028)
6 175-9525 Brush drive hub 2
7 999-1407 Washer 5/16 belleville 2
8 999-0355 175-2249 3
9 999-0424 Bolt 5/16-18 x 1 hex head stainless steel 2
10 N/A Not available 1 (stop frame bracket)
11 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel 3
12 999-1120 Nut M10-1.5 nylon insert lock stainless steel 3
13 175-0733 BUMPER, PYE, 1.50D 0.56TH 0.33H (Tennant Industrial) 1
14 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 1
15 999-0496 Nut M8-1.25 nylon insert lock stainless steel 1
16 175-0734 SKIRT, RBR, .12, 04.50W 47.19L, 10/ HOLE (Tennant Industria 1
17 175-0735 SKIRT, RBR, .12, 04.50W 15.66L, 03/ HOLE (Tennant Industria 1 (before SN 006110)
18 175-3378 Rivet 1/4 x 57/64 plastic 24
19 175-0736 LABEL SET, INFO/HZRD [MAXPRO] (Tennant Industrial) 1
20 175-0737 SKIRT, RBR, .12, 04.50W 17.25L, 05/ HOLE (Tennant Industria 2
21a 275-2460 1Hp 36V motor (Tennant Industrial) 2 (after SN 006027)
21b 275-2461 1.5Hp 36V motor (Tennant Industrial) 2 (after SN 006050)
22 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 8 (after SN 006027)
23 175-7920 Washer M8 flat stainless steel 8 (after SN 006027)
24 275-2462 Rear skirt kit (Tennant Industrial) 1 (before SN 006110)
25 275-2463 Rubber skirt (Tennant Industrial) 1 (after SN 006109)
26 175-3378 Rivet 1/4 x 57/64 plastic 6 (after SN 006109)
27 999-0355 175-2249 3
