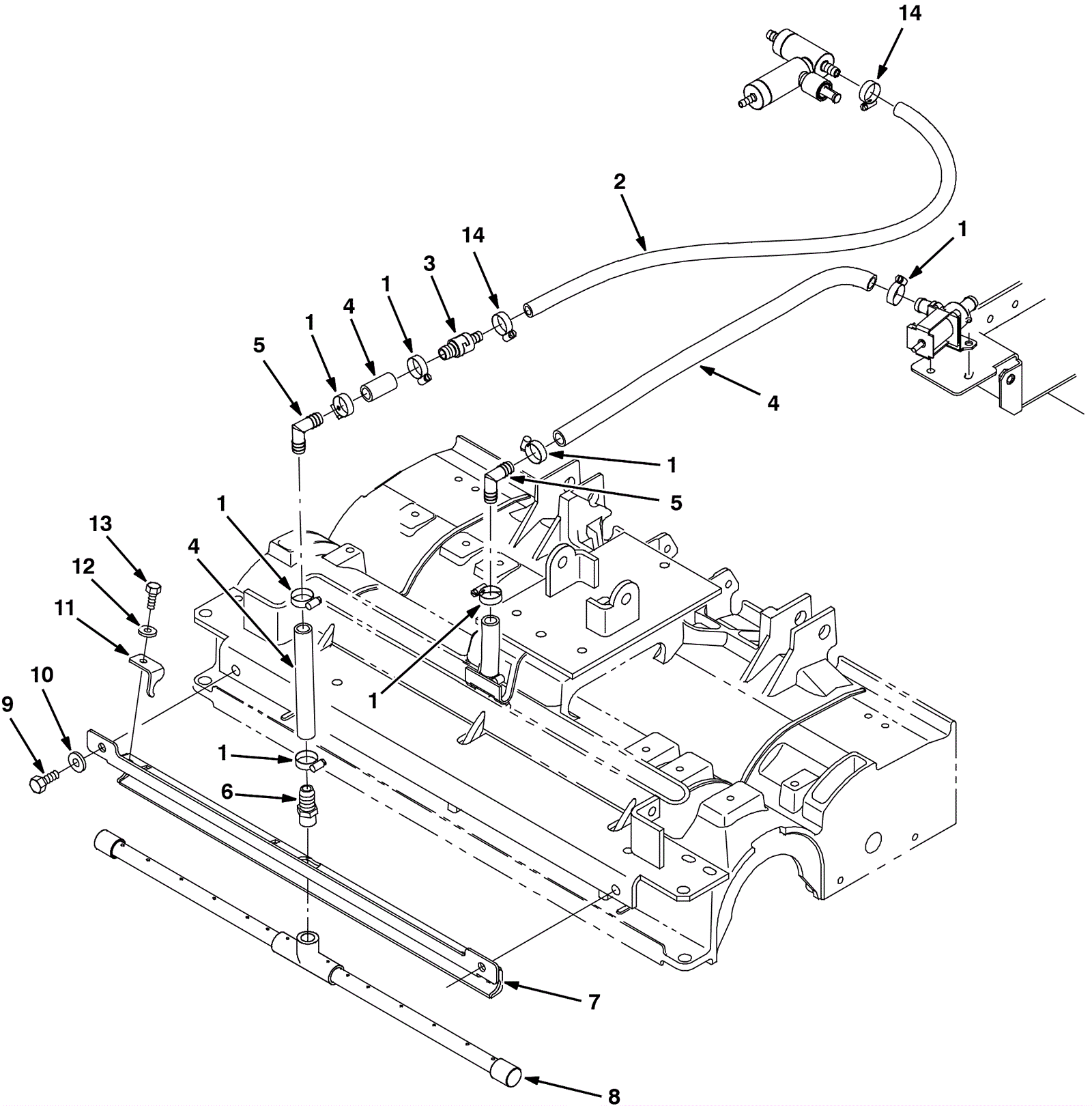

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
175-6081
|
Hose clamp |
$4.84
|
7 |
(qty 9 for 32 inch) |
ships same day |
2 |
275-3317
|
PVC hose (Tennant Industrial) (OBSOLETE) |
$9.47
|
1 |
|
usually ships 1-5 days |
3 |
275-5350
|
Check valve |
$97.57
|
1 |
|
usually ships 1-5 days |
4 |
175-6957
|
HOSE, PVC, BRD, 0.50ID 0.73OD 060.0L,CLR (Tennant Industria |
$34.51
|
1 |
|
usually ships 1-5 days |
5 |
175-5233
|
Plastic fitting |
$7.59
|
2 |
|
usually ships 10-16 days |
6 |
175-5234
|
Plastic fitting |
$6.05
|
1 |
|
usually ships 10-16 days |
7a |
175-5239
|
28 inch spray bar bracket weldment |
$121.33
|
1 |
(28 inch) |
usually ships 1-5 days |
7b |
175-5235
|
32 and 36 inch spray bar bracket weldment |
$125.73
|
1 |
(32 inch) |
usually ships 1-5 days |
8a |
175-5238
|
28 inch spray tube assembly |
$352.11
|
1 |
(28 inch) |
usually ships 1-5 days |
8b |
175-5232
|
32 inch spray tube assembly |
$249.37
|
1 |
(32 inch) |
usually ships 1-5 days |
9 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
$1.85
|
2 |
|
ships same day |
10 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
$0.99
|
2 |
|
ships same day |
11 |
175-5236
|
Spray bar bracket |
$15.51
|
3 |
|
usually ships 1-5 days |
12 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
$0.99
|
3 |
|
ships same day |
13 |
999-9116
|
Screw M6-1 x 12mm hex head stainless steel |
$0.99
|
3 |
|
ships same day |
14 |
175-3594
|
Hose clamp |
$4.88
|
2 |
(28 inch) |
usually ships 10-16 days |
