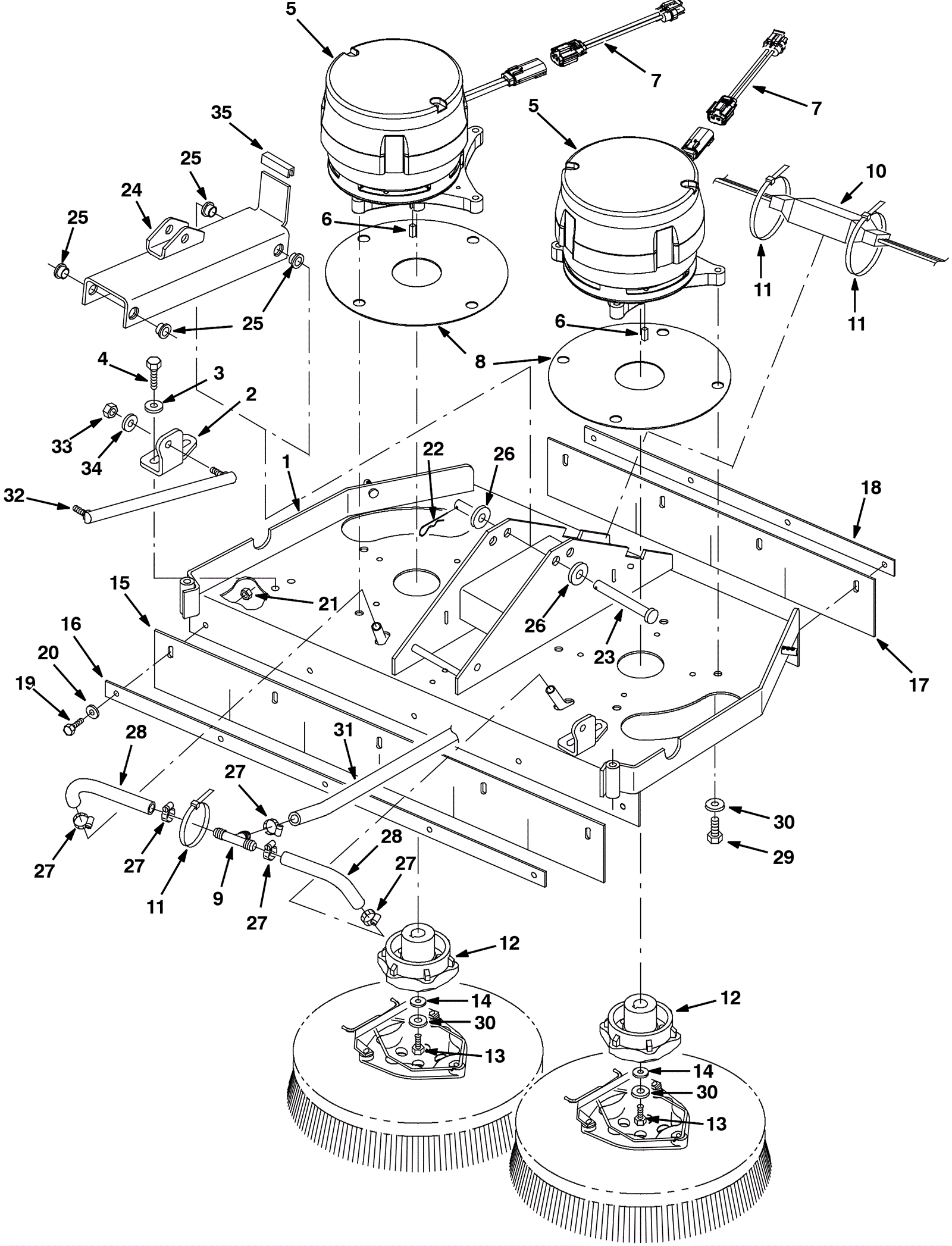

7080 Drive Motor Assembly - Disk - 28 inch - after SN 10541284

#PartDescriptionPriceReqNotesAvailability
1 275-5340 28 inch head kit (OBSOLETE) $690.80 1 (includes 2-4) (after SN 10188432) usually ships 1-5 days
2 175-4988 Linkage bracket $33.44 2 usually ships 1-5 days
3 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 4 ships same day
4 175-4989 Screw 10 x 1 1/2 x 20 stainless steel $6.93 4 usually ships 1-5 days
5a 375-1539 Drive motor $1,186.46 2 (includes 5b) (after SN 10541284) usually ships 5-16 days
5b 275-5341 Carbon brush (pkg of 4) $114.18 2 (after SN 10541284) usually ships 5-16 days
6 175-5356 Square keyway $3.30 2 (after SN 10541284) ships same day
7 275-5342 Motor harness adapter $40.70 2 (after SN 10541284) usually ships 5-16 days
8 275-5343 Gasket (Tennant Industrial) $11.19 2 (after SN 10541284) usually ships 5-16 days
9 175-3329 Plastic tee fitting $5.83 1 usually ships 5-16 days
10 275-2443 Wiring harness (OBSOLETE) $148.58 1 usually ships 5-16 days
11 175-2226 Nylon wire tie $3.30 3 ships same day
12 175-9525 Brush drive hub $372.32 2 ships same day
13 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel $0.99 2 ships same day
14 999-1407 Washer 5/16 belleville $3.04 2 ships same day
15 175-3330 Front skirt 28 inch $23.32 1 usually ships 5-16 days
16 175-3331 28 inch (700mm) front skirt retainer strap $34.87 1 usually ships 1-5 days
17 175-3332 Rear skirt 28 inch $14.08 1 usually ships 5-16 days
18 175-3333 28 inch (700mm) rear skirt retainer strap $31.57 1 usually ships 1-5 days
19 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 9 ships same day
20 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 9 ships same day
21 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 9 ships same day
22 175-2106 Cotter hair pin $3.30 1 ships same day
23 175-2116 Clevis pin $5.83 1 usually ships 5-16 days
24 175-3334 Lifting weldment $101.20 1 usually ships 1-5 days
25 175-3335 Flanged bushing $15.40 4 usually ships 1-5 days
26 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
27 175-6081 Hose clamp $4.84 5 ships same day
28 175-5249 Hose 1/2 x 1 foot (Tennant Industrial) $29.23 2 usually ships 5-16 days
29 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel $0.99 8 ships same day
30 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 10 ships same day
31 175-3326 Vinyl hose $92.29 1 usually ships 1-5 days
32 175-5392 Balljoint link 10 x 1 1/2 $90.20 2 usually ships 1-5 days
33 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 2 ships same day
34 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
35 175-3336 Rubber trim molding $17.49 1 usually ships 1-5 days
