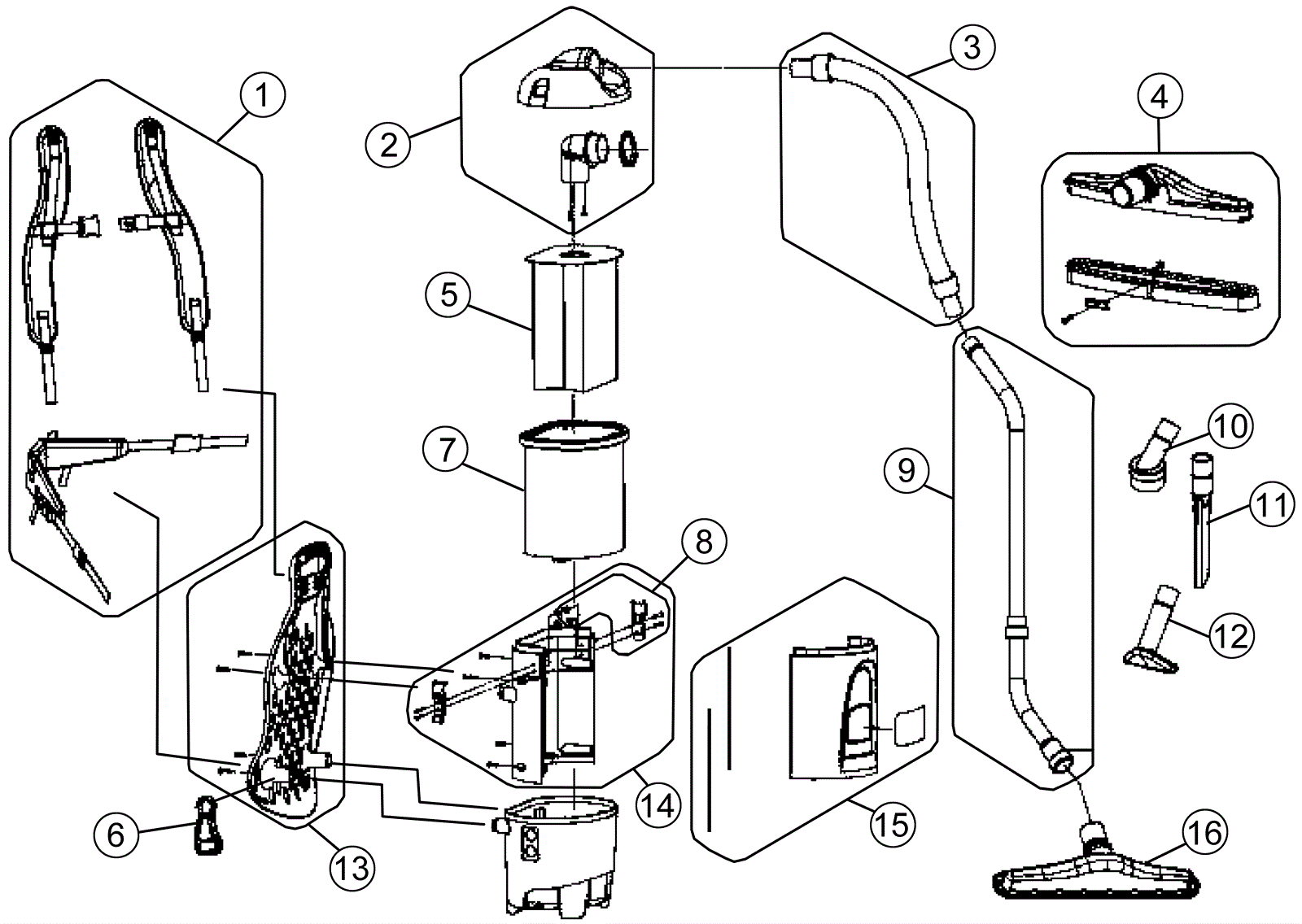

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
275-6216
|
Backpack harness |
1 |
|
|
2 |
275-6217
|
Housing cover |
1 |
(includes hardware) |
|
3a |
275-6212
|
Stretch vacuum hose |
1 |
(OEM) |
|
3b |
991-9294
|
Stretch vacuum hose |
1 |
(NON-OEM) |
|
4 |
275-6218
|
Floor pickup tool |
1 |
(includes hardware) |
|
5a |
275-6207
|
6 quart paper vacuum bag (pkg of 12) |
1 |
(V-BP-6) (OEM) |
|
5b |
275-6208
|
6 quart case of paper vacuum bags (16 pkgs of 12) |
1 |
(V-BP-6) (OEM) |
|
5c |
991-9042
|
6 quart paper vacuum bags (pkg of 10) |
1 |
(V-BP-6) (NON-OEM) |
|
5d |
275-6409
|
10 quart paper vacuum bag (pkg of 12) |
1 |
(V-BP-10) (OEM) |
|
5e |
275-6410
|
10 quart case of paper vacuum bag (16 pkgs of 12) |
1 |
(V-BP-10) (OEM) |
|
5f |
991-9122
|
10 quart paper bag (pkg of 10) |
1 |
(V-BP-10) (NON-OEM) |
|
6 |
275-2340
|
Clip (OBSOLETE) |
1 |
|
|
7a |
275-6209
|
Cloth vacuum bag (6 quart) |
1 |
(V-BP-6) |
|
7b |
275-6412
|
Cloth vacuum bag (10 quart) |
1 |
(V-BP-10) |
|
8 |
275-6219
|
Latch |
1 |
(includes hardware) |
|
9a |
275-6220
|
2 piece double bend wand |
1 |
(OEM) (includes 9c) |
|
9b |
199-0104
|
1 1/2 x 56 inch one-piece two-bend aluminum wand |
1 |
(NON-OEM) |
|
9c |
275-6382
|
Locking collar |
1 |
|
|
10 |
275-6221
|
Dust brush tool |
1 |
|
|
11 |
275-6222
|
Crevice tool |
1 |
|
|
12 |
275-6223
|
Upholstery tool |
1 |
|
|
13 |
275-6224
|
Backrest |
1 |
(includes hardware) |
|
14a |
275-6225
|
Rear cover (6 quart) |
1 |
(V-BP-6) (includes 8) |
|
14b |
275-6413
|
Rear cover (10 quart) |
1 |
(V-BP-10) (includes 8) |
|
15a |
275-6226
|
Front cover with decal |
1 |
(V-BP-6) |
|
15b |
275-6411
|
Front cover with decal |
1 |
(V-BP-10) |
|
16 |
275-6227
|
Carpet pickup tool |
1 |
|
|
N/S |
275-8006
|
Warning decal |
1 |
|
|
N/S |
475-1459
|
LABEL, LOGO, 03.9L DUAL [TENNANT/NOBLES] |
1 |
|
|
