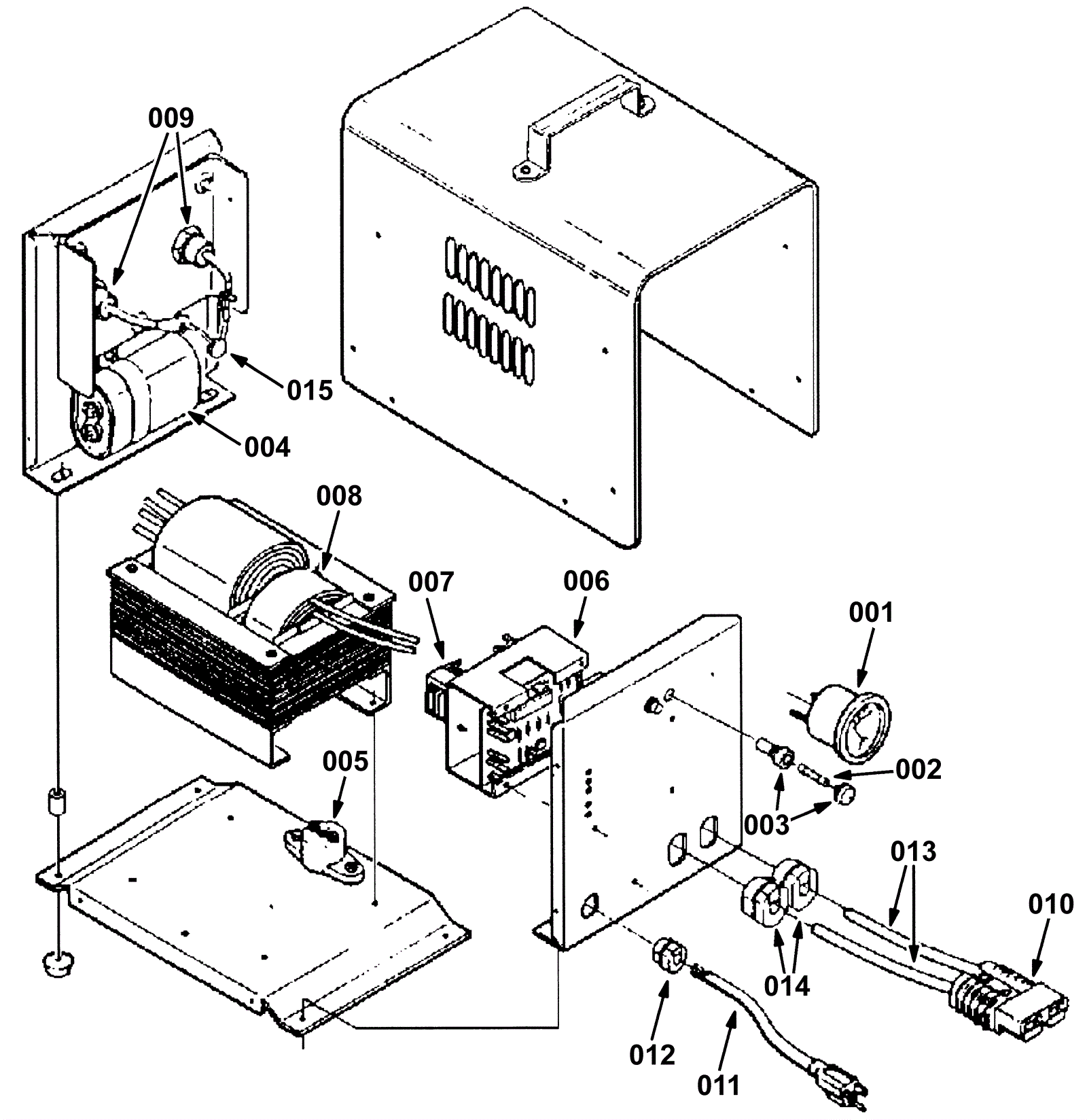

7200 Battery Charger Breakdown 4

#PartDescriptionPriceReqNotesAvailability
001a 175-9765 Charger 36VDC 30A 245VAC 1Ph 50Hz $2,038.85 1 usually ships 1-5 days
001b 275-0221 Transformer control $102.52 1 usually ships 1-5 days
002 275-0227 Battery charger fuse $5.28 1 usually ships 1-5 days
003 275-0222 Battery charger fuse holder $34.76 1 usually ships 1-5 days
004 275-4687 Capacitor $57.75 1 usually ships 1-5 days
005 275-0229 Battery charger circuit breaker $92.29 1 usually ships 1-5 days
006 275-0218 Battery charger control $531.41 1 usually ships 1-5 days
007 275-0221 Transformer control $102.52 1 usually ships 1-5 days
008 N/A Not available Call for price 1 usually ships 3-26 days
009 275-0231 Battery charger diode $44.66 2 usually ships 1-5 days
010 991-2105 SB50 50amp charger plug with pins (gray) $6.72 1 ships same day
011 275-0223 120VAC wire with plug $87.23 1 usually ships 1-5 days
012 275-0209 Battery charger wire strain relief $8.69 1 usually ships 1-5 days
013 275-0232 36VDC wire with connector $331.76 1 usually ships 1-5 days
014 275-0208 Battery charger wire strain relief $14.30 2 usually ships 1-5 days
015 275-0210 Battery charger varistor $46.75 1 usually ships 1-5 days
