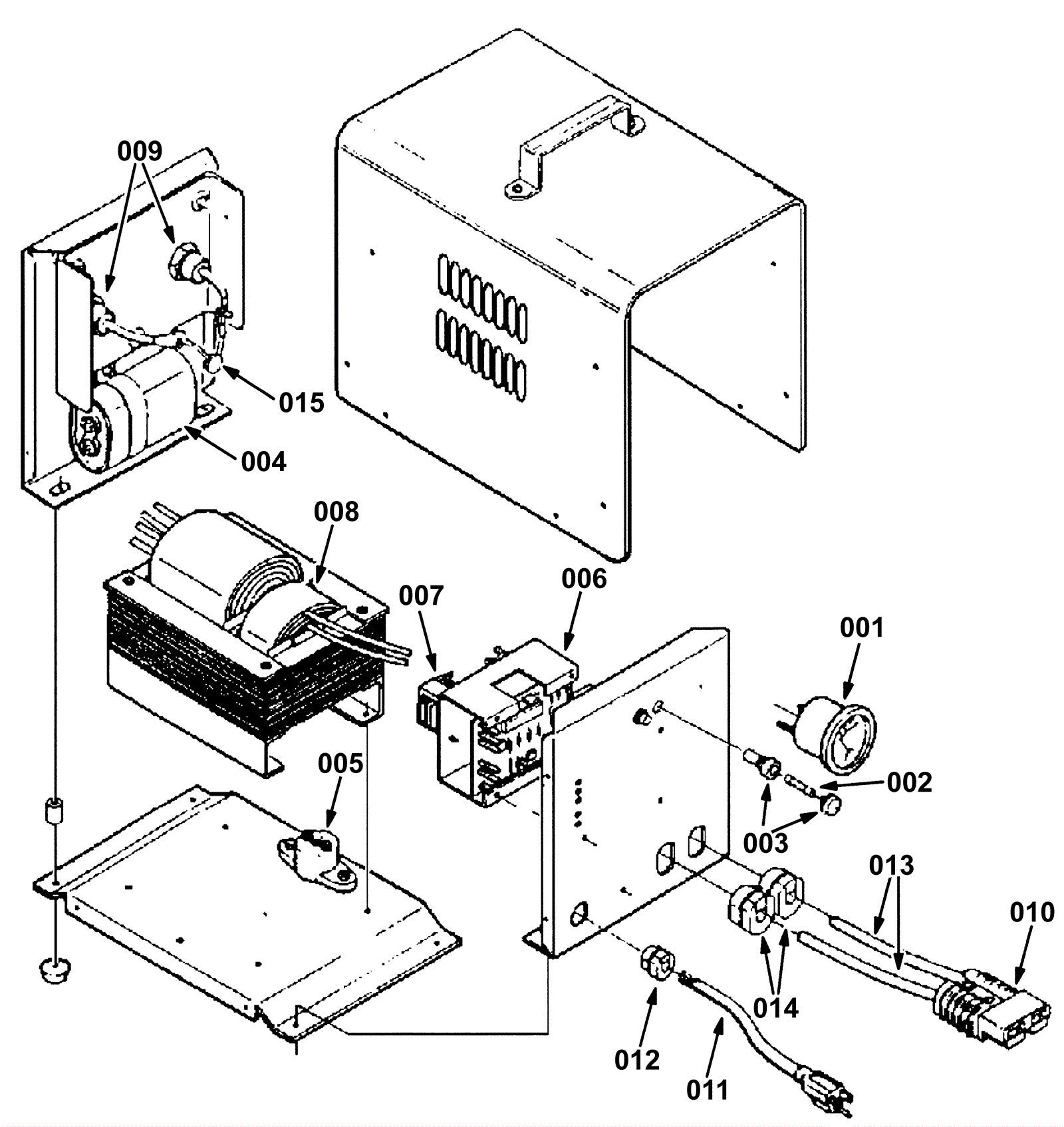

Battery Charger Breakdown 3

#PartDescriptionPriceReqNotesAvailability
001a 175-9763 Charger 36VDC 30A 230VAC 1Ph 50Hz $1,705.00 1 usually ships 1-5 days
001b 275-0226 Battery charger ammeter gauge $30.69 1 usually ships 1-5 days
002 275-0227 Battery charger fuse $5.28 1 usually ships 1-5 days
003 275-0222 Battery charger fuse holder $34.76 1 usually ships 1-5 days
004 275-0228 Battery charger condenser $56.32 1 usually ships 1-5 days
005 275-0229 Battery charger circuit breaker $92.29 1 usually ships 1-5 days
006 275-0218 Battery charger control $531.41 1 usually ships 1-5 days
007 275-0221 Transformer control $102.52 1 usually ships 1-5 days
009 275-0231 Battery charger diode $44.66 2 usually ships 1-5 days
011 275-0223 120VAC wire with plug $87.23 1 usually ships 1-5 days
012 275-0209 Battery charger wire strain relief $8.69 1 usually ships 1-5 days
013 275-0232 36VDC wire with connector $331.76 1 usually ships 1-5 days
014 275-0208 Battery charger wire strain relief $14.30 2 usually ships 1-5 days
015 275-0210 Battery charger varistor $46.75 1 usually ships 1-5 days
