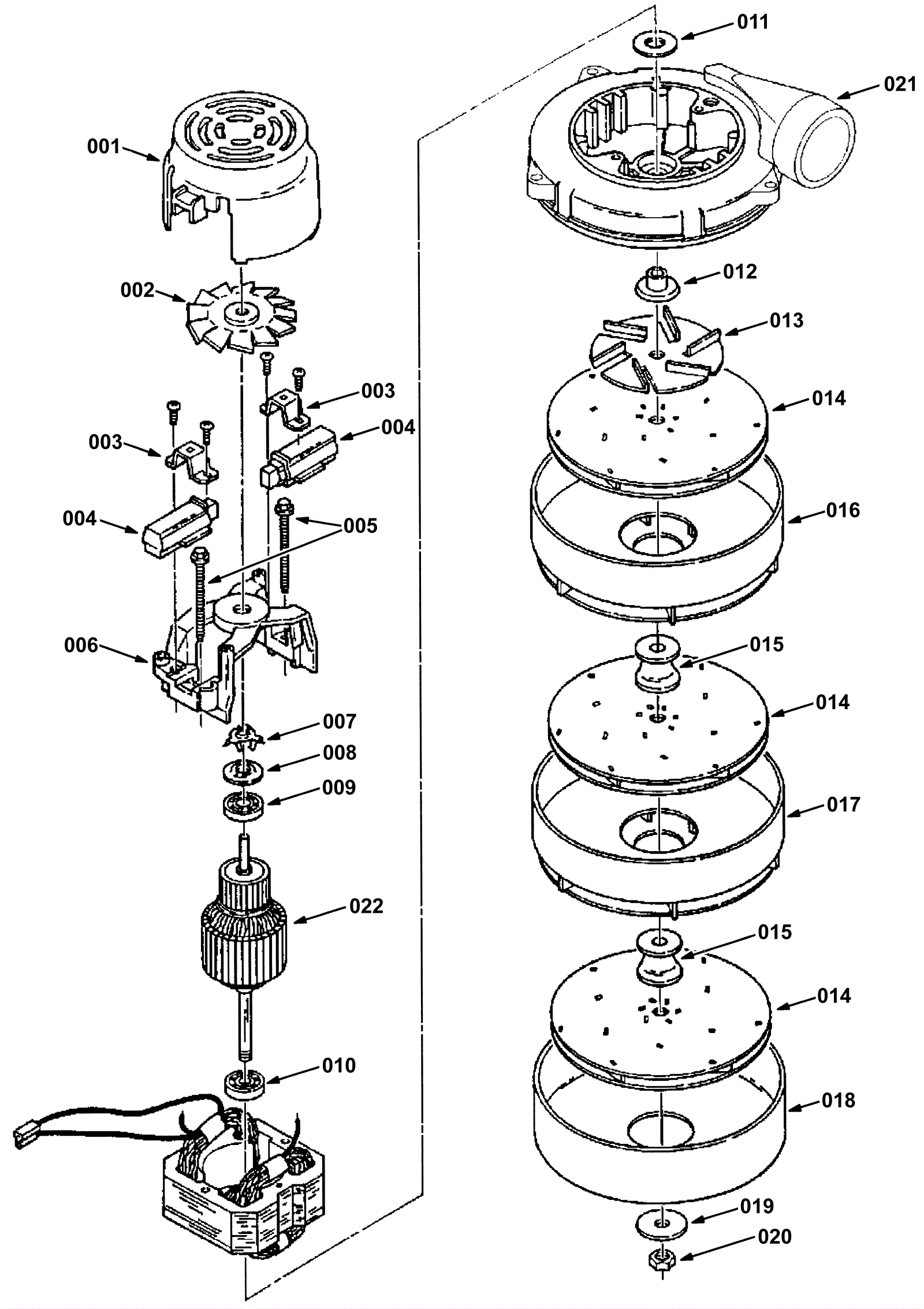

7200 Electric Motor Breakdown 1

#PartDescriptionPriceReqNotesAvailability
001a 991-1202 36V 3 stage vacuum motor tangential $109.34 1 usually ships 5-16 days
001b 275-0172 Vacuum motor housing $20.90 1 usually ships 5-16 days
002 275-0173 Vacuum motor fan $27.50 1 usually ships 5-16 days
003 275-0174 Brush holder clamp $5.02 2 usually ships 1-5 days
004 991-1222 Plastic covered carbon brush (sold individually) $10.77 2 ships same day
005 275-0175 Vacuum motor screw $8.03 2 usually ships 1-5 days
006 275-0176 Vacuum motor bracket $30.58 1 usually ships 1-5 days
007 175-5279 Spring $3.70 1 usually ships 1-5 days
008 275-0177 Vacuum motor armature disc $5.02 1 usually ships 1-5 days
009 275-0178 Vacuum motor bearing $36.30 1 usually ships 5-16 days
010 175-5281 Bearing $34.43 1 usually ships 5-16 days
011 175-5282 Washer neoprene $5.15 1 usually ships 1-5 days
012 275-0179 Vacuum impeller spacer $12.98 1 usually ships 1-5 days
013 175-5284 Fan $6.60 1 usually ships 1-5 days
014 175-5285 Vacuum fan $13.97 3 usually ships 5-16 days
015 275-0180 Vacuum fan impeller spacer $19.14 2 usually ships 1-5 days
016 175-5287 Stationary fan $25.30 1 usually ships 1-5 days
017 175-5288 Stationary fan $23.87 1 usually ships 1-5 days
018 275-0181 Vacuum fan shell $19.03 1 usually ships 1-5 days
019 275-0182 VR, WASHER (Tennant Industrial) $6.33 1 usually ships 1-5 days
020 175-5290 Nut $5.15 1 usually ships 1-5 days
021 175-5291 Fan end bracket $104.72 1 usually ships 1-5 days
022a 175-0104 120V control board $149.93 1 usually ships 5-16 days
022b 164-0881 Vacuum motor gasket $13.42 1 ships same day
022c 175-5293 Female connector $10.23 1 ships same day
022d 175-5294 Female terminal $4.09 2 usually ships 1-5 days
