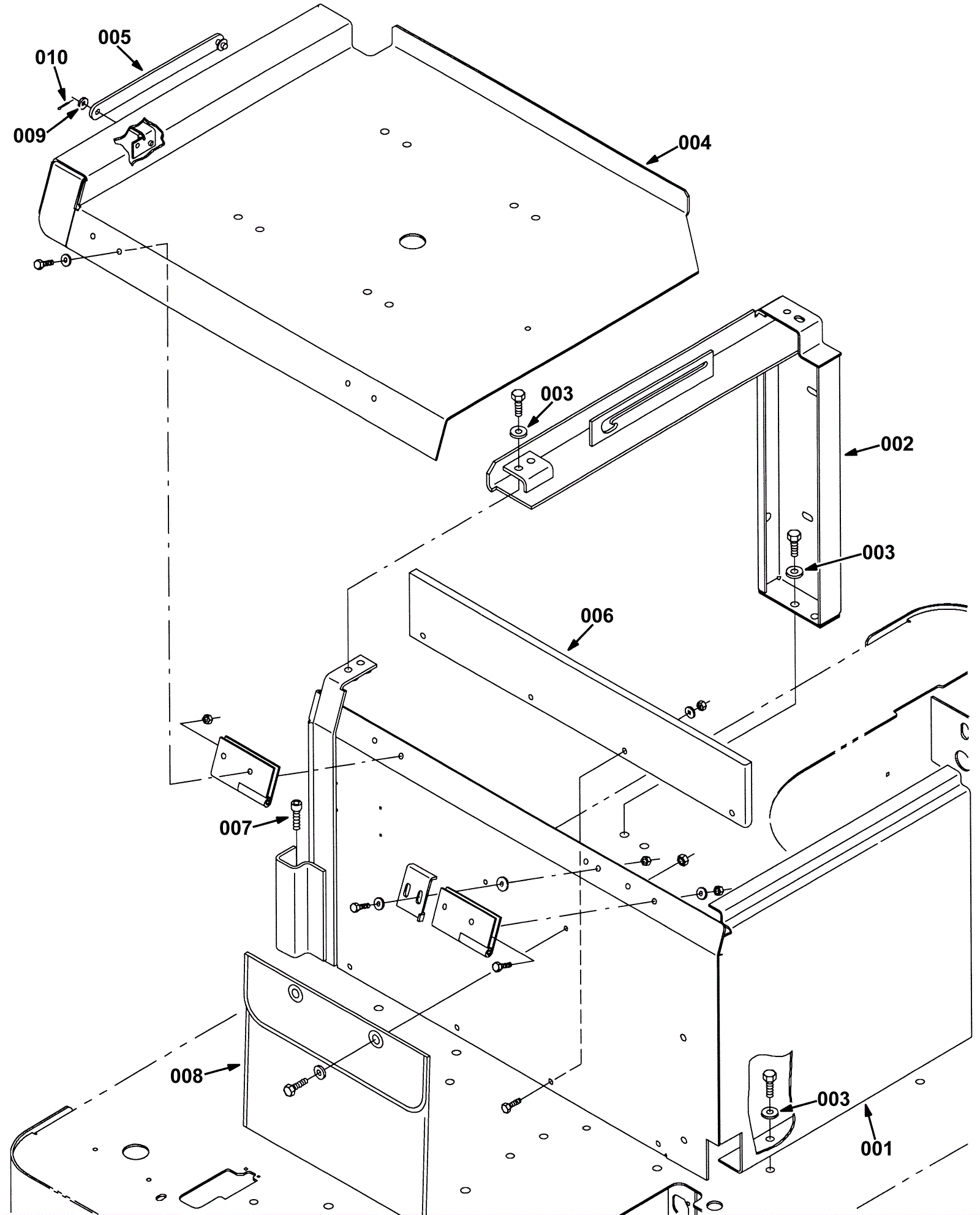

Rollout Battery Seat Support Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-9790 Seat support weldment (OBSOLETE) $564.74 1 usually ships 1-5 days
002 175-9791 Overhead guard seat mounting brace weldment (OBSOLETE) $434.28 1 usually ships 1-5 days
003 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 8 ships same day
004 175-9792 Seat mounting pan (OBSOLETE) $464.97 1 usually ships 1-5 days
005 175-9793 Seat safety arm weldment $29.15 1 usually ships 1-5 days
006 175-9794 HDPE plate 1/2 x 4 x 25 $70.51 1 usually ships 1-5 days
007 175-9795 Screw M8-1.25 x 30 socket head 12.9 aluminum $3.83 1 usually ships 1-5 days
008 175-9796 Pouch $32.56 1 usually ships 1-5 days
009 999-0016 Washer 1/4 flat plain finish $0.99 1 ships same day
010 175-6176 Cotter pin $3.04 1 ships same day
