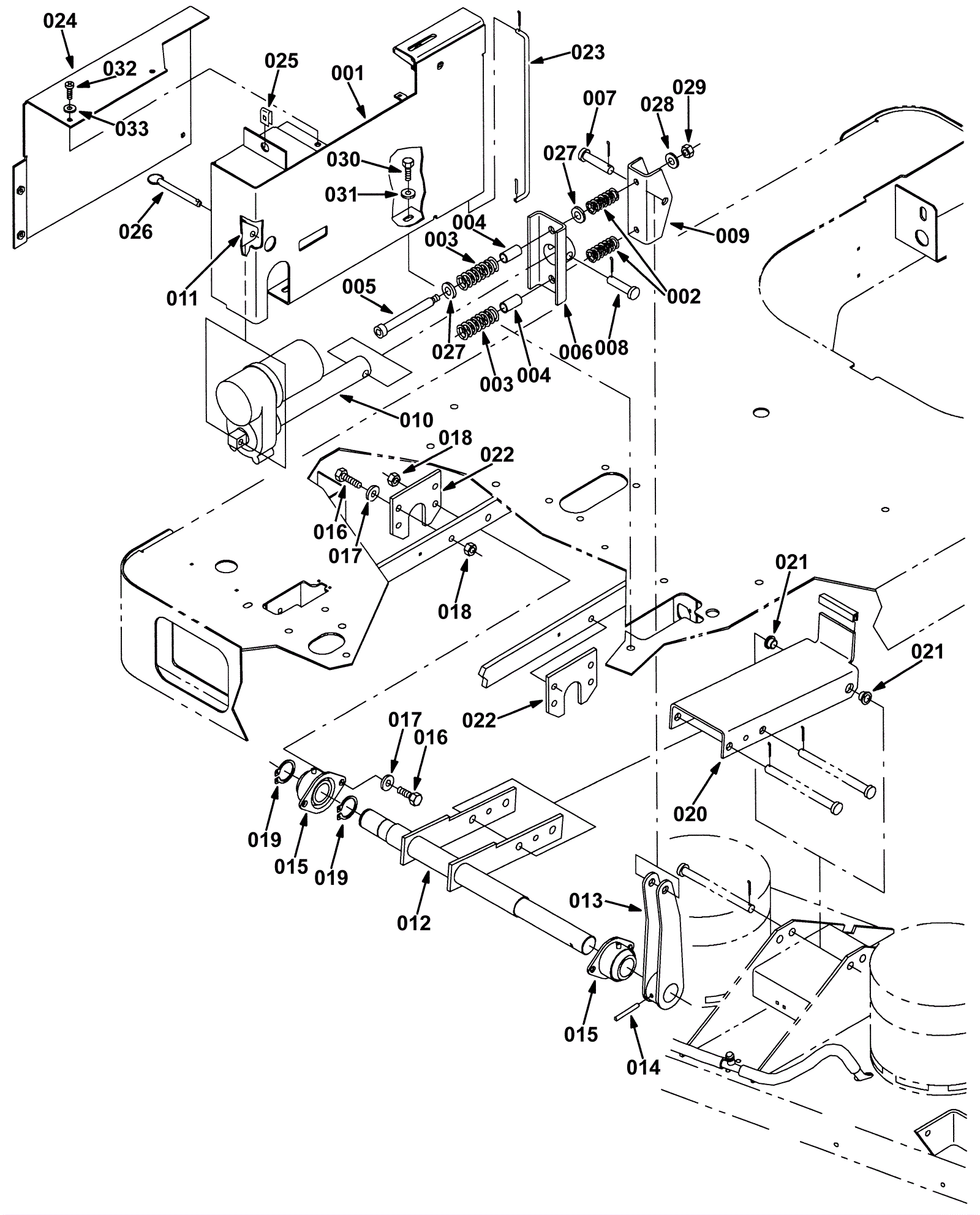

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
175-9776
|
PANEL WLDT, MTG, TOOL LIFT (Tennant Industrial) |
1 |
|
|
002 |
175-3316
|
Compression spring |
2 |
|
|
003 |
175-3315
|
Compression spring |
2 |
|
|
004 |
175-2442
|
Sleeve |
2 |
|
|
005 |
175-2856
|
Bolt 3/8-16 x 1/2 x 4 shoulder |
2 |
|
|
006 |
175-3314
|
Mounting actuator channel weldment |
1 |
|
|
007 |
175-9603
|
Clevis pin |
1 |
|
|
008 |
175-2382
|
Clevis pin |
1 |
|
|
009 |
175-3317
|
Lift channel |
1 |
|
|
010 |
175-3313
|
Actuator |
1 |
|
|
011 |
N/A
|
Not available |
1 |
Bumper pivot ear |
|
012 |
175-9779
|
Tool lift shaft weldment |
1 |
|
|
013 |
175-9780
|
Tool lift arm weldment |
1 |
|
|
014 |
175-9781
|
Roll pin 3/8d x 2l .375/.382 |
1 |
|
|
015 |
175-9782
|
Flanged bearing 2 hole 1 1/4 bore |
2 |
|
|
016 |
999-1170
|
Bolt M10-1.5 x 20mm hex head stainless steel |
8 |
|
|
017 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
8 |
|
|
018 |
999-1120
|
Nut M10-1.5 nylon insert lock stainless steel |
8 |
|
|
019 |
175-9783
|
Retaining ring 1 1/4d |
2 |
|
|
020a |
175-9784
|
CHANNEL WLDT, TOOL, LIFT (Tennant Industrial) |
1 |
|
|
020b |
175-9785
|
Tool lift channel weldment (700mm r/o disk) (Tennant Indust |
1 |
|
|
021 |
175-3335
|
Flanged bushing |
2 |
|
|
022 |
175-9786
|
Bearing mounting plate |
2 |
|
|
023 |
175-9787
|
Water control valve rod (OBSOLETE) |
1 |
|
|
024 |
175-9788
|
ANGLE, COVER, TOOL LIFT (Tennant Industrial) |
1 |
|
|
025 |
175-5927
|
Nut M08 - 1 1/4 U |
1 |
|
|
026 |
175-9789
|
PIN, HITCH, .375D X 3.12L, PL (Tennant Industrial) |
1 |
|
|
027 |
999-0114
|
Washer 1/2 SAE flat |
4 |
|
|
028 |
999-0032
|
Washer 3/8 USS flat plain finish |
2 |
|
|
029 |
175-6922
|
Nut 3/8 - 16 hex lock |
2 |
|
|
030 |
999-1133
|
Bolt M8-1.25 x 20mm hex head full thread plain |
3 |
|
|
031 |
999-0024
|
Washer 5/16 flat stainless steel |
3 |
|
|
032 |
999-1168
|
Screw M6-1 x 20mm pan head phillips stainless steel |
6 |
|
|
033 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
6 |
|
|
