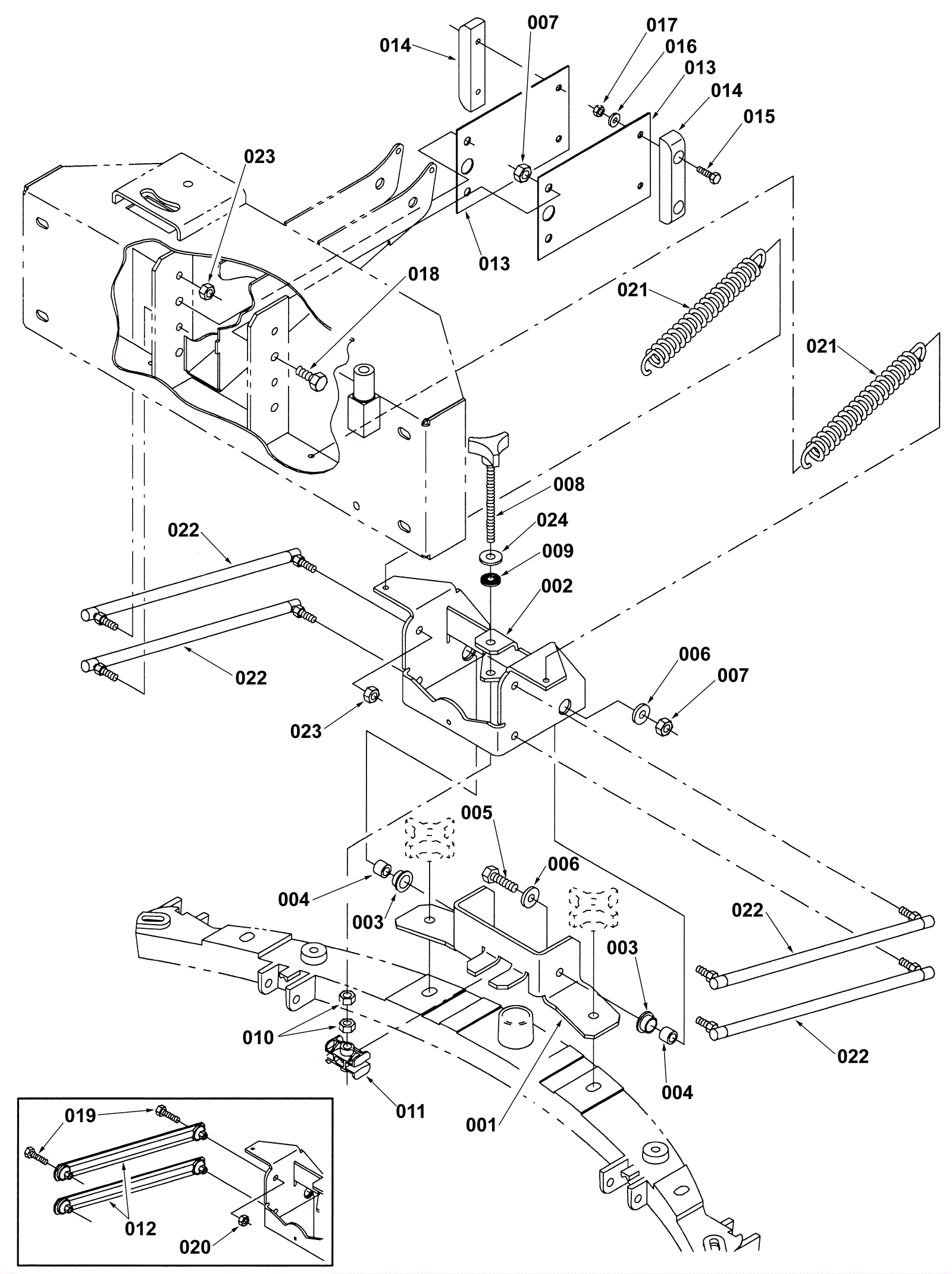

7200 Rear Squeegee Linkage Assembly 1

#PartDescriptionPriceReqNotesAvailability
001 175-9604 Squeegee pivot mounting bracket $85.25 1 usually ships 1-5 days
002 175-9605 Squeegee lift bracket weldment $406.23 1 usually ships 1-5 days
003 175-3460 Flanged bushing $10.78 2 usually ships 5-16 days
004 175-9606 Round tube $24.97 2 usually ships 5-16 days
005 999-0246 Bolt M10-1.5 x 35mm hex head full thread $1.28 2 ships same day
006 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 4 ships same day
007 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 6 ships same day
008 175-3461 Knob $29.70 1 usually ships 5-16 days
009 175-2896 Washer 5/16 $4.09 1 usually ships 5-16 days
010 999-1424 Nut M8-1.25 hex stainless steel $1.65 2 ships same day
011 175-2301 Squeegee adjustment block $13.09 1 ships same day
012 175-9607 LINK KIT, SQGE, REPAIR (Tennant Industrial) $462.09 4 usually ships 5-16 days
013 175-9608 Centering spring $53.68 2 usually ships 5-16 days
014 175-3463 Centering block $27.61 2 usually ships 5-16 days
015 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 4 ships same day
016 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 4 ships same day
017 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 4 ships same day
018 999-1170 Bolt M10-1.5 x 20mm hex head stainless steel $3.06 4 ships same day
019 999-0786 Screw M8-1.25 x 35mm hex head stainless steel $1.12 8 ships same day
020 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 8 ships same day
021 175-9609 Tension spring $26.84 2 usually ships 5-16 days
022 175-9607 LINK KIT, SQGE, REPAIR (Tennant Industrial) $462.09 4 usually ships 5-16 days
023 999-0296 Nut 5/16-24 nylon insert lock stainless steel $0.99 8 ships same day
024 999-0123 Washer 1/4 SAE flat zinc plated $0.99 1 ships same day
