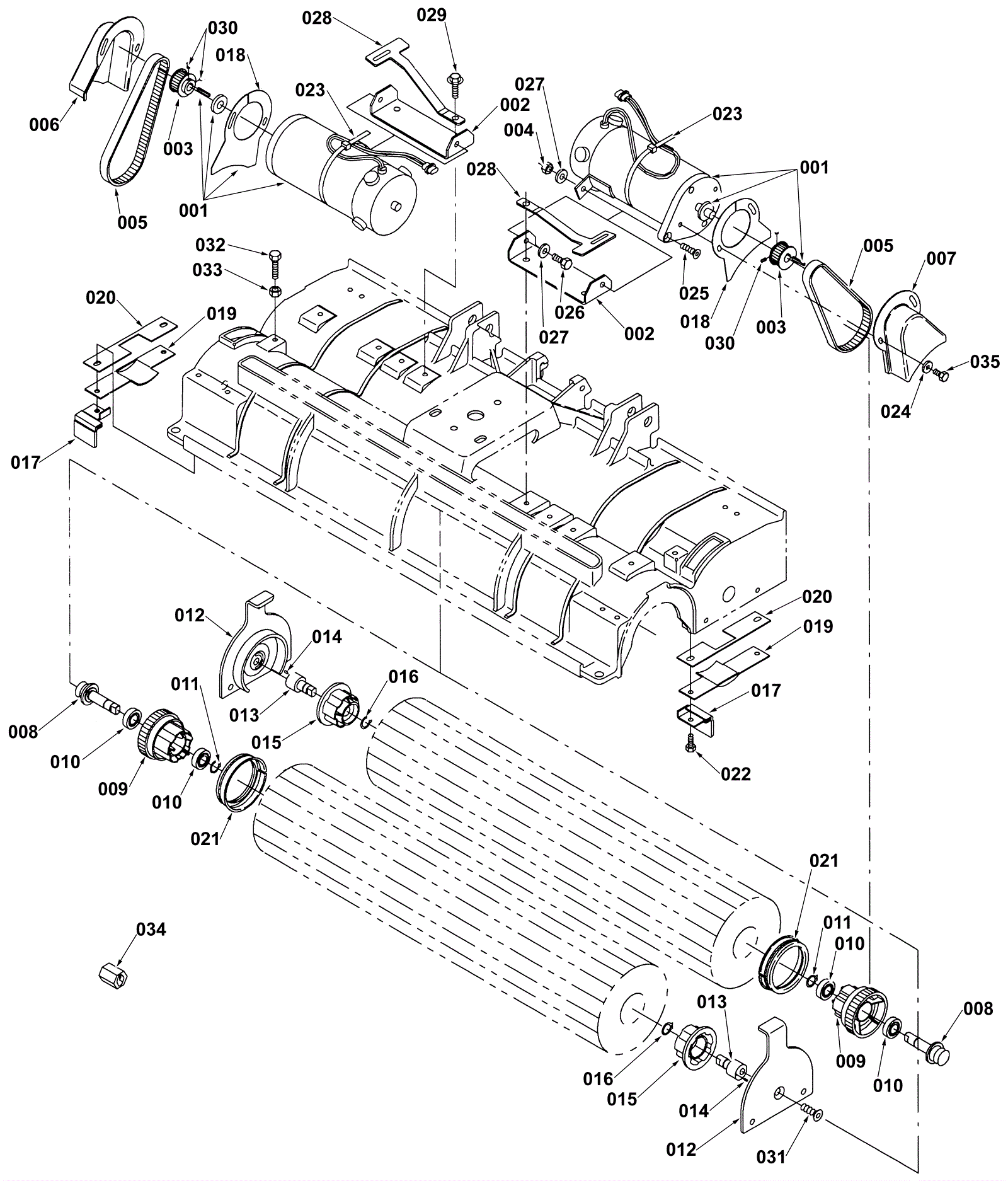

7200 Cylindrical Scrub Head Drive Motor Assembly (36inch)

#PartDescriptionPriceReqNotesAvailability
001 175-2056 Brush motor assembly $1,097.91 2 ships same day
002 175-2464 Mounting motor bracket $21.45 2 usually ships 13-17 days
003 175-2465 Drive sprocket $74.25 2 usually ships 13-17 days
004 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 4 ships same day
005 175-2034 Cogged drive belt $112.20 2 usually ships 13-17 days
006 175-2490 Right belt guard $64.35 1 usually ships 13-17 days
007 175-2491 Left belt guard $64.35 1 ships same day
008a 175-2468 Brush drive plug assembly $234.63 2 usually ships 13-17 days
008b 175-2469 Shaft drive plug $104.61 1 ships same day
009 175-2470 Brush drive plug $109.67 1 usually ships 13-17 days
010 175-2471 Ball bearing $20.68 2 ships same day
011 175-2472 Retaining ring $3.30 1 usually ships 13-17 days
012 175-2474 Brush door $57.86 2 ships same day
013a 175-2475 Idler plug assembly $117.26 2 usually ships 13-17 days
013b 175-2476 Idler plug shaft $79.97 1 usually ships 13-17 days
014 175-2477 Roll pin $3.30 1 usually ships 13-17 days
015 175-2478 Brush idler plug $31.02 1 ships same day
016 175-2472 Retaining ring $3.30 1 usually ships 13-17 days
017 175-2486 Water deflector $45.65 2 usually ships 13-17 days
018 175-2489 Belt shield $14.19 2 usually ships 13-17 days
019 175-2487 Shield bracket $20.46 2 usually ships 13-17 days
020 175-2488 Shield gasket $5.50 2 usually ships 13-17 days
021 175-2495 Seal ring $61.82 2 ships same day
022 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 4 ships same day
023 175-2226 Nylon wire tie $4.49 2 ships same day
024 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 4 ships same day
025 999-1622 Screw M8-1.25 x 25mm flat head phillips stainless steel $1.69 2 ships same day
026 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 2 ships same day
027 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 6 ships same day
028 175-2482 Door spring $28.49 2 usually ships 13-17 days
029 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 4 ships same day
030 999-0431 Screw 8-32 x 1/4 set socket cup point alloy plain finish $0.99 4 ships same day
031 175-2863 Screw M10-1.5 x 20mm flat head stainless steel nylok $5.28 2 usually ships 13-17 days
032 999-0786 Screw M8-1.25 x 35mm hex head stainless steel $1.12 2 ships same day
033 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 2 ships same day
034 275-1209 Shaft removal tool $330.66 1 usually ships 13-17 days
035 999-9116 Screw M6-1 x 12mm hex head stainless steel $0.99 4 ships same day
