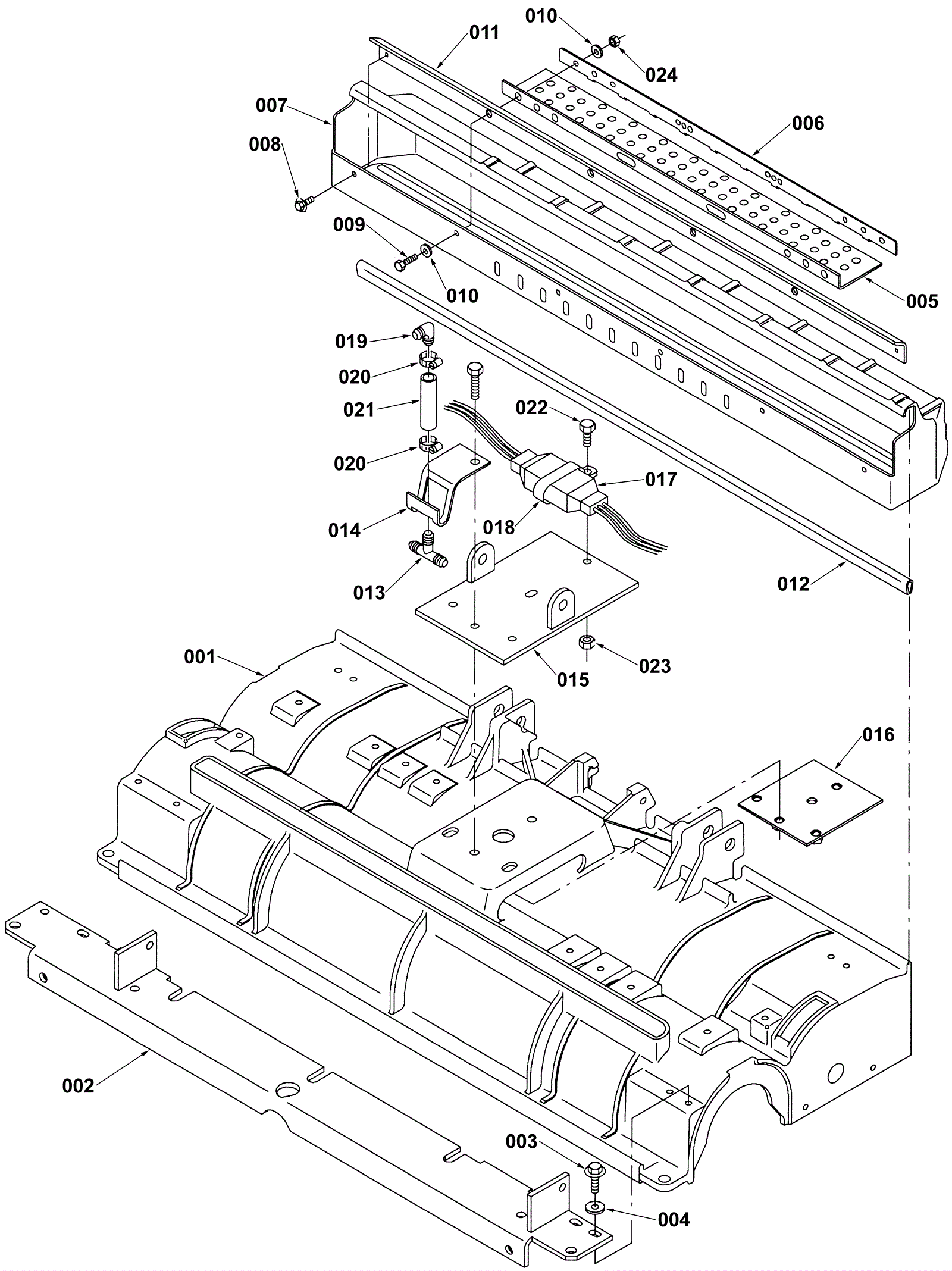

7200 Cylindrical Scrub Head Frame Assembly (36 inch)

#PartDescriptionPriceReqNotesAvailability
001 275-1251 36 inch (900mm) cylindrical housing $2,600.95 1 usually ships 5-16 days
002 175-9536 Cylindrical head mounting bracket weldment $257.07 1 usually ships 5-16 days
003 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 4 ships same day
004 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
005a 175-2498 36 inch debris tray kit $436.37 1 usually ships 5-16 days
005b 175-2517 Skirt $35.64 1 usually ships 5-16 days
006 175-2399 Debris tray skirt $44.22 1 usually ships 5-16 days
007 175-2499 36 inch debris tray $293.70 1 usually ships 5-16 days
008 999-1319 Screw M6-1 x 12mm hex head plain finish $0.99 2 ships same day
009 999-1087 Bolt M6-1 x 25mm hex head stainless steel $0.99 4 ships same day
010 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 8 ships same day
011 175-2500 36 inch debris tray lip $44.22 1 usually ships 1-5 days
012 175-2501 Channel $39.16 1 usually ships 1-5 days
013 175-3329 Plastic tee fitting $6.05 1 usually ships 5-16 days
014 175-2521 Hose guide bracket $23.21 1 usually ships 5-16 days
015 175-9537 Scrub tool mounting plate weldment $123.09 1 usually ships 1-5 days
016 175-5398 Tool lift mounting plate $36.41 1 usually ships 5-16 days
017 175-2510 Cylindrical head wiring harness $141.24 1 usually ships 5-16 days
018 175-6894 CLAMP, CABLE, STL, 1.0X2.0X0.62W, 1HOLE (Tennant Industrial $8.84 1 usually ships 1-5 days
019 175-5233 Plastic fitting $7.59 1 usually ships 5-16 days
020 175-6081 Hose clamp $4.84 2 ships same day
021 175-4976 1 foot hose $23.65 1 usually ships 5-16 days
022 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 1 ships same day
023 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 1 ships same day
024 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 4 ships same day
