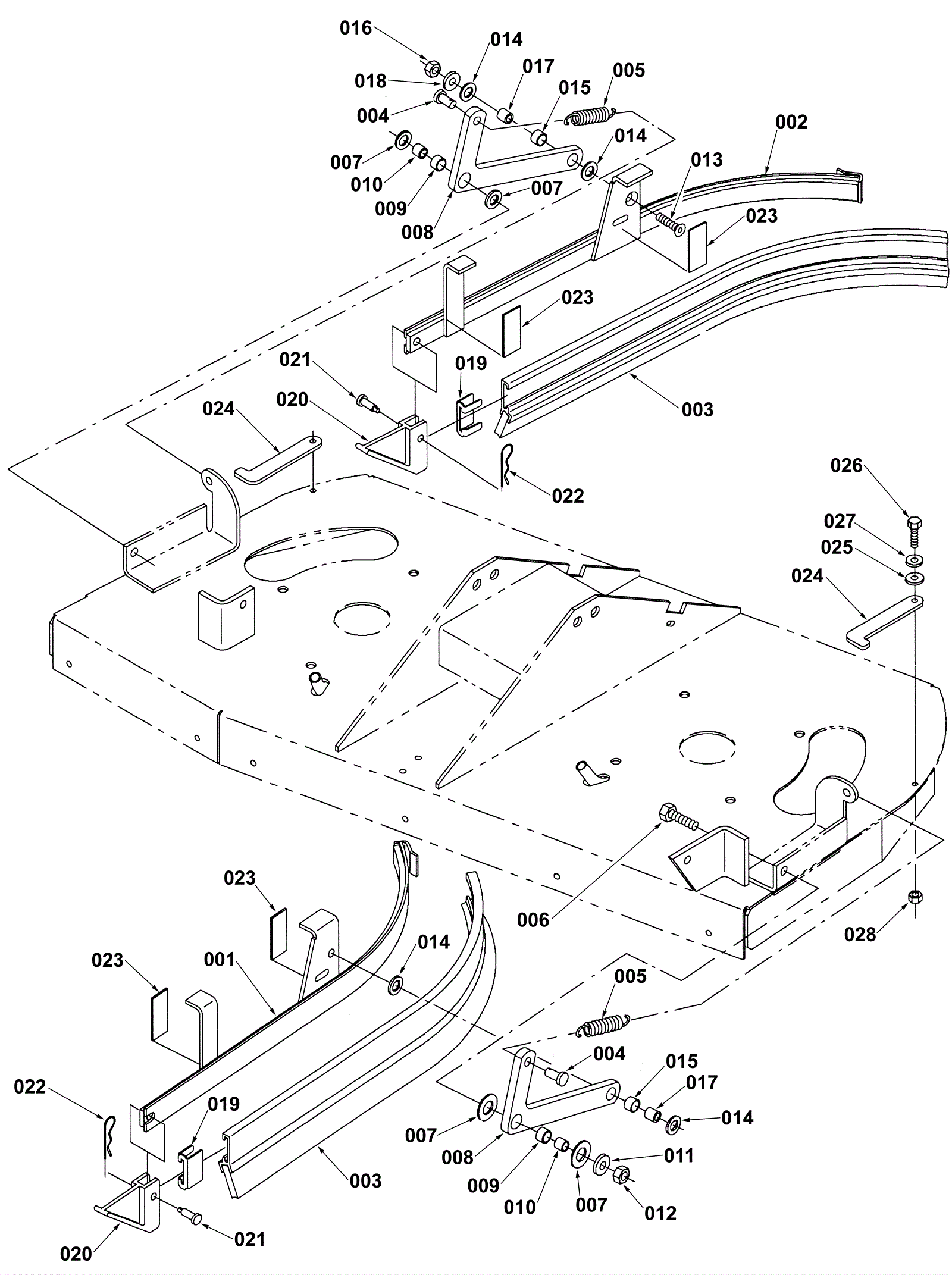

7200 Disk Scrub Head Squeegee Assembly (36 inch)

#PartDescriptionPriceReqNotesAvailability
001 175-9530 Left disk squeegee bladeholder weldment $188.65 1 usually ships 13-17 days
002 175-9531 Right disk squeegee bladeholder weldment $195.58 1 usually ships 13-17 days
003b 275-9740 Side squeegee blade gum rubber $56.10 2 ships same day
004 175-3344 Clevis pin $8.25 2 usually ships 13-17 days
005 175-3345 Extension spring $10.01 2 ships same day
006 999-0246 Bolt M10-1.5 x 35mm hex head full thread $1.28 2 ships same day
007 175-3347 Washer .61 thrust $5.50 4 usually ships 13-17 days
008 175-3348 Bell crank $61.05 2 usually ships 13-17 days
009 175-3349 Sleeved bushing $13.64 2 usually ships 13-17 days
010 175-9532 Bearing sleeve 5/8 x 33/64 $18.37 2 usually ships 13-17 days
011 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 usually ships 19-32 days
012 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 2 ships same day
013 999-0770 Screw M8-1.25 x 30mm flat head socket stainless steel $2.62 2 ships same day
014 175-3354 Thrust washer $10.67 4 usually ships 13-17 days
015 175-3355 Sleeved bushing $7.37 2 usually ships 13-17 days
016 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 2 ships same day
017 175-9533 Sleeve 0318-.496 x .515 stainless steel $7.26 2 usually ships 13-17 days
018 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
019 175-3357 Squeegee blade retainer $12.10 2 usually ships 13-17 days
020 475-3313 GUIDE, SQGE, SIDE, YELLOW $19.14 2 usually ships 13-17 days
021 175-3351 Clevis pin $4.49 2 ships same day
022 175-2117 Cotter pin $5.28 2 usually ships 13-17 days
023 175-9534 Wear strip $21.01 4 usually ships 13-17 days
024 175-9535 Side squeegee plate $20.13 2 usually ships 1-5 days
025 175-3187 Washer nylon $4.49 2 usually ships 13-17 days
026 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 2 ships same day
027 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
028 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 2 ships same day
