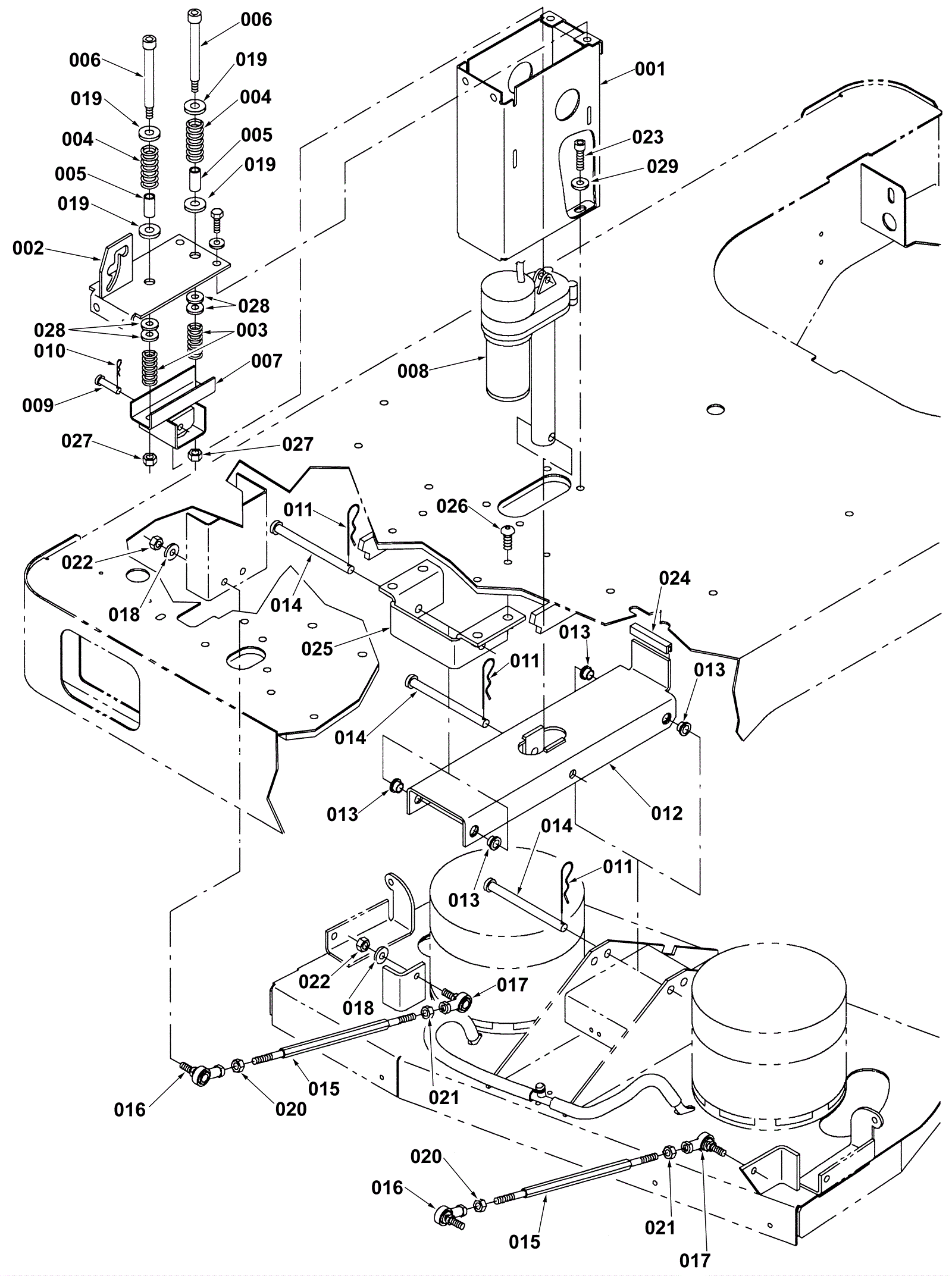

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
175-9514
|
Actuator support bracket weldment |
1 |
|
|
002 |
175-9515
|
Spring mounting and seat prop weldment |
1 |
|
|
003 |
175-3316
|
Compression spring |
2 |
|
|
004 |
175-3315
|
Compression spring |
2 |
|
|
005 |
175-2442
|
Sleeve |
2 |
|
|
006 |
175-2856
|
Bolt 3/8-16 x 1/2 x 4 shoulder |
2 |
|
|
007 |
175-9516
|
Spring mounting and actuator channel weldment (TNT IND) |
1 |
|
|
008 |
175-3313
|
Actuator |
1 |
|
|
009 |
175-2592
|
Clevis Pin 0.37 D X 1.75 L |
1 |
|
|
010 |
175-2113
|
Cotter pin |
1 |
|
|
011 |
175-2106
|
Cotter hair pin |
3 |
|
|
012 |
175-9517
|
Tool lift channel weldment |
1 |
|
|
013 |
175-3335
|
Flanged bushing |
4 |
|
|
014 |
175-5332
|
Clevis pin 1/2 x 6 |
3 |
|
|
015 |
175-9518
|
Rod 3/8-24 x 5 threaded hex |
2 |
|
|
016 |
175-3321
|
Rod end right side |
2 |
|
|
017 |
175-3320
|
Rod end left side |
2 |
|
|
018 |
999-0355
|
175-2249 |
4 |
|
|
019 |
999-0114
|
Washer 1/2 SAE flat |
4 |
|
|
020 |
999-0169
|
Nut 3/8-24 hex jam plain finish |
2 |
|
|
021 |
999-0319
|
Nut 3/8-24 hex left hand plain finish |
2 |
|
|
022 |
999-1151
|
Nut 3/8-24 nylon insert jam lock stainless steel |
4 |
|
|
023 |
175-9519
|
Screw M10-1.5 x 35 socket head |
4 |
|
|
024 |
175-3336
|
Rubber trim molding |
1 |
|
|
025 |
175-9520
|
BRACKET, LIFT, MTG (Tennant Industrial) |
1 |
|
|
026 |
175-9521
|
SCREW, BTN, M10 X 1.5 X 30, 10.9 NL (Tennant Industrial) |
4 |
|
|
027 |
175-6922
|
Nut 3/8 - 16 hex lock |
2 |
|
|
028 |
999-0187
|
Washer 1/2 flat plain finish |
2 |
|
|
029 |
999-0032
|
Washer 3/8 USS flat plain finish |
4 |
|
|
