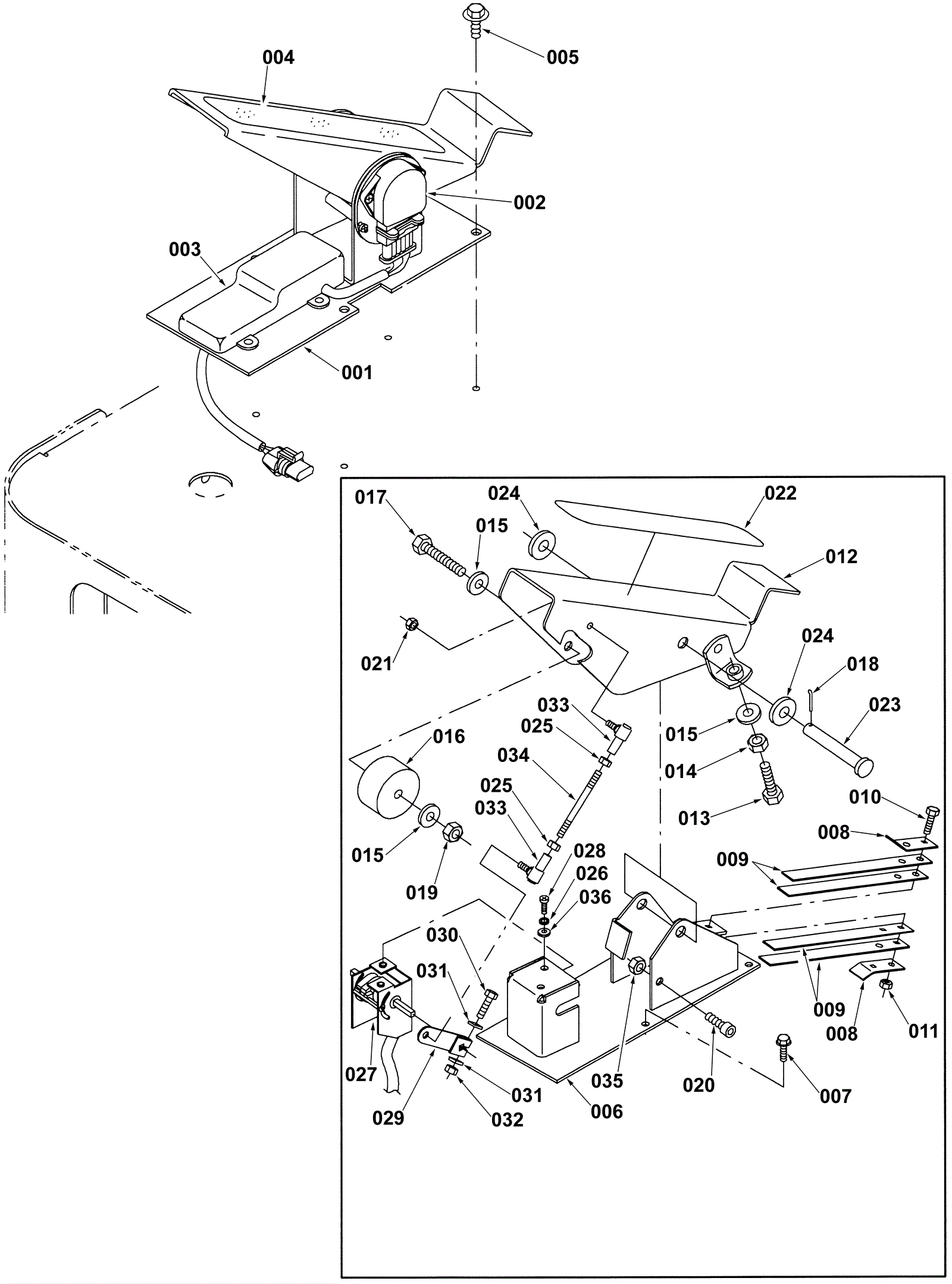

7200 Directional Pedal Assembly

#PartDescriptionPriceReqNotesAvailability
001 275-9282 PEDAL ASSY, PROPEL, 36VDC (Tennant Industrial) $990.36 1 usually ships 5-16 days
002 175-9511 VR, SENSOR, POSITION, PEDAL (Tennant Industrial) $351.40 1 usually ships 5-16 days
003 375-4032 Propel pedal kit (Tennant Industrial) $1,383.26 1 usually ships 5-16 days
004 175-3307 Non-skid tread $6.05 1 usually ships 5-16 days
005 999-1319 Screw M6-1 x 12mm hex head plain finish $0.99 4 ships same day
006 175-9513 Directional control plate (OBSOLETE) $752.51 1 usually ships 1-5 days
007 999-1319 Screw M6-1 x 12mm hex head plain finish $0.99 4 ships same day
008 175-3299 Spring retainer $17.27 2 usually ships 1-5 days
009 175-3300 Strip stainless $17.27 4 usually ships 1-5 days
010 999-0518 Bolt M6-1 x 25mm hex head full thread zinc $0.99 2 ships same day
011 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 2 ships same day
012 175-3301 Accelerator pedal weldment $74.69 1 usually ships 1-5 days
013 175-3258 Bolt M10-1.5 x 35mm hex head $4.88 1 usually ships 1-5 days
014 999-0767 Nut M10-1.5 hex coarse thread $0.99 1 ships same day
015 999-0120 Washer 3/8 SAE flat $0.99 3 ships same day
016 175-3303 Spacer $7.48 1 usually ships 1-5 days
017 999-9081 Screw M10-1.5 x 65mm hex head stainless steel $2.99 1 ships same day
018 175-3281 Cotter pin $3.04 1 usually ships 5-16 days
019 999-9133 Nut M10-1.5 nut hex head stainless steel $1.25 1 usually ships 1-5 days
020 999-0802 Screw M8-1.25 x 16mm socket head $0.99 2 ships same day
021 999-1201 Nut 1/4-28 nylon insert lock hex stainless steel $0.99 2 ships same day
022 175-3307 Non-skid tread $6.05 1 usually ships 5-16 days
023 175-3280 Clevis pin $6.05 1 usually ships 5-16 days
024 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
025 999-0651 Nut 1/4-28 hex stainless steel $0.99 2 ships same day
026 999-0089 Washer #10 internal star lock zinc plated $0.99 2 ships same day
027 175-0597 Speed controller $1,154.01 1 usually ships 5-16 days
028 175-0598 Screw 5mm-.8 x 6 pan head $3.83 2 usually ships 1-5 days
028 175-0599 Electronic control throttle arm $29.15 1 usually ships 1-5 days
030 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated $0.99 1 ships same day
031 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
032 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 1 ships same day
033 175-3302 Balljoint 1/4-28 $9.35 2 usually ships 5-16 days
034 175-0600 2 end thread rod $27.94 1 usually ships 1-5 days
035 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
036 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
