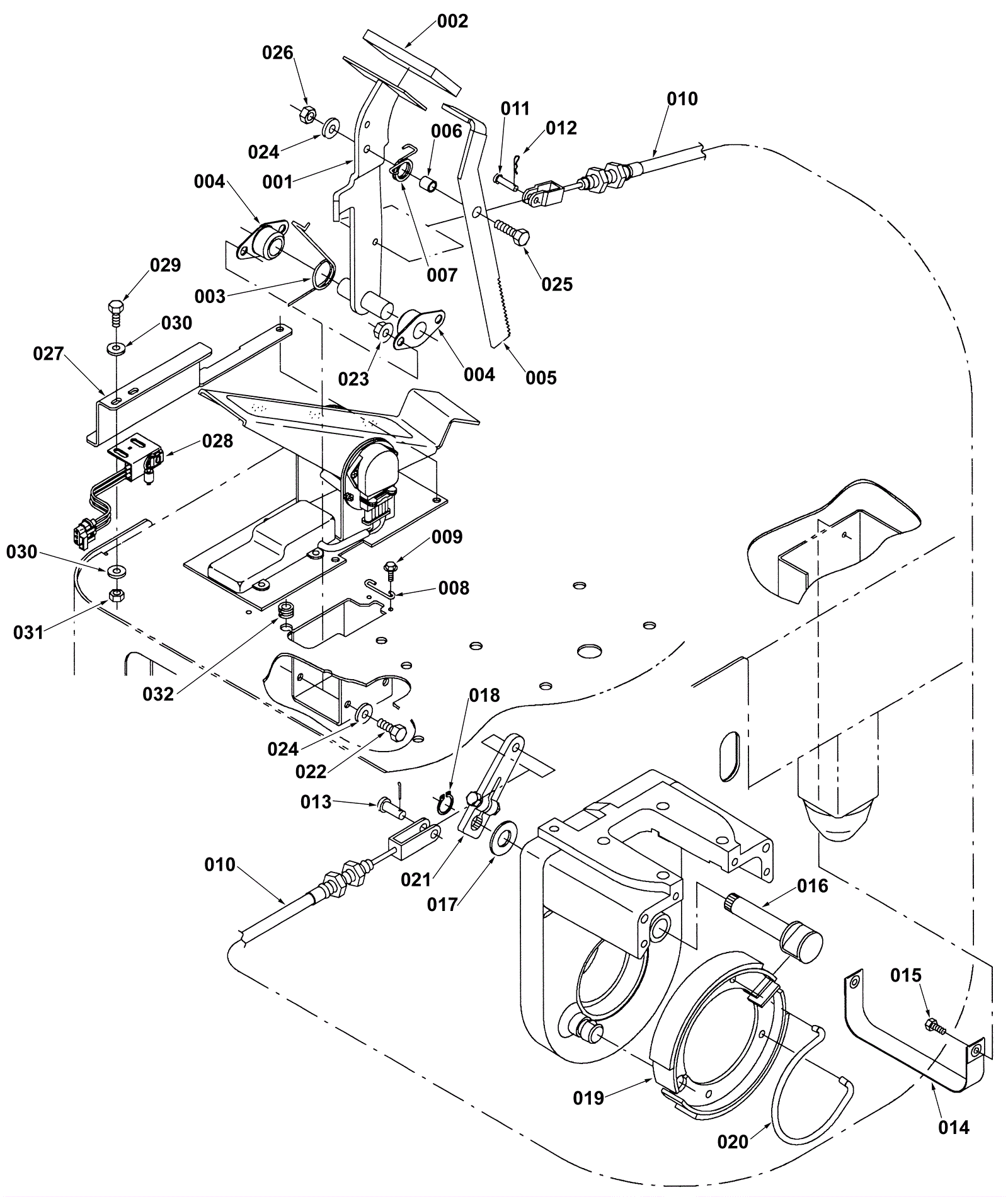

7200 Brake Assembly

#PartDescriptionPriceReqNotesAvailability
001a 175-9983 Brake pedal weldment $52.36 1 usually ships 1-5 days
001b 275-4657 Brake pedal weldment $48.95 1 usually ships 1-5 days
002 175-3279 Pedal pad $30.58 1 usually ships 5-16 days
003 175-9984 Torsion spring $17.05 1 usually ships 5-16 days
004 175-3201 Flanged bearing $6.05 2 usually ships 5-16 days
005 175-9985 Brake pedal lock $47.19 1 usually ships 1-5 days
006 175-0632 Sleeve bushing $4.88 1 usually ships 1-5 days
007 175-0633 Spring $5.50 1 usually ships 5-16 days
008 175-3290 Parking brake spring $6.05 1 usually ships 1-5 days
009 999-1228 Screw M5-.8 x 10mm hex head stainless steel $0.99 2 ships same day
010 275-4658 Clevis pull cable $281.82 1 usually ships 1-5 days
011 175-9987 Clevis pin 1/4 x 3/4 $4.09 1 usually ships 1-5 days
012 175-7107 Cotter hair pin $3.04 1 usually ships 5-16 days
013 175-0637 Clevis pin $4.09 1 usually ships 5-16 days
014 175-9988 Nylon strap 1 x 11 1/4 $19.91 1 usually ships 1-5 days
015 999-1319 Screw M6-1 x 12mm hex head plain finish $0.99 2 ships same day
016 175-9989 Brake cam $121.99 1 usually ships 5-16 days
017 175-9990 Washer M21-37 x 3 flat $5.50 1 usually ships 5-16 days
018 175-9991 Retainer ring $4.22 1 usually ships 5-16 days
019 175-9992 Brake shoe $84.70 2 usually ships 1-5 days
020 175-9993 Brake return spring $22.66 1 usually ships 1-5 days
021 175-9994 Brake lever $84.15 1 usually ships 1-5 days
022 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 4 ships same day
023 999-0665 Nut M8-1.25 flange lock $0.99 4 ships same day
024 999-0024 Washer 5/16 flat stainless steel $1.34 5 ships same day
025 175-0634 Bolt M8-1 1/4 x 35mm hex head $4.09 1 usually ships 1-5 days
026 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 ships same day
027 275-4659 Brake pedal switch bracket $23.32 1 usually ships 1-5 days
028 275-4660 Snap switch $150.92 1 usually ships 1-5 days
029 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 2 ships same day
030 999-0123 Washer 1/4 SAE flat zinc plated $0.99 4 ships same day
031 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 2 ships same day
032 175-4401 GROMMET, RBR, 0.38ID, F/0.5H, .12 MATL (Tennant Industrial) $5.00 1 usually ships 1-5 days
