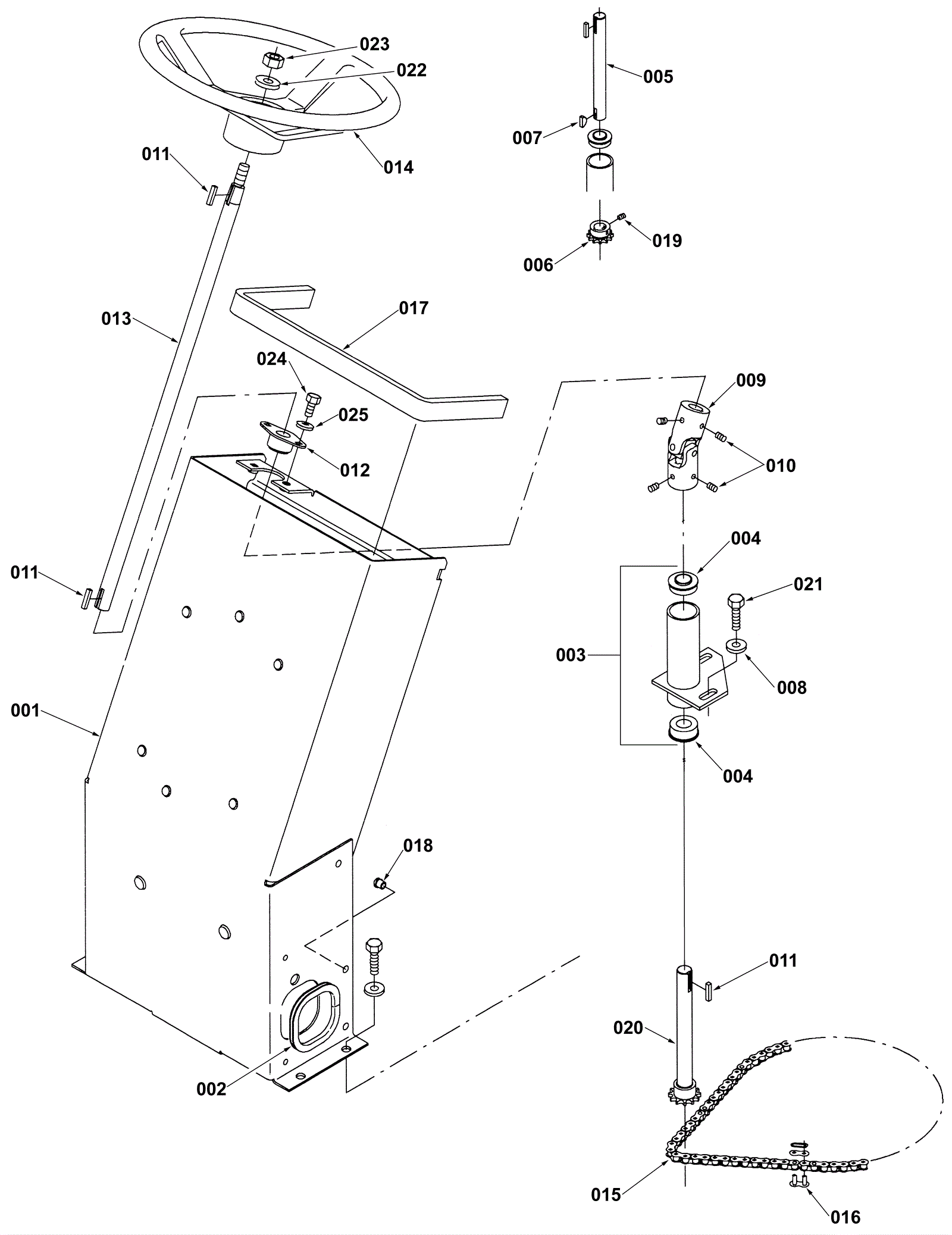

7200 Steering Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-9925 Front channel weldment $268.40 1 usually ships 1-5 days
002 275-8203 Molding $45.21 1 usually ships 1-5 days
003 175-9927 Steering housing assembly $200.86 1 usually ships 5-16 days
004 175-3195 Ball bearing $19.36 2 usually ships 5-16 days
005 175-3196 Steering shaft $132.11 1 usually ships 5-16 days
006 175-3197 Sprocket $48.84 1 usually ships 1-5 days
007 175-3198 Woodruff key $4.09 1 usually ships 1-5 days
008 175-2305 Washer $4.88 2 ships same day
009 275-5323 U joint $111.76 1 ships same day
010 175-4926 Screw 5/16-18 x 3/8 set nylon lock $4.88 4 ships same day
011 175-3200 Square keyway $4.09 3 ships same day
012 175-3201 Flanged bearing $6.05 1 usually ships 5-16 days
013 175-3203 Upper steering shaft $216.04 1 usually ships 1-5 days
014 275-4653 Steering wheel $152.68 1 usually ships 5-16 days
015 175-9928 Chain 35 $24.64 1 usually ships 5-16 days
016 175-3207 Master link $4.88 1 usually ships 5-16 days
017 175-9929 Panel seal $7.81 1 usually ships 1-5 days
018 175-9924 White nylon plug $2.51 2 usually ships 1-5 days
019 175-9930 Screw 1/4-20 x 1/4 aluminum set $5.50 2 usually ships 1-5 days
020 175-3196 Steering shaft $132.11 1 usually ships 5-16 days
021 275-0033 Screw M10-1.5 x 30mm hex head 8.8 $4.88 2 usually ships 1-5 days
022 999-0187 Washer 1/2 flat plain finish $0.99 1 ships same day
023 999-0519 Nut M12-1.75 nylon insert lock stainless steel $3.85 1 ships same day
024 999-0783 Screw M8-1.25 x 16mm hex head $0.99 2 ships same day
025 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
