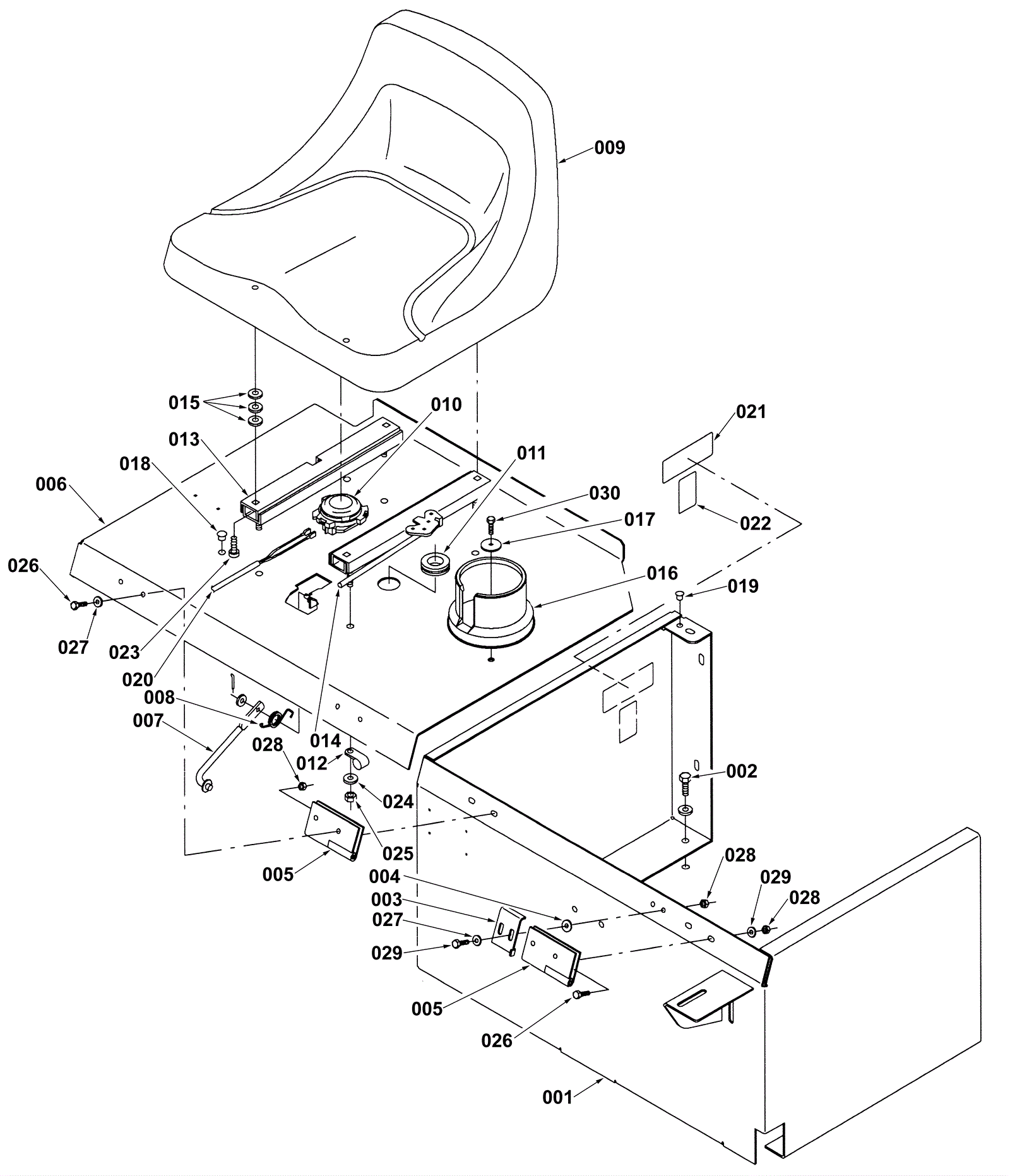

7200 Seat Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-9920 Seat support weldment $382.69 1 usually ships 1-5 days
002 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 9 ships same day
003 175-9921 Seat lock bracket $41.36 1 usually ships 5-16 days
004 175-3187 Washer nylon $4.09 2 usually ships 5-16 days
005 175-3183 Hinge $54.45 2 usually ships 5-16 days
006 175-9922 Seat weldment with labels $470.80 1 usually ships 1-5 days
007 175-3181 Safety support arm $55.00 1 usually ships 5-16 days
008 175-0633 Spring $5.50 1 usually ships 5-16 days
009 275-9328 Seat kit (includes screw and spacer) $268.18 1 ships same day
010 175-0596 Seat switch $23.76 1 ships same day
011 175-0840 Rubber grommet $5.50 1 usually ships 1-5 days
012 175-3168 P clamp $4.88 1 usually ships 5-16 days
013 175-3174 12 1/2 inch adjustable seat slide track $47.96 1 usually ships 1-5 days
014 275-2671 11 1/2 inch seat adjuster rail (Tennant Industrial) $47.70 1 usually ships 5-16 days
015 175-3176 Washer 3/8 flat steel plated $3.04 12 ships same day
016 175-3188 Cup holder $57.31 1 usually ships 5-16 days
017 999-0123 Washer 1/4 SAE flat zinc plated $0.99 1 ships same day
018 175-9923 Black nylon plug $3.96 2 usually ships 1-5 days
019 175-9924 White nylon plug $2.51 1 usually ships 1-5 days
020 175-3190 Seat harness $45.21 1 ships same day
021 175-5223 FaST decal $18.26 1 usually ships 1-5 days
022 175-5271 Certification decal $23.76 1 usually ships 1-5 days
023 999-0313 Screw 3/8-16 x 3/8 cup point set alloy plain finish $0.99 4 ships same day
024 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
025 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
026 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 8 ships same day
027 999-0016 Washer 1/4 flat plain finish $0.99 10 ships same day
028 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 10 ships same day
029 999-0502 Bolt M6-1 x 20mm hex head full thread zinc $0.99 2 ships same day
030 999-0518 Bolt M6-1 x 25mm hex head full thread zinc $0.99 1 ships same day
