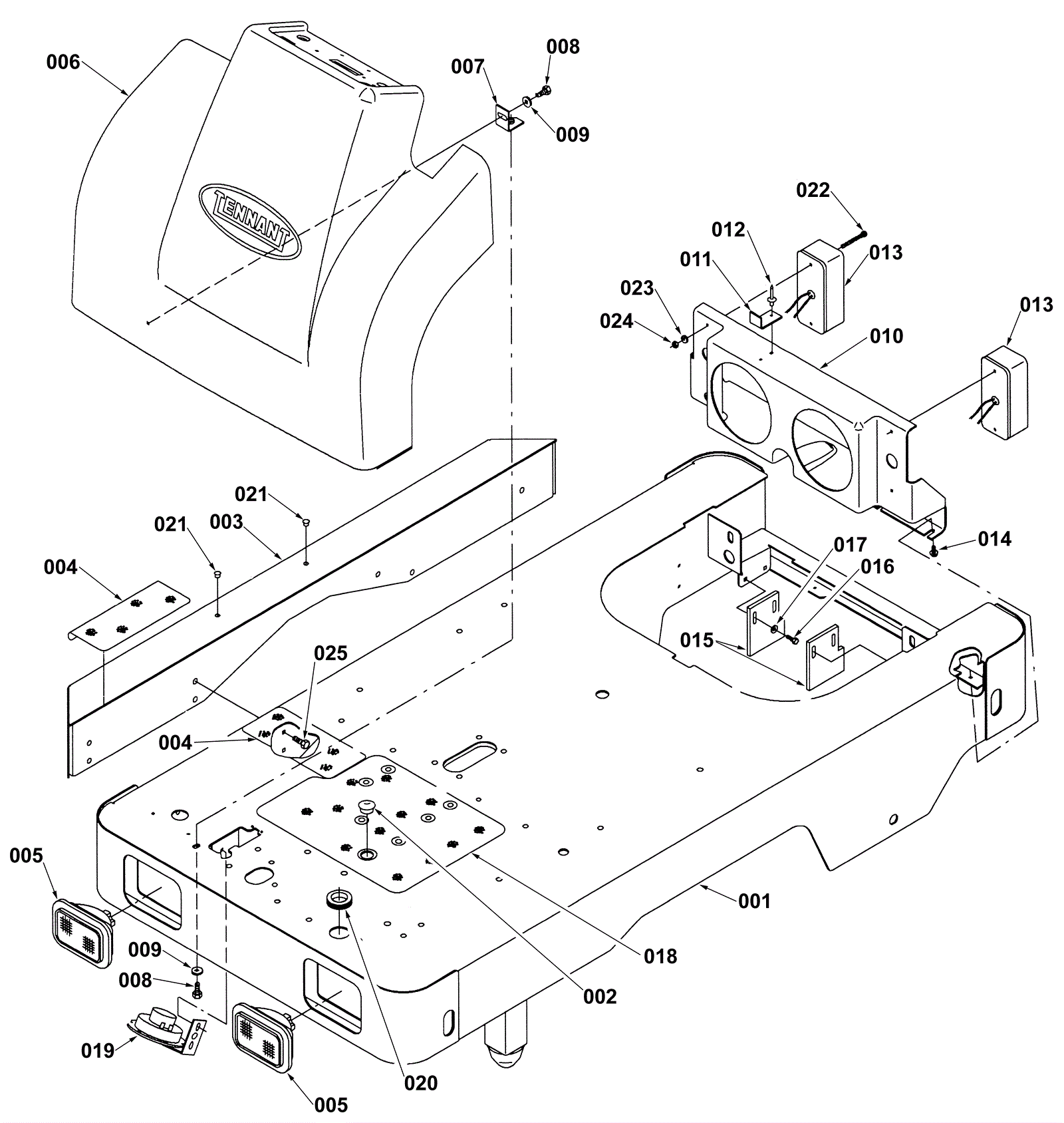

7200 Main Frame Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-2422 Main frame $1,650.00 1 usually ships 1-5 days
002 275-4640 Hole plug $4.09 1 usually ships 1-5 days
003 275-4641 Side bumper $398.42 1 usually ships 1-5 days
004 175-9743 Non-skid tread 10 x 4 1/2 $6.05 2 usually ships 5-16 days
005a 175-0524 Headlight $287.21 2 usually ships 5-16 days
005b 175-3165 Lamp $24.20 1 usually ships 5-16 days
006 275-4642 Front cover $635.25 1 usually ships 1-5 days
007 275-4643 Mounting bracket $172.59 1 usually ships 1-5 days
008 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 2 ships same day
009 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
010a 275-4644 Drip tray $535.81 1 usually ships 1-5 days
010b 275-4645 Drip tray $424.71 1 usually ships 1-5 days
011 275-4646 Tray bracket $30.14 1 usually ships 1-5 days
012 175-5936 Pop rivet $4.88 2 usually ships 5-16 days
013a 275-4647 Taillight kit (Tennant Industrial) $92.52 2 usually ships 5-16 days
013b 275-4648 Lamp $22.44 1 usually ships 5-16 days
014 999-1319 Screw M6-1 x 12mm hex head plain finish $0.99 4 ships same day
015 275-4649 Rubber skirt $14.85 2 usually ships 1-5 days
016 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 4 ships same day
017 999-0123 Washer 1/4 SAE flat zinc plated $0.99 4 ships same day
018 275-4650 TREAD, NON-SKID, 12.8W 15.0L (Tennant Industrial) $59.85 1 usually ships 1-5 days
019 175-3160 Horn $108.68 1 usually ships 5-16 days
020 175-2366 Rubber grommet $6.05 1 ships same day
021 175-2359 Plug $4.09 2 usually ships 1-5 days
022 275-4651 SCREW, CHZ, M5 X 0.8 X 60, 4.8 (Tennant Industrial) $5.00 4 usually ships 1-5 days
023 999-0998 Washer #10 flat stainless steel $0.99 4 ships same day
024 999-0740 Nut M5-.8 hex stainless steel $0.99 4 ships same day
025 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 6 ships same day
