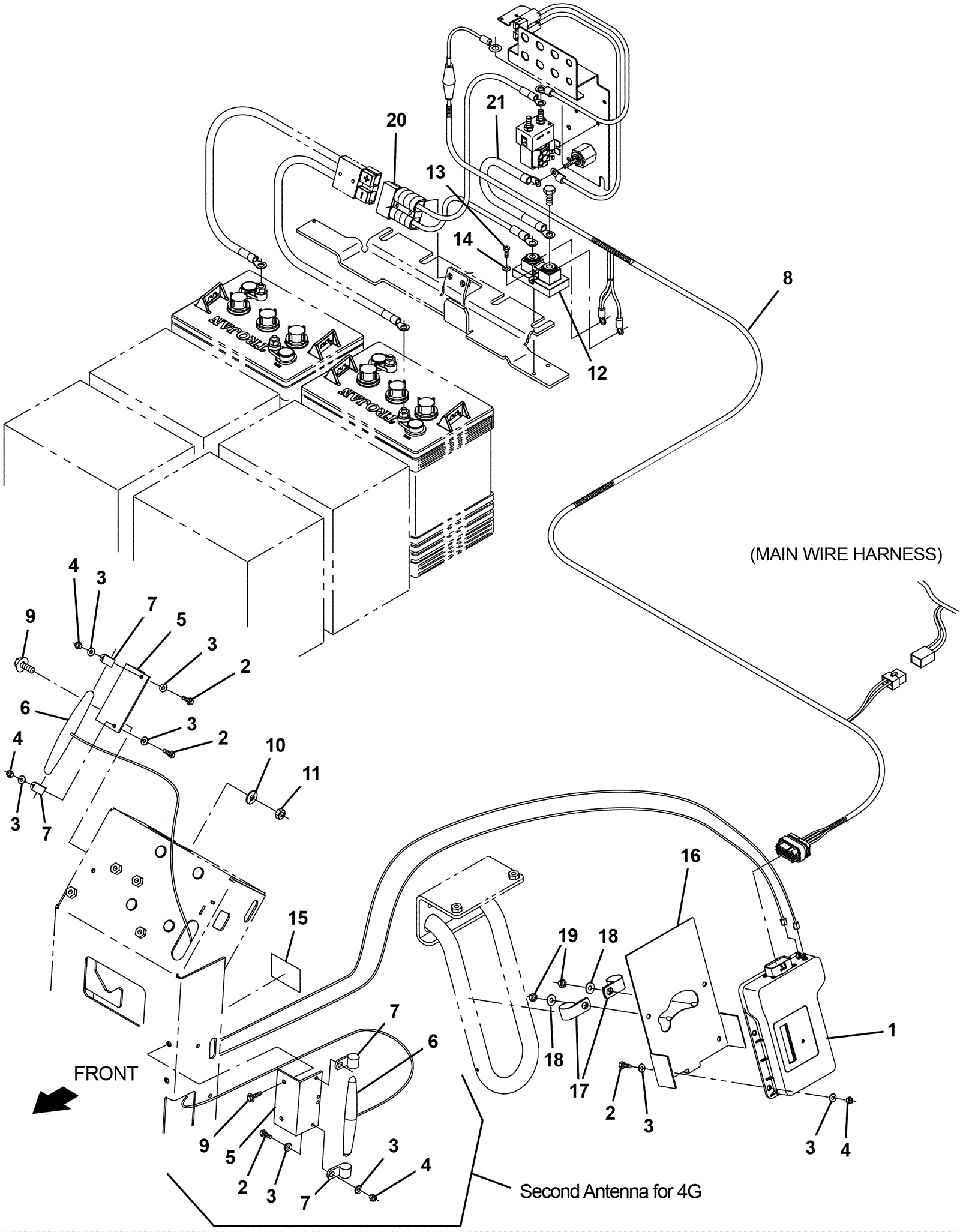

T12 Telemetry Assembly - Between SN 10967790 and SN 30000000

#PartDescriptionPriceReqNotesAvailability
1 275-2615 Telemetry control box assembly kit $1,416.91 1 usually ships 1-5 days
2 175-6939 Screw M5 x 16mm stainless steel $3.96 8 ships same day
3 999-0998 Washer #10 flat stainless steel $0.99 16 ships same day
4 175-2894 Nut M5-.8 hex nylon locking $3.30 8 usually ships 10-16 days
5 275-7896 Antennna mounting angle (Tennant Industrial) $30.84 2 usually ships 1-5 days
6 375-7808 Telem antenna $59.73 2 (standard) usually ships 10-16 days
7 175-0988 P clamp $4.22 4 usually ships 10-16 days
8a 275-7903 Wire harness $143.88 1 (includes 8b) usually ships 1-5 days
8b 275-7904 Fuse (Tennant Industrial) $2.17 1 usually ships 10-16 days
9a 999-0780 Screw M6-1 x 40mm hex head $0.99 4 (standard) ships same day
9b 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.49 4 (lithium-ion) ships same day
10 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 2 ships same day
11 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 2 ships same day
12 275-7898 250amp shunt $105.71 1 usually ships 1-5 days
13 175-5326 Screw 4 x 45/64 x 20 pan head stainless steel $4.36 2 usually ships 10-16 days
14 999-0377 Washer 6 SAE flat plain finish $0.99 2 ships same day
15 275-7899 Telemetry decal $74.14 1 usually ships 1-5 days
16 275-7900 Box mounting bracket $22.33 1 usually ships 1-5 days
17 175-2260 P clamp $5.28 2 usually ships 10-16 days
18 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
19 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 2 ships same day
20 275-7901 Cable assembly $265.10 1 usually ships 1-5 days
21 275-6345 Telemetry cable (black) (Tennant Industrial) $23.67 1 usually ships 1-5 days
