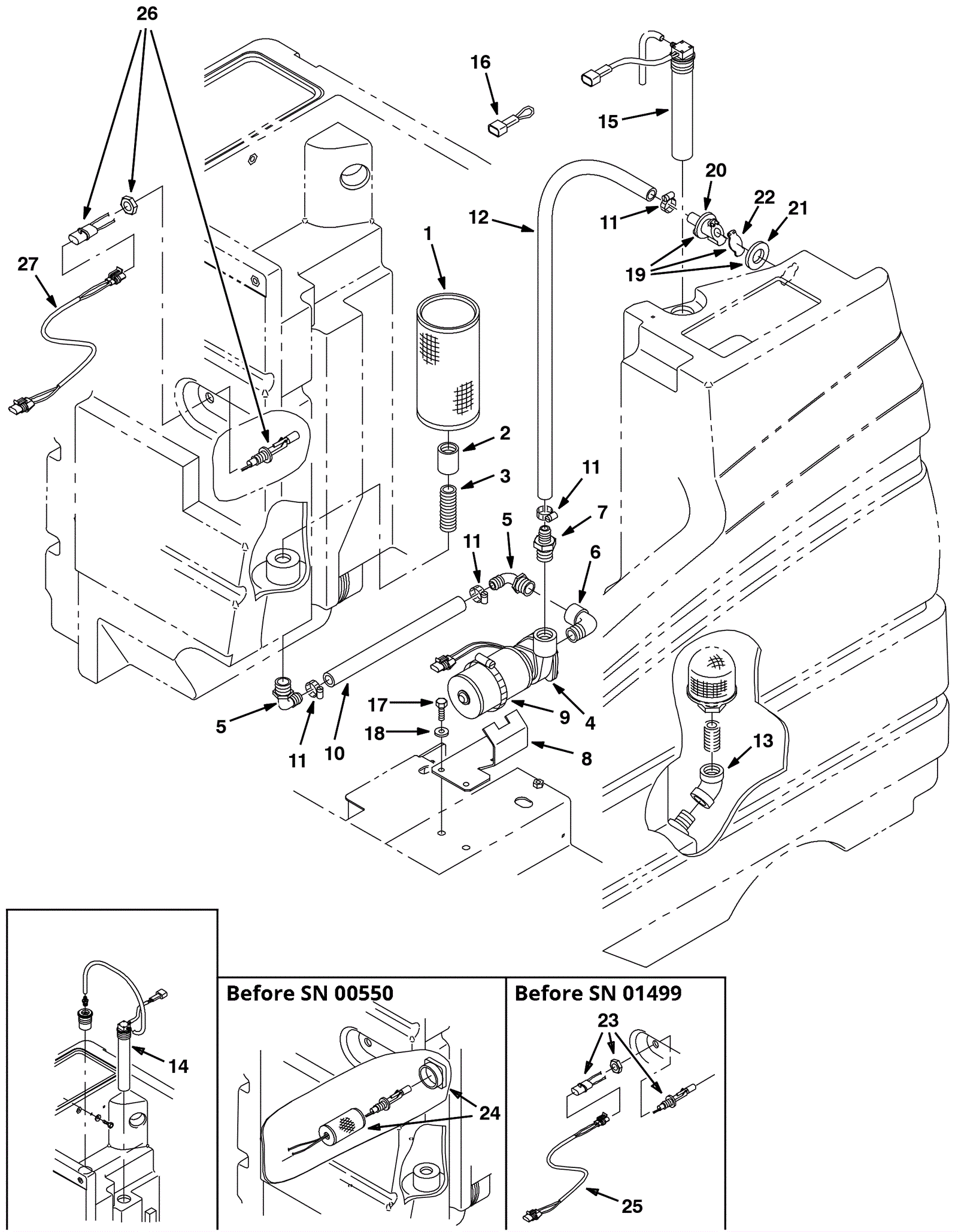

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-5252
|
Mesh solution strainer |
1 |
|
|
2 |
175-5253
|
Plastic fitting |
1 |
|
|
3 |
175-5254
|
Plastic fitting |
1 |
|
|
4 |
175-5255
|
Impeller solution pump 36vdc |
1 |
|
|
5 |
175-5256
|
Plastic fitting |
2 |
|
|
6 |
175-0662
|
90 degree plastic fitting |
1 |
|
|
7 |
175-3419
|
Plastic fitting |
1 |
|
|
8 |
475-3446
|
BRACKET, PUMP, ES |
1 |
|
|
9 |
175-5205
|
Wormdrive hose clamp |
1 |
|
|
10 |
275-8348
|
HOSE, AFMKT, PVC, BRD, 0.62ID, 01FT, CLR (Tennant Industria |
1 |
|
|
11 |
175-0199
|
Hose clamp |
4 |
|
|
12 |
275-4940
|
3 foot PVC hose (Tennant Industrial) |
1 |
|
|
13 |
175-9668
|
45 degree elbow plastic fitting |
1 |
|
|
14 |
275-2589
|
14 inch press switch tube |
1 |
|
|
15 |
175-3372
|
3 inch press switch assembly 8 inch tube |
1 |
|
|
16 |
475-3331
|
HARNESS, JUMPER [MP] |
1 |
|
|
17 |
999-0783
|
Screw M8-1.25 x 16mm hex head |
2 |
|
|
18 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
|
|
19 |
175-0675
|
Valve check kit |
1 |
(includes 20-22) |
|
20 |
175-5260
|
VR, VALVE, CHECK, PUMP, WATER (Tennant Industrial) |
1 |
|
|
21 |
175-5261
|
VR, GASKET, .25 1.88D 1.0ID [PORON] (Tennant Industrial) |
1 |
|
|
22 |
175-5262
|
VR, FLAPPER, VALVE, PUMP, WATER (Tennant Industrial) |
1 |
|
|
23 |
175-2262
|
Magnetic float sensor |
1 |
(before SN 01499) |
|
24 |
N/A
|
Not available |
1 |
(switch guard solution strainer) (before SN 00550) |
|
25 |
275-8344
|
HARNESS, SENSOR, JUMPER (Tennant Industrial) |
1 |
(before SN 01499) |
|
26 |
175-9554
|
Float switch |
1 |
(after SN 01498) |
|
27 |
475-3375
|
HARNESS, SENSOR, JUMPER |
1 |
(after SN 01498) |
|
