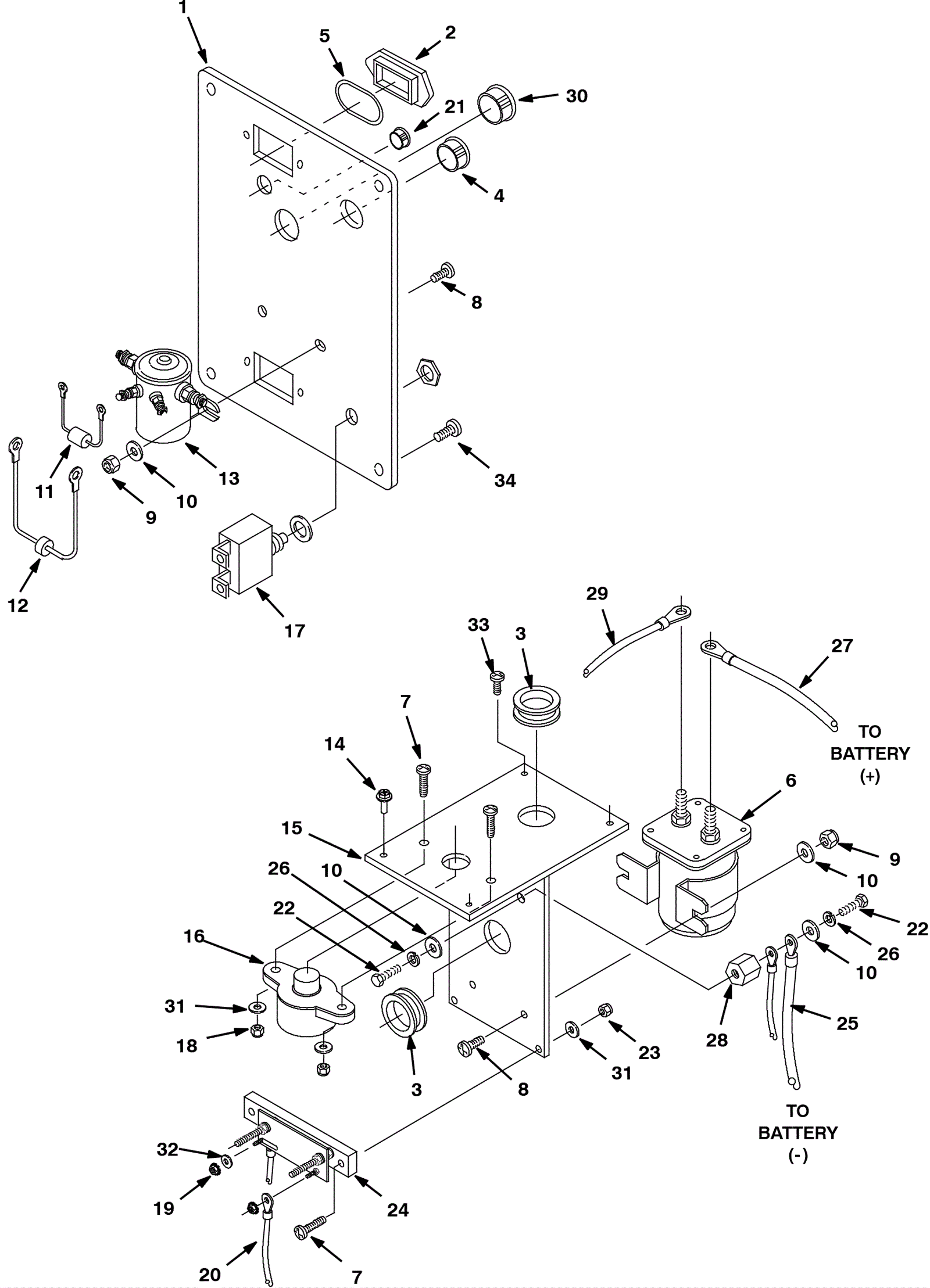

2510 Hour Meter, Emergency Stop, and Keyswitch Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-1173 Control panel plate $35.09 1 usually ships 1-5 days
2 175-3646 Hour meter plug $9.79 2 ships same day
3 175-1179 Grommet $16.28 2 usually ships 1-5 days
4 175-3127 Plug $3.96 1 usually ships 5-16 days
5 175-3144 O-ring $3.41 2 usually ships 5-16 days
6 275-0639 36V solenoid $150.48 1 usually ships 5-16 days
7 999-1671 Screw M5-.8 x 20mm pan head phillips stainless steel $0.99 4 ships same day
8 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel $0.99 4 ships same day
9 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 4 ships same day
10 999-0016 Washer 1/4 flat plain finish $0.99 6 ships same day
11 175-2757 Diode with ring terminals (small) $11.11 1 usually ships 5-16 days
12 175-1182 Diode with ring terminals (large) $14.41 1 usually ships 5-16 days
13 175-1183 36V solenoid $117.37 1 usually ships 5-16 days
14 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 3 ships same day
15 175-1184 Bracket $78.54 1 usually ships 1-5 days
16 175-1185 80amp circuit breaker $151.47 1 usually ships 5-16 days
17 175-1186 15amp circuit breaker $17.93 1 ships same day
18 999-0740 Nut M5-.8 hex stainless steel $0.99 2 ships same day
19 999-0015 Nut 1/4-20 k-lock zinc plated $0.99 2 ships same day
20 175-1187 6 inch wire assembly (black) $24.09 1 usually ships 1-5 days
21 175-1206 Dome plug (OBSOLETE) $1.85 1 usually ships 1-5 days
22 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel $0.99 2 ships same day
23 999-0740 Nut M5-.8 hex stainless steel $0.99 2 ships same day
24 175-1189 Shunt $86.79 1 usually ships 5-16 days
25 175-1190 27 inch wire assembly (black) (OBSOLETE) $42.24 1 usually ships 5-16 days
26 999-0632 Washer 1/4 split lock stainless steel $0.99 2 ships same day
27 175-1191 46 inch wire assembly (red) $43.34 1 usually ships 5-16 days
28 175-3226 Insulated stand off $9.35 1 ships same day
29 175-1192 6 inch wire assembly (black) $28.93 1 usually ships 5-16 days
30 175-3126 Plug $3.96 1 ships same day
31 999-0393 Washer 3/16 flat aluminum $0.99 4 ships same day
32 999-1215 Washer #6 SAE flat zinc plated $0.99 1 ships same day
33 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel $1.54 1 ships same day
34 175-4398 Screw M5-.8 x 10mm phillips truss head zinc $3.08 4 usually ships 5-16 days
