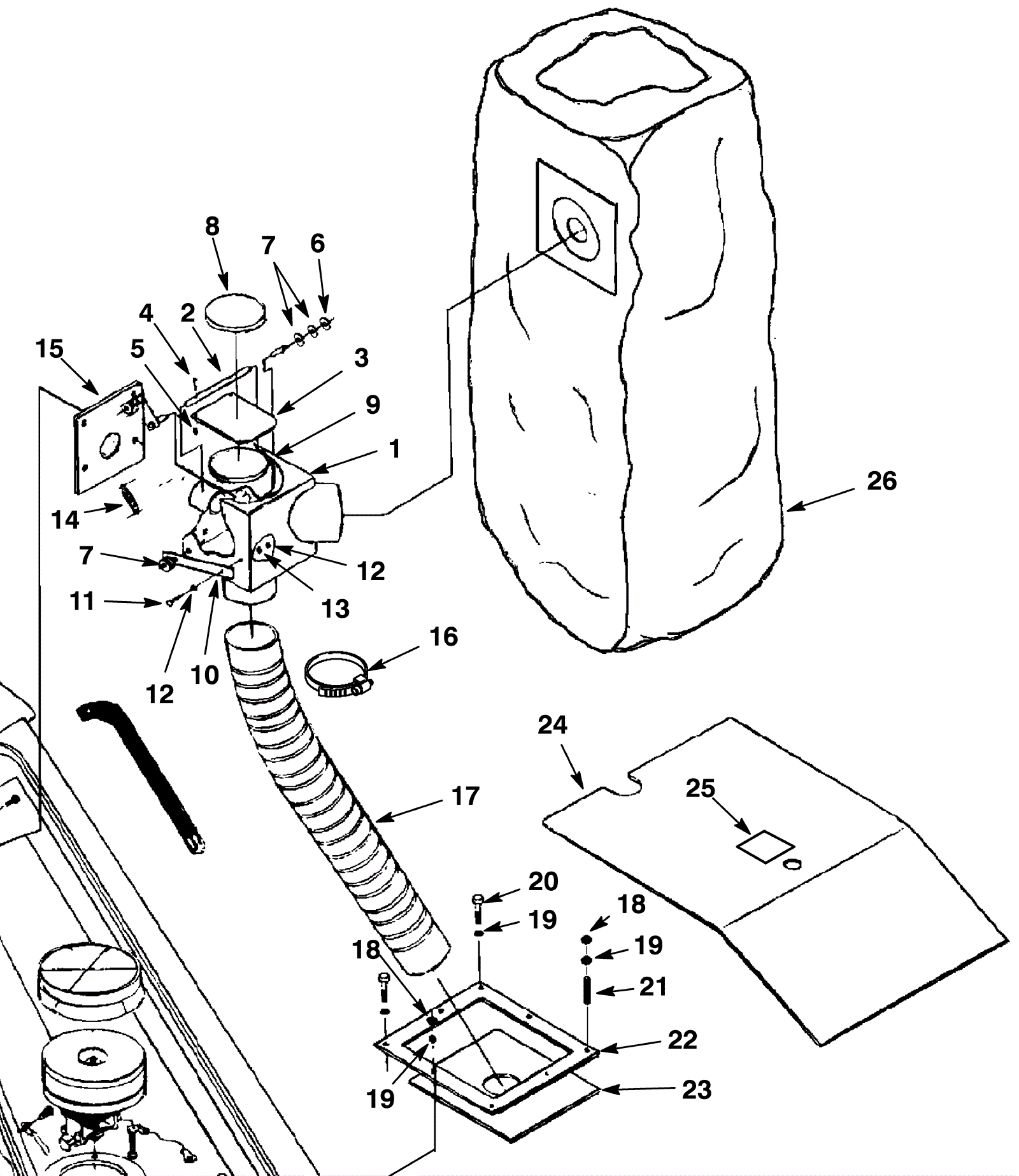

V-WA-30 Chamber Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-4529 Vacuum chamber $206.47 1 usually ships 1-5 days
2 175-4530 Chamber adaptor rod $134.20 1 usually ships 1-5 days
3 175-4531 Chamber adaptor plate $33.22 1 usually ships 1-5 days
4 275-8019 Screw M04 X 12 mm $4.49 2 usually ships 1-5 days
5 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 9 ships same day
6 275-8020 E-ring $3.17 1 usually ships 1-5 days
7 999-0024 Washer 5/16 flat stainless steel $1.34 3 usually ships 12-18 days
8 175-4535 Upper chamber gasket $13.64 1 usually ships 1-5 days
9 175-4536 Lower chamber gasket $84.37 1 usually ships 1-5 days
10 175-4537 Spring support $31.24 1 usually ships 1-5 days
11 175-4538 Screw M4 x 20mm $4.36 1 usually ships 1-5 days
12 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 2 ships same day
13 999-0266 Washer #8 SAE flat stainless steel $0.99 8 ships same day
14 175-4539 Chamber adaptor spring $12.87 1 usually ships 1-5 days
15 175-4540 Chamber gasket $5.83 1 usually ships 1-5 days
16 275-8022 4 inch hose clamp (OBSOLETE) $4.49 2 usually ships 1-5 days
17 275-8021 Hose 3 X 23 inch (black) $72.27 1 usually ships 10-16 days
18 999-0439 Nut M6-1 hex coarse thread $0.99 6 ships same day
19 175-4544 Washer M6 locking $4.49 8 ships same day
20 999-0779 Screw M6-1 x 25mm hex head plain finish $0.99 2 ships same day
21 175-4543 Screw M6 x 30 set $5.50 1 usually ships 1-5 days
22 175-4541 Seal plate $43.56 1 usually ships 1-5 days
23 175-4542 Seal $14.96 1 usually ships 10-16 days
24 275-6251 Vacfan cover $145.20 1 usually ships 10-16 days
25 175-4564 Warning vacuum fans decal $29.81 1 usually ships 1-5 days
26a 175-4565 Vacuum cloth bag $123.97 1 usually ships 10-16 days
26b 175-9637 Paper filter bag (pkg of 10) $28.38 1 ships same day
