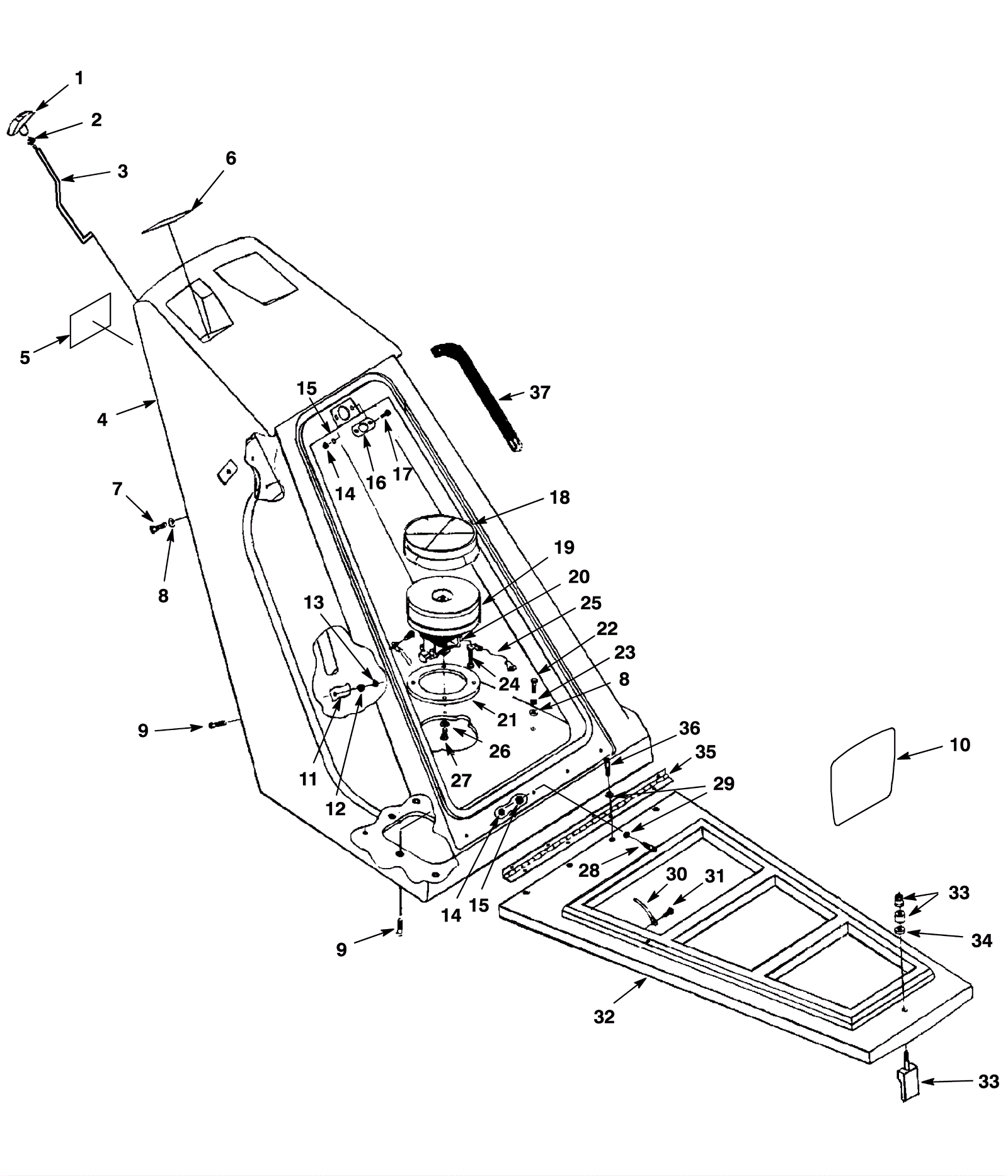

V-WA-30 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-8018 Chamber rod knob $15.73 1 usually ships 1-5 days
2 999-0181 Nut 1/4-20 hex jam plain finish $0.99 1 ships same day
3 175-4528 Chamber rod $134.64 1 usually ships 10-16 days
4 275-5358 Handle $359.37 1 (includes 5 and 6) usually ships 1-5 days
5 275-8006 Warning decal $14.52 1 usually ships 1-5 days
6 175-4568 Caution vacuum on decal $5.50 1 usually ships 1-5 days
7 999-1080 Screw 1/4-20 x 5/8 truss head phillips stainless steel $0.99 4 ships same day
8 999-0006 Washer 3/16 flat zinc plated $0.99 10 ships same day
9 999-1224 Screw M6-1 x 20mm flat head phillips stainless steel $2.48 6 ships same day
10 275-9848 Tennant/Nobles decal $8.03 1 usually ships 10-16 days
11 275-8023 Clamp $5.83 1 usually ships 1-5 days
12 999-0006 Washer 3/16 flat zinc plated $0.99 1 ships same day
13 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 1 ships same day
14 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 9 ships same day
15 999-0266 Washer #8 SAE flat stainless steel $0.99 8 ships same day
16 175-4554 Latch plate $38.39 1 usually ships 1-5 days
17 175-4555 Screw M4 x 16mm $2.24 2 usually ships 1-5 days
18 991-5119 Vacuum motor filter $1.80 2 ships same day
19a 175-4547 Vacuum motor with gasket $281.71 2 (includes 19b-21b) usually ships 10-16 days
19b 175-8984 120V vacuum motor $237.60 2 usually ships 10-16 days
20 175-0044 Carbon brush $28.16 2 ships same day
21a 175-0249 Vacuum motor gasket $10.67 2 usually ships 10-16 days
21b 175-0142 1/4 inch male terminal $5.28 4 usually ships 10-16 days
22 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 6 ships same day
23 999-0364 Washer #6 internal star lock zinc plated $0.99 6 ships same day
24 175-4550 Ground screw $3.30 2 usually ships 1-5 days
25 175-4549 Green wire assembly $5.94 2 usually ships 1-5 days
26 999-0998 Washer #10 flat stainless steel $0.99 8 ships same day
27 175-4548 Screw 10-24 x 1 pan head phillips zinc $4.36 8 usually ships 1-5 days
28 175-0914 Screw pan head phillips $3.17 5 usually ships 1-5 days
29 175-4557 Washer $3.70 9 usually ships 1-5 days
30 175-4558 Door cable $15.07 1 usually ships 1-5 days
31 175-4559 Screw 16 mm $2.24 2 usually ships 1-5 days
32 275-5359 Cover $507.54 1 usually ships 1-5 days
33 175-4561 Cover swell latch $66.11 1 usually ships 10-16 days
34 175-6139 Spacer $5.15 1 usually ships 10-16 days
35 175-4556 Hinge $22.22 1 usually ships 1-5 days
36 999-0530 Screw M4-.7 x 8mm pan head slotted zinc $0.99 4 ships same day
37 175-4562 Door opening gasket $45.87 1 usually ships 1-5 days
