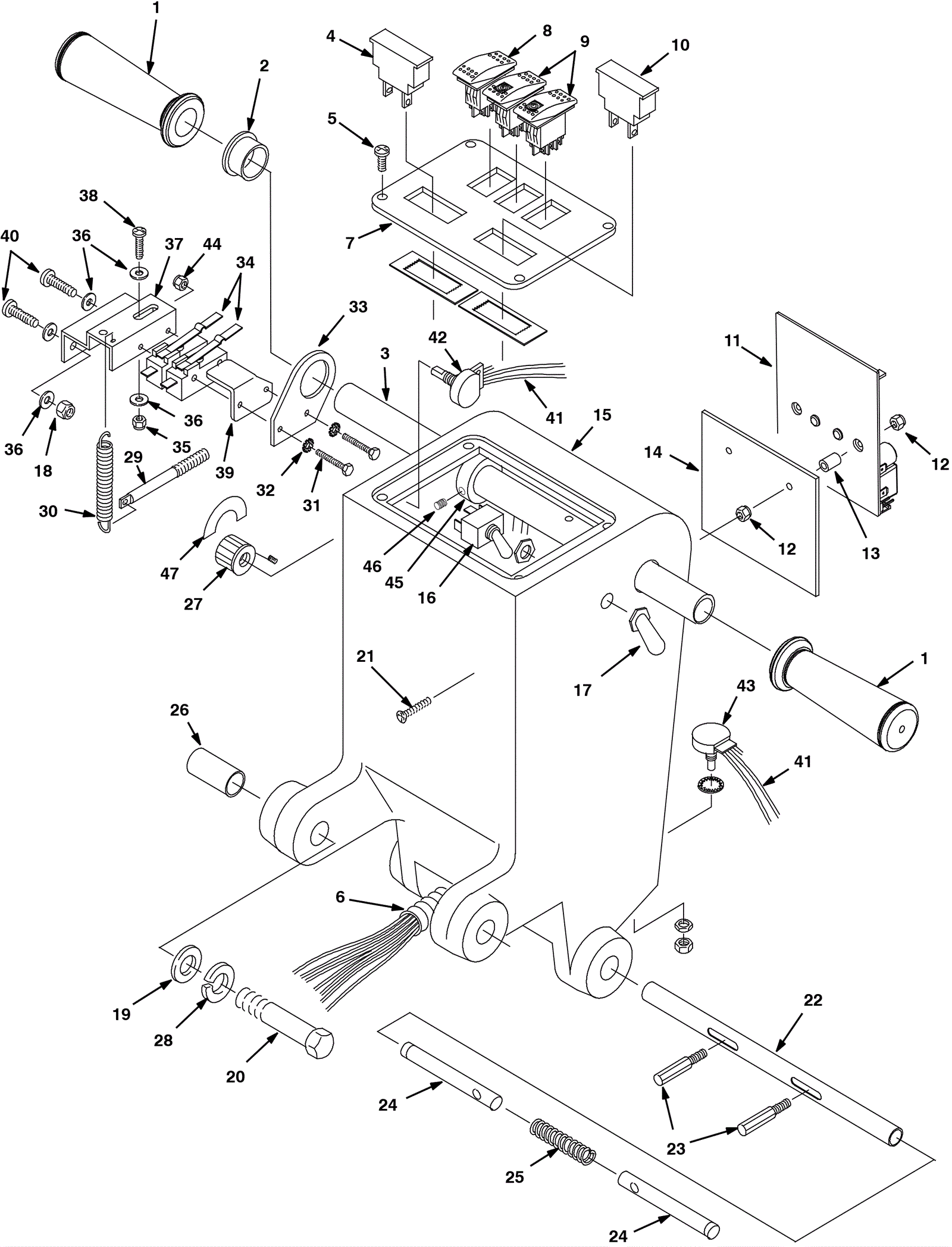

Control Console Assembly

#PartDescription ReqNotesAvailability
1 675-9894 Handle grip 2
2 175-3093 Flanged bushing 1
3 175-3094 Handle tube 1
4 175-1159 Pad pressure gauge 1
5 175-4398 Screw M5-.8 x 10mm phillips truss head zinc 4
6a 275-0637 Main wiring harness 1
6b 175-1167 Sheathing 1
7 175-1160 Control panel plate 1
8 175-3097 Momentary rocker switch (OBSOLETE) 1
9 175-3098 Lighted on/off rocker switch 2
10 175-1161 36V battery voltage meter 1
11 275-5230 36V propel controller (OBSOLETE) 1
12 999-0954 Nut M4-.7 nylon insert lock stainless steel 4
13 175-3100 Spacer 2
14 175-3101 Heat sink 1
15 175-4825 Control housing (teal) 1
16 175-3103 Toggle switch 1
17 175-3104 Switch boot 1
18 999-0497 Nut M6-1 nylon insert lock stainless steel 2
19 999-0559 Washer 1/2 x 1/4 flat stainless steel 2
20 999-0619 Screw 10-24 x 3/4 truss head slotted stainless steel 2
21 175-3107 Screw M4-.7 x 35mm flat head phillips 2
22 175-3108 Handle adjustment tube 1
23 175-2710 Handle adjustment pin 2
24 175-3109 Handle locking pin 2
25 175-2712 Spring 1
26 175-2714 Bushing 2
27 175-1163 Speed control knob 1
28 999-0126 Washer 1/2 split lock 2
29 175-3112 Spring return pin 1
30 175-3113 Extension spring 1
31 275-5232 Screw 6-32 x 1 3/4 hex stainless steel 2
32 999-0148 Washer #6 external star lock zinc plated 2
33 175-3115 Switch bracket 1
34 175-3116 Snap switch 2
35 999-0442 Nut 10-24 nylon insert lock stainless steel 1
36 999-0016 Washer 1/4 flat plain finish 5
37 175-3117 Switch mount 1
38 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated 1
39 175-3122 Switch plate 1
40 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel 2
41 175-3120 Console harness with potentiometer 1 (includes 42-43)
42 175-3105 Potentiometer 1
43 175-3106 Lockable potentiometer 1
44 999-0195 Nut 6-32 hex plain 2
45 175-1168 Handle collar 2
46 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish 2
47 175-1169 Speed control decal 1
