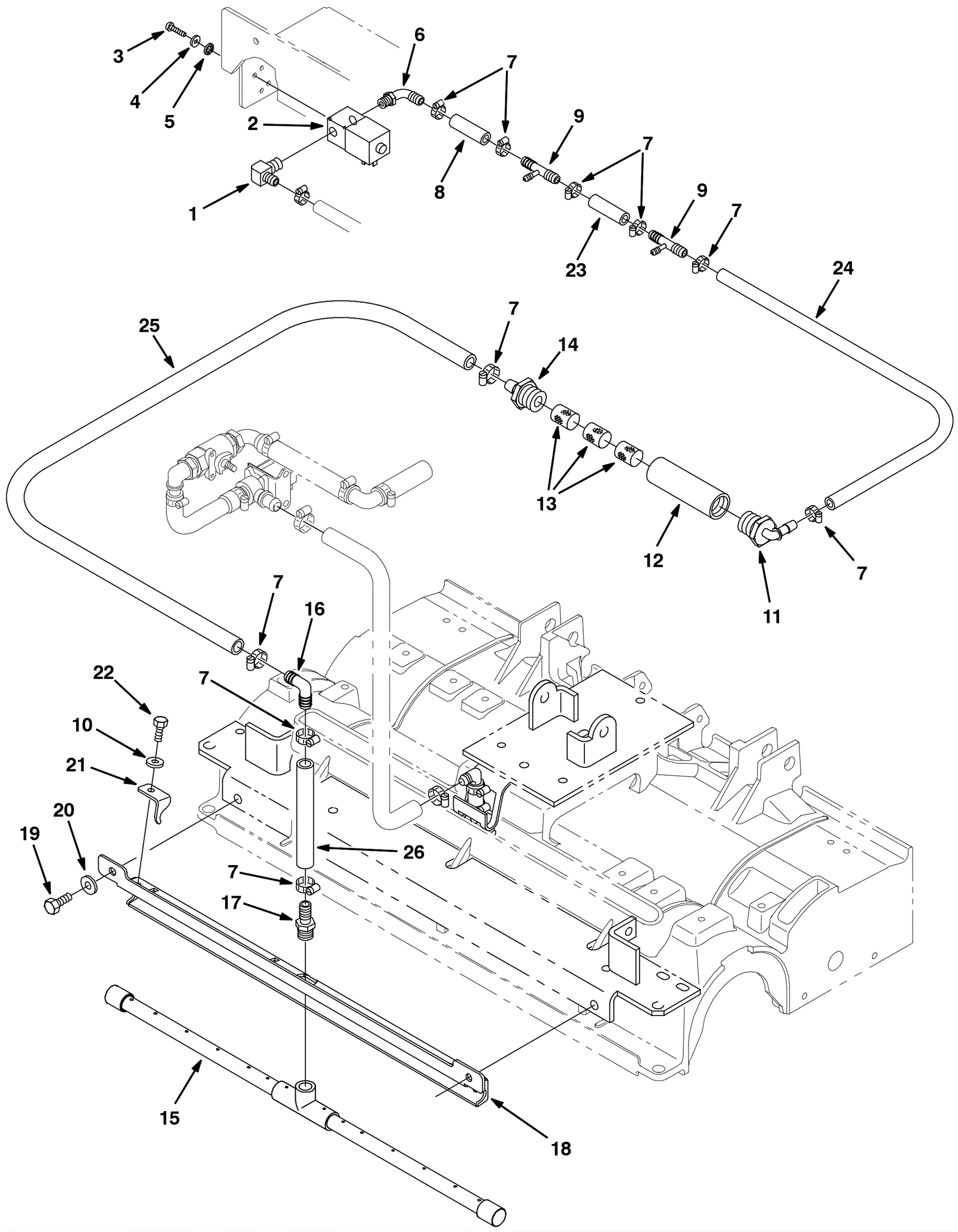

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-5226
|
Brass fitting |
1 |
|
|
2 |
275-4671
|
Solenoid water valve |
1 |
|
|
3 |
175-3234
|
Screw M5-.8 x 10mm pan head |
2 |
|
|
4 |
999-0998
|
Washer #10 flat stainless steel |
2 |
|
|
5 |
999-0089
|
Washer #10 internal star lock zinc plated |
2 |
|
|
6 |
175-5228
|
Plastic fitting |
1 |
|
|
7 |
175-6081
|
Hose clamp |
10 |
|
|
8 |
175-5249
|
Hose 1/2 x 1 foot (Tennant Industrial) |
1 |
|
|
9 |
175-5230
|
Plastic tee fitting |
2 |
|
|
10 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
3 |
|
|
11 |
175-3430
|
Plastic fitting |
1 |
|
|
12 |
175-3596
|
Plastic tube |
1 |
|
|
13 |
175-3597
|
Foam filter |
3 |
|
|
14 |
175-2523
|
Plastic fitting |
1 |
|
|
15 |
175-5232
|
32 inch spray tube assembly |
1 |
|
|
16 |
175-5233
|
Plastic fitting |
1 |
|
|
17 |
175-5234
|
Plastic fitting |
1 |
|
|
18 |
175-5235
|
32 and 36 inch spray bar bracket weldment |
1 |
|
|
19 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
2 |
|
|
20 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
|
|
21 |
175-5236
|
Spray bar bracket |
3 |
|
|
22 |
999-9116
|
Screw M6-1 x 12mm hex head stainless steel |
3 |
|
|
23 |
175-5249
|
Hose 1/2 x 1 foot (Tennant Industrial) |
1 |
|
|
24 |
175-5229
|
HOSE, AFMKT, PVC, BRD, 0.50ID, 02FT, CLR (Tennant Industria |
1 |
|
|
25 |
175-5229
|
HOSE, AFMKT, PVC, BRD, 0.50ID, 02FT, CLR (Tennant Industria |
1 |
|
|
26 |
175-5249
|
Hose 1/2 x 1 foot (Tennant Industrial) |
1 |
|
|
