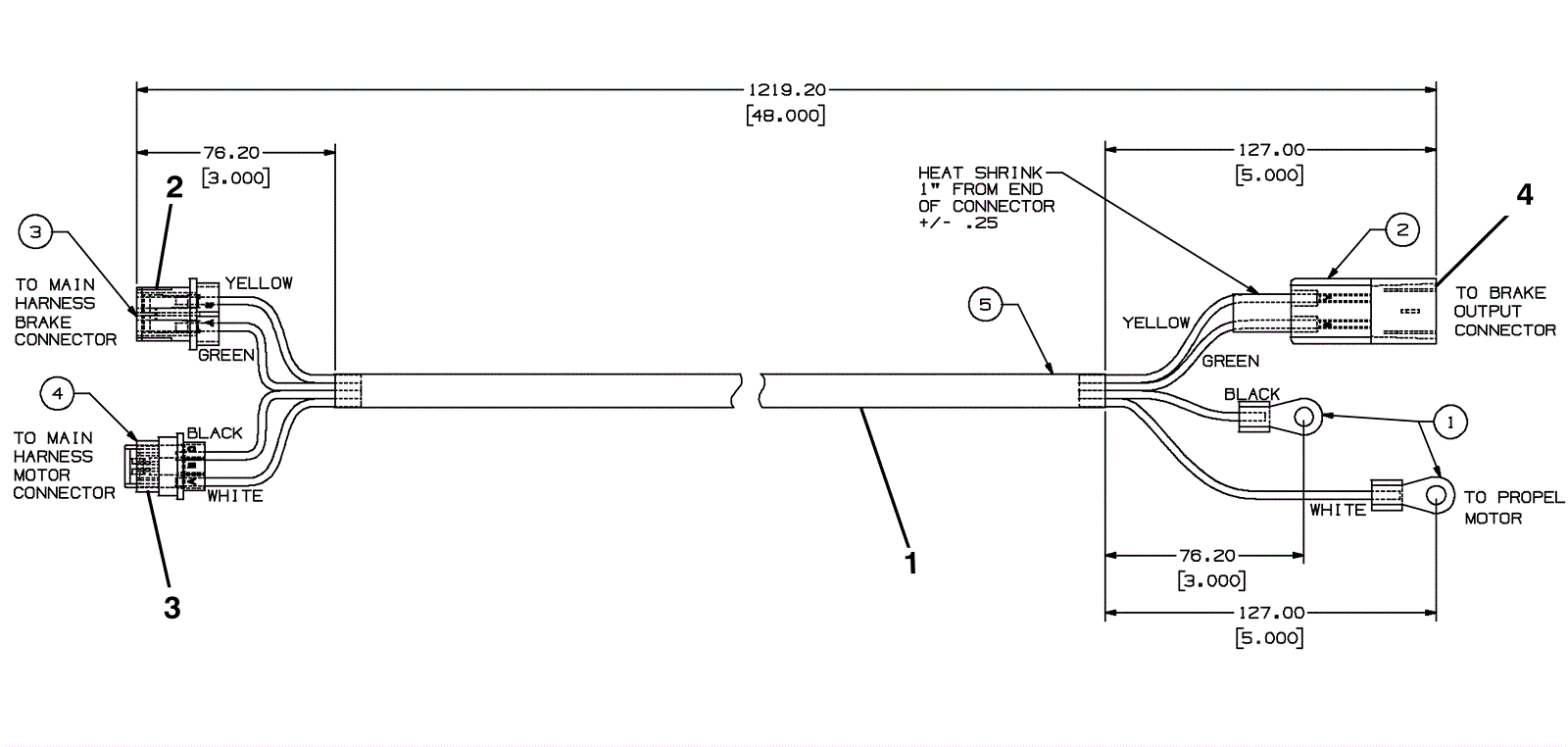

B10 Motor Brake Harness Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-7037 Brake harness $69.85 1 (includes 2a-4b) ships same day
2a 175-8753 Female connector $7.48 1 ships same day
2b 275-8096 Female terminal $3.30 2 ships same day
2c 275-8097 Wire seal $3.41 2 ships same day
2d 175-8756 Male and female secondary lock $3.96 1 usually ships 5-16 days
3 275-9355 Female connector $15.95 1 ships same day
4a 275-7110 Male connector (Tennant Industrial) $7.52 1 usually ships 1-5 days
4b 275-7111 Male terminal (Tennant Industrial) $5.01 2 usually ships 1-5 days
