B10

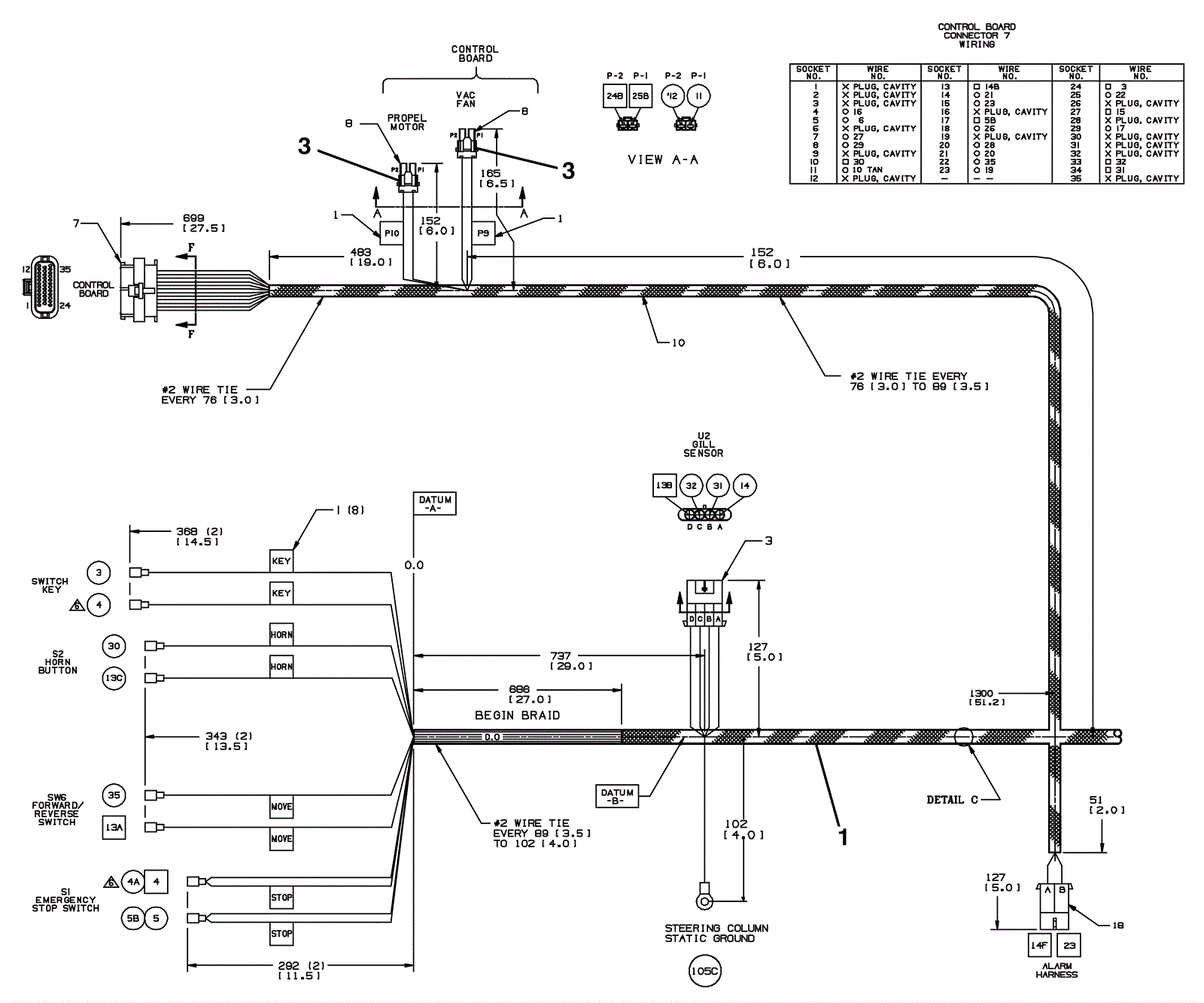

Main Harness Assembly - 3
Click to enlarge
#
Part
Description
Price
Req
Notes
Availability
1
275-7107
Main harness
$527.23
1
(includes 2-3)
usually ships 5-16 days
2
175-2216
Diode plug
$12.87
2
ships same day
3
275-4933
Female body connector (2 receptacles)
$17.05
2
usually ships 5-16 days
