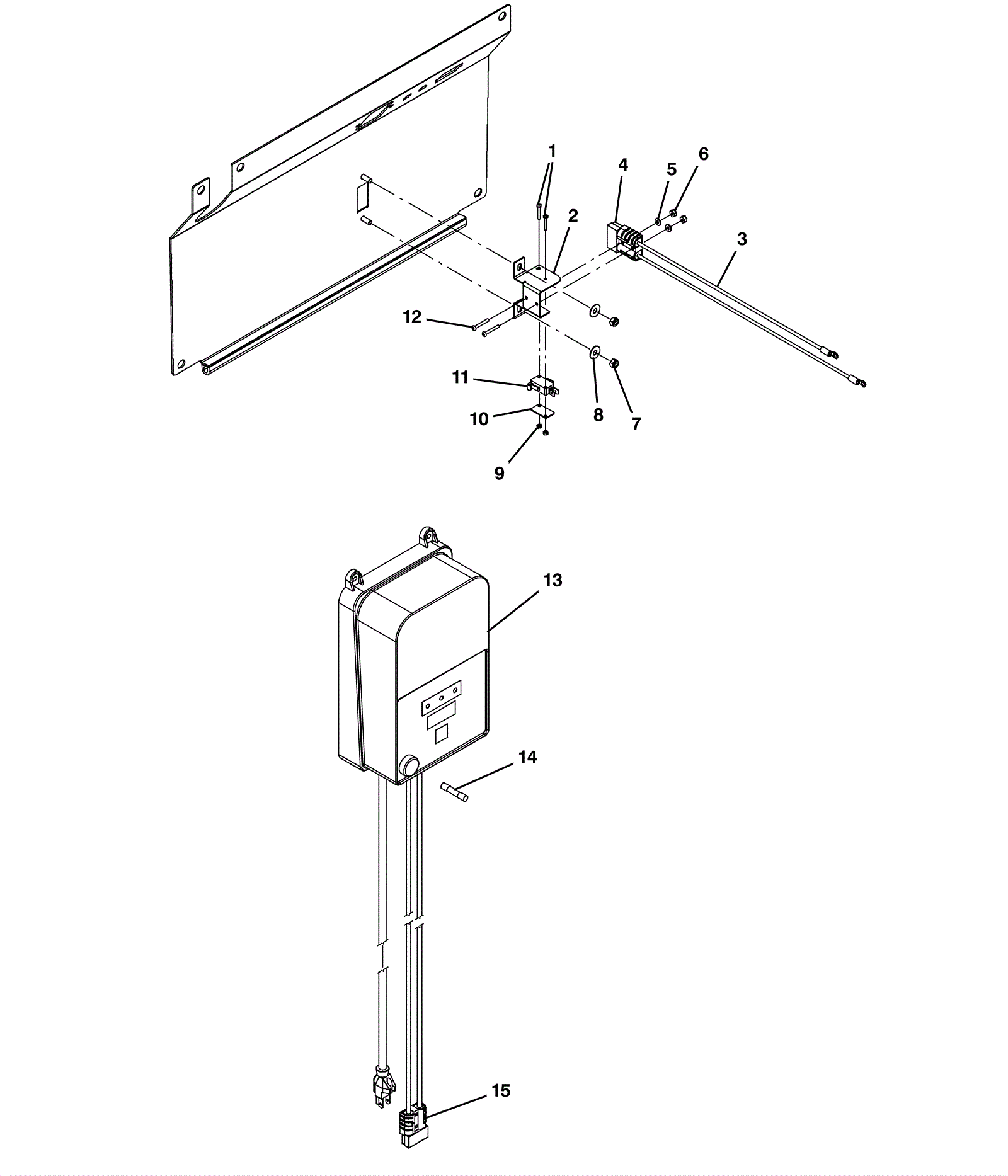

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-1040
|
Screw M3-.5 x 20mm pan head |
2 |
|
|
2 |
275-7070
|
Plug bracket |
1 |
|
|
3 |
275-7093
|
Charger harness |
1 |
(includes 4) |
|
4 |
991-2105
|
SB50 50amp charger plug with pins (gray) |
1 |
|
|
5 |
999-0377
|
Washer 6 SAE flat plain finish |
2 |
|
|
6 |
175-3224
|
Nut 6-32 hex lock |
2 |
|
|
7 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
2 |
|
|
8 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
|
9 |
999-1161
|
Nut M3-.5 hex nylock stainless steel |
2 |
|
|
10 |
175-1200
|
Switch backing plate |
1 |
|
|
11 |
175-1199
|
Snap switch |
1 |
|
|
12 |
275-8223
|
SCREW, PAN, PHL, 06-32 X 1.00, G1 (Tennant Industrial) |
2 |
|
|
13 |
275-7094
|
36V off board battery charger kit |
1 |
(includes 14-15) |
|
14 |
275-7092
|
15amp fuse |
1 |
|
|
15 |
991-2105
|
SB50 50amp charger plug with pins (gray) |
1 |
|
|
