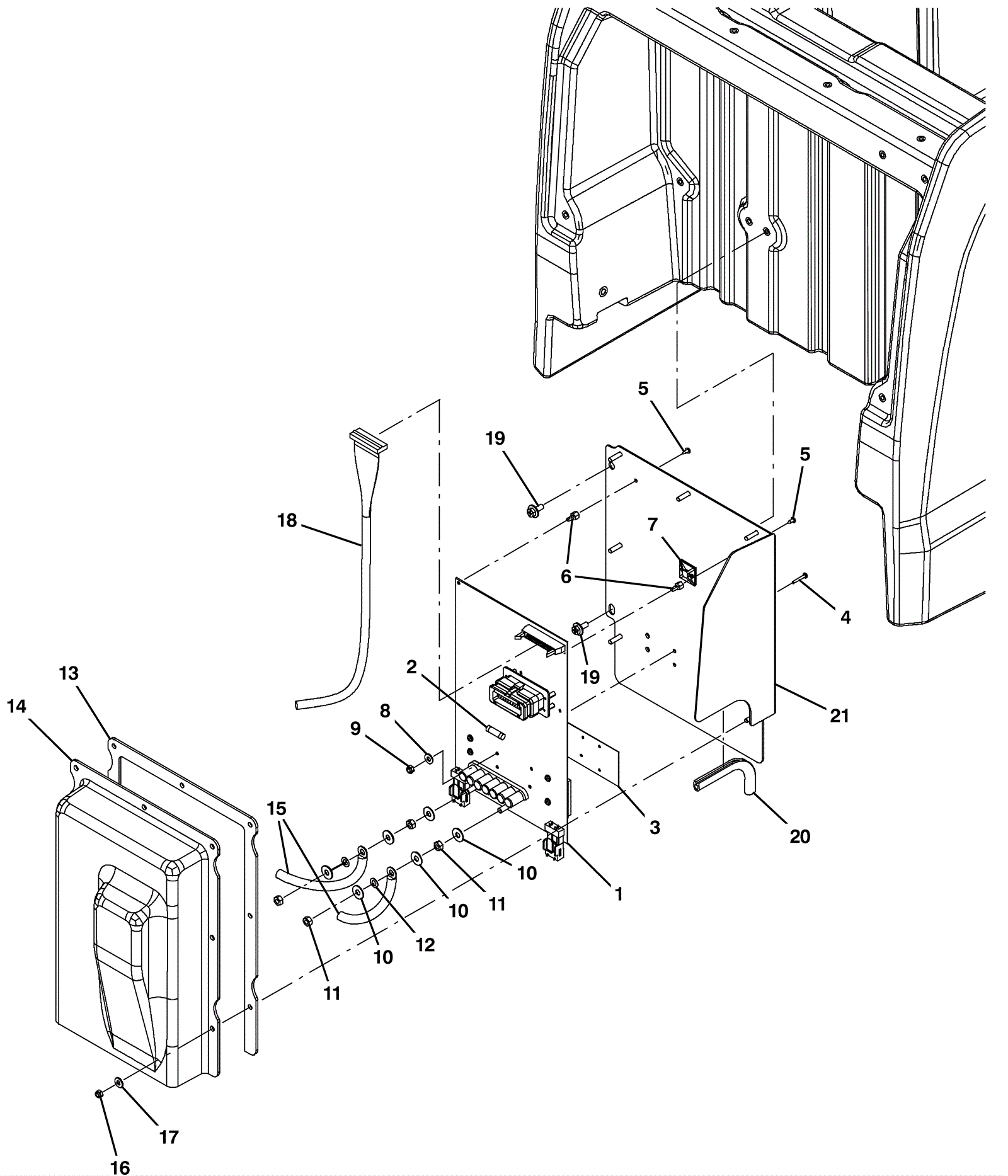

B10 Circuit Board Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-7082 Circuit board kit $2,728.11 1 (includes 2-3) usually ships 5-16 days
2 275-1584 15amp fuse $3.30 1 usually ships 5-16 days
3 275-1426 Heat sink thermal pad $21.56 1 usually ships 5-16 days
4 999-1040 Screw M3-.5 x 20mm pan head $0.99 4 ships same day
5 999-0434 Screw 6 x 3/8 pan head phillips $0.99 2 ships same day
6 275-1430 Circuit board support $5.28 2 usually ships 1-5 days
7 175-3233 Cable tie mount $3.41 1 usually ships 1-5 days
8 275-1431 Washer 0.14b x 0.31d flat $3.08 4 usually ships 1-5 days
9 999-1161 Nut M3-.5 hex nylock stainless steel $0.99 4 ships same day
10 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 6 ships same day
11 999-1308 Nut M6-1 hex stainless steel $0.99 4 ships same day
12 999-0238 Washer 1/4 internal star lock zinc plated $0.99 2 ships same day
13 275-7083 Rubber seal $22.00 1 usually ships 1-5 days
14 275-7084 Circuit board cover $356.29 1 usually ships 1-5 days
15 275-7085 Control board harness $50.27 1 usually ships 1-5 days
16 999-0740 Nut M5-.8 hex stainless steel $0.99 7 ships same day
17 999-0998 Washer #10 flat stainless steel $0.99 7 ships same day
18 275-8217 Ribbon cable $165.11 1 usually ships 5-16 days
19 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 4 ships same day
20 275-8203 Molding $44.22 1 usually ships 1-5 days
21 275-7086 Circuit board panel $41.36 1 usually ships 1-5 days
