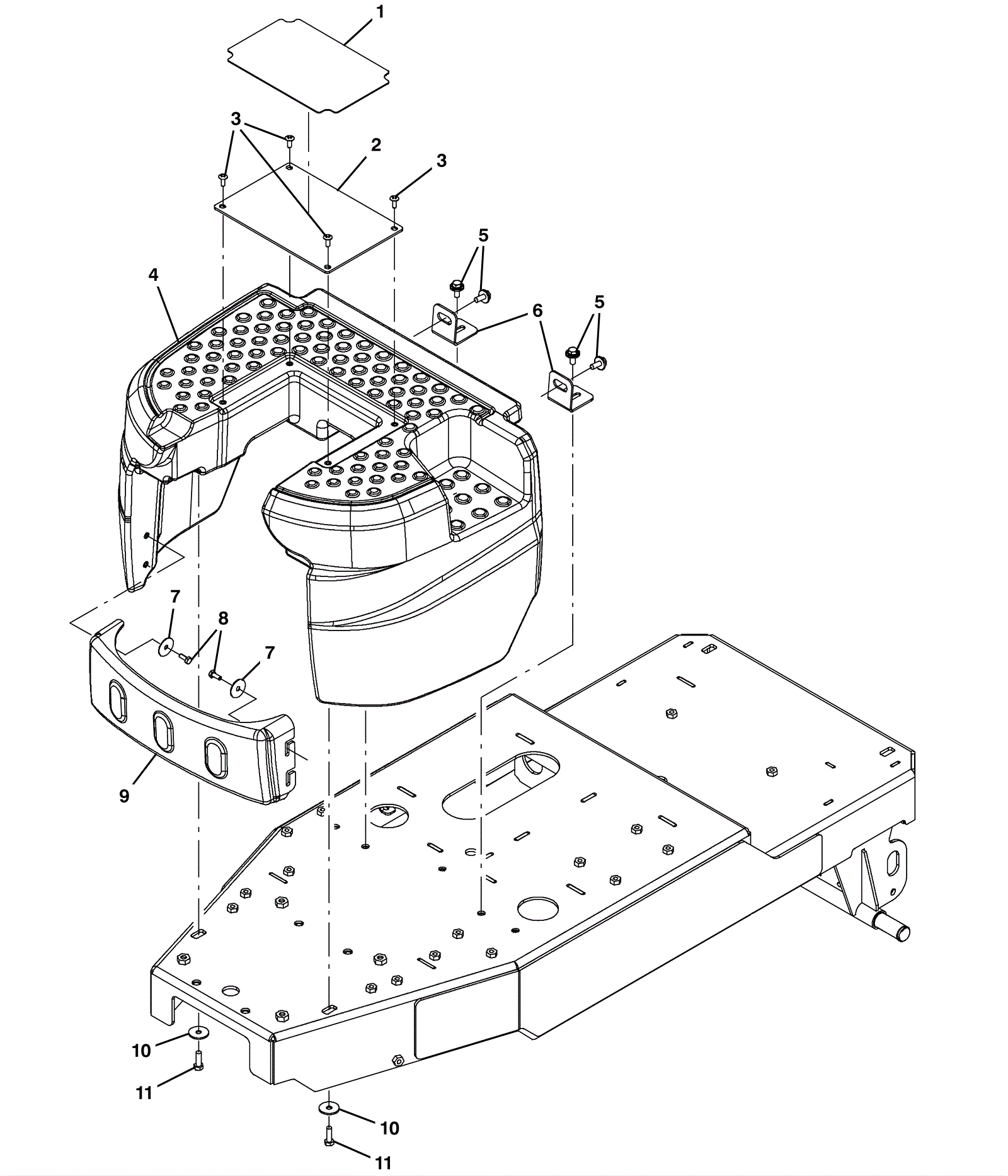

B10 Front Shroud Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-7066 Non-skid tread $10.12 1 usually ships 1-5 days
2 275-7067 Access cover $9.13 1 usually ships 1-5 days
3 275-7027 Screw M6-1 x 16mm truss head phillips $2.42 4 usually ships 5-16 days
4 275-7118 Shroud (OBSOLETE) $265.76 1 usually ships 1-5 days
5 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $3.30 4 ships same day
6 275-7068 Tank bracket $11.00 2 usually ships 1-5 days
7 999-1288 Washer 1/4 x 1 OD fender stainless steel $0.99 4 ships same day
8 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 4 ships same day
9 275-7069 Drive wheel cover $88.77 1 usually ships 1-5 days
10 999-1134 Washer 1 1/4 flat stainless steel $6.01 2 ships same day
11 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 2 ships same day
