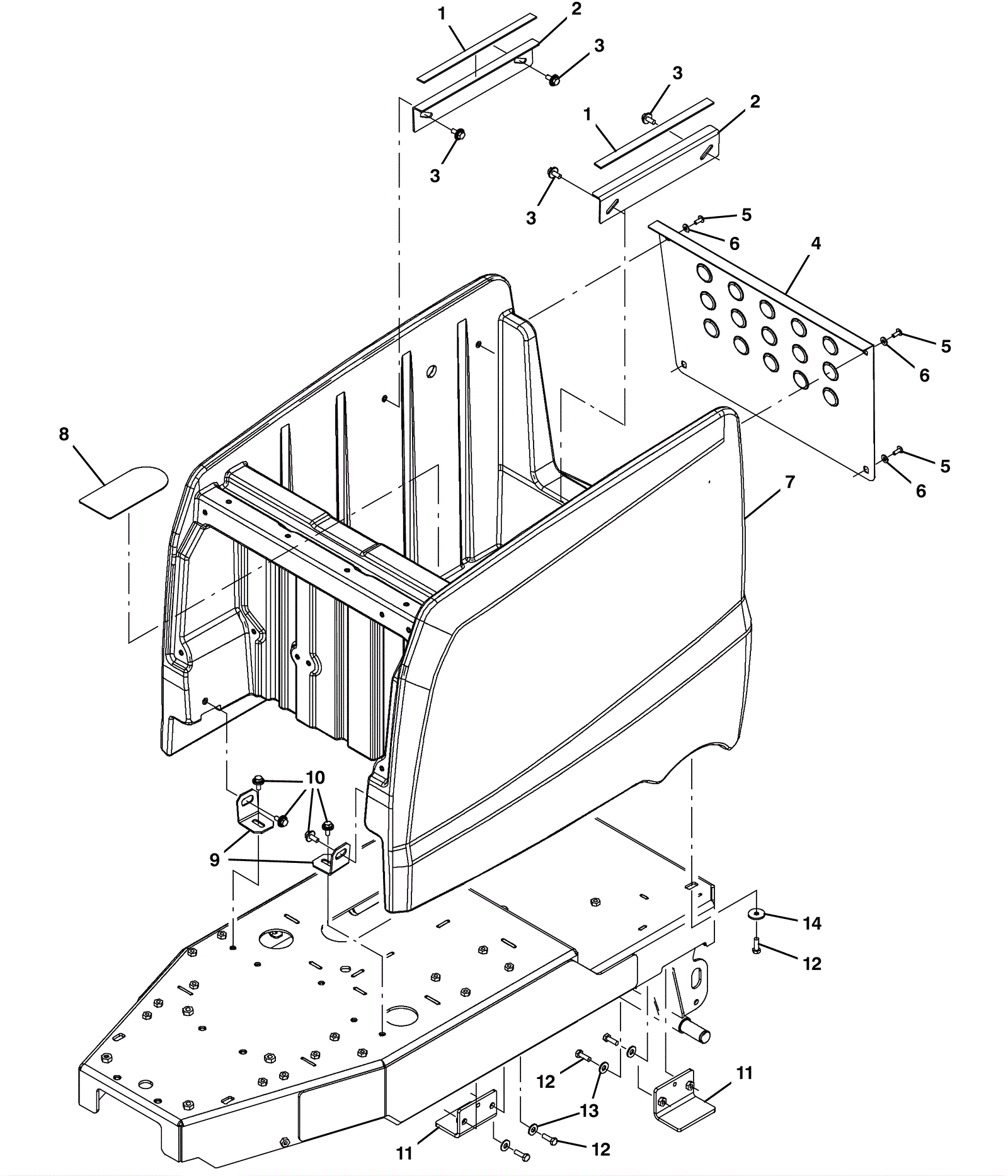

B10 Main Housing Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-7060 Adhesive rubber pad $10.56 2 usually ships 1-5 days
2 275-7061 Seat support bracket $9.68 2 usually ships 1-5 days
3 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.49 4 usually ships 13-17 days
4 275-7062 Battery access panel $100.10 1 usually ships 1-5 days
5 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 4 ships same day
6 275-7119 Main housing (OBSOLETE) $809.71 1 usually ships 1-5 days
7 275-7064 Motor cover $34.65 1 usually ships 1-5 days
8 275-8184 Tank mounting bracket $22.77 2 usually ships 1-5 days
9 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.49 4 usually ships 13-17 days
10 275-7065 Support bracket assembly $16.50 2 usually ships 1-5 days
11 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 6 ships same day
12 999-9097 Washer M8 flat stainless steel $0.99 4 ships same day
13 999-1134 Washer 1 1/4 flat stainless steel $6.01 2 ships same day
