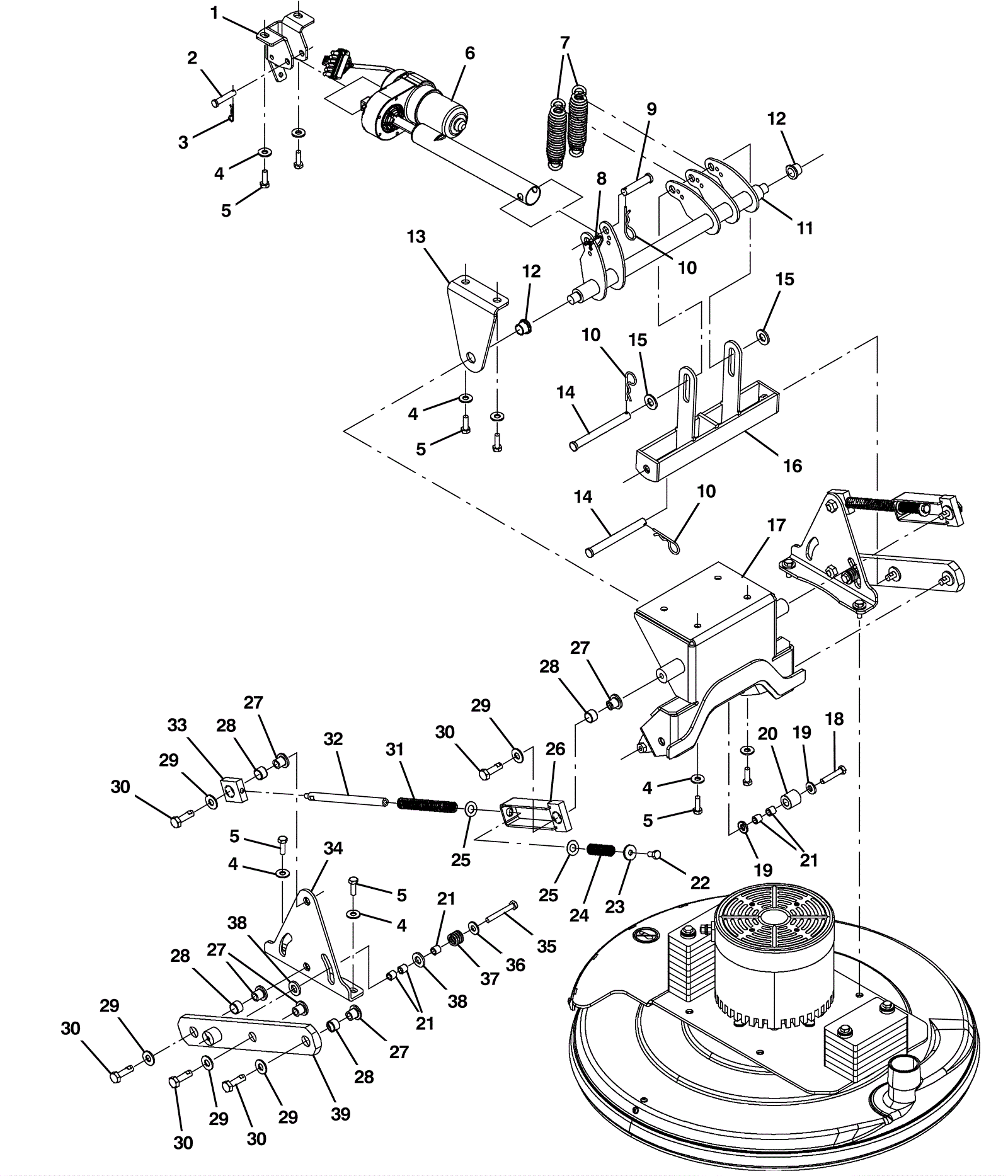

B10 Head Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-7041 Actuator bracket $11.50 1 usually ships 1-5 days
2 175-2592 Clevis Pin 0.37 D X 1.75 L $3.96 1 ships same day
3 175-2113 Cotter pin $2.42 1 ships same day
4 999-9097 Washer M8 flat stainless steel $0.99 12 ships same day
5 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 12 ships same day
6 275-7042 24V actuator $572.60 1 usually ships 6-16 days
7 275-7043 Extension spring $80.80 2 usually ships 1-5 days
8 175-7795 Cable tie $3.85 1 ships same day
9 175-9603 Clevis pin $3.60 1 usually ships 6-16 days
10 175-2106 Cotter hair pin $3.30 3 ships same day
11 275-7044 Bellcrank bracket $108.00 1 usually ships 1-5 days
12 275-7045 Flanged bushing $2.90 2 usually ships 1-5 days
13 275-7046 Pivot bracket $13.80 1 usually ships 1-5 days
14 275-3981 PIN, CLEVIS, 0.50D X 5.00L (Tennant Industrial) $17.70 2 usually ships 1-5 days
15 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
16 275-7047 Actuator lift weldment $67.40 1 usually ships 6-16 days
17 275-7048 Bracket weldment $219.20 1 usually ships 1-5 days
18 999-1426 Screw M8-1.25 x 45mm hex head stainless steel $3.04 2 ships same day
19 999-1407 Washer 5/16 belleville $2.76 4 ships same day
20 175-7911 Roller $9.68 2 usually ships 6-16 days
21 175-2249 Sleeve $3.08 10 ships same day
22 999-0783 Screw M8-1.25 x 16mm hex head $0.99 2 ships same day
23 175-7920 Washer M8 flat stainless steel $3.30 2 ships same day
24 275-7049 Compressed spring $10.60 2 usually ships 1-5 days
25 999-1156 Washer M12-.7 nylon $3.60 4 ships same day
26 275-7050 Upper arm weldment $43.70 2 usually ships 1-5 days
27 275-7051 Flanged bushing $16.00 10 usually ships 1-5 days
28 275-7052 Bushing $2.20 8 usually ships 1-5 days
29 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 10 ships same day
30 275-7053 Screw M10-1.5 x 35mm hex head stainless steel $2.40 10 usually ships 1-5 days
31 275-7054 Compressed spring $9.50 2 usually ships 1-5 days
32 275-7055 Spring rod $38.20 2 usually ships 1-5 days
33 275-7056 Spring guide $11.00 2 usually ships 1-5 days
34 275-7057 Pivot plate $23.40 2 usually ships 1-5 days
35 999-1155 Screw M8-1.25 x 60mm hex head $1.87 2 ships same day
36 999-9097 Washer M8 flat stainless steel $0.99 2 ships same day
37 275-7058 Compressed spring $41.10 2 usually ships 6-16 days
38 175-0939 Thrust washer $4.50 4 ships same day
39 275-7059 Lower arm weldment $97.40 2 usually ships 1-5 days
