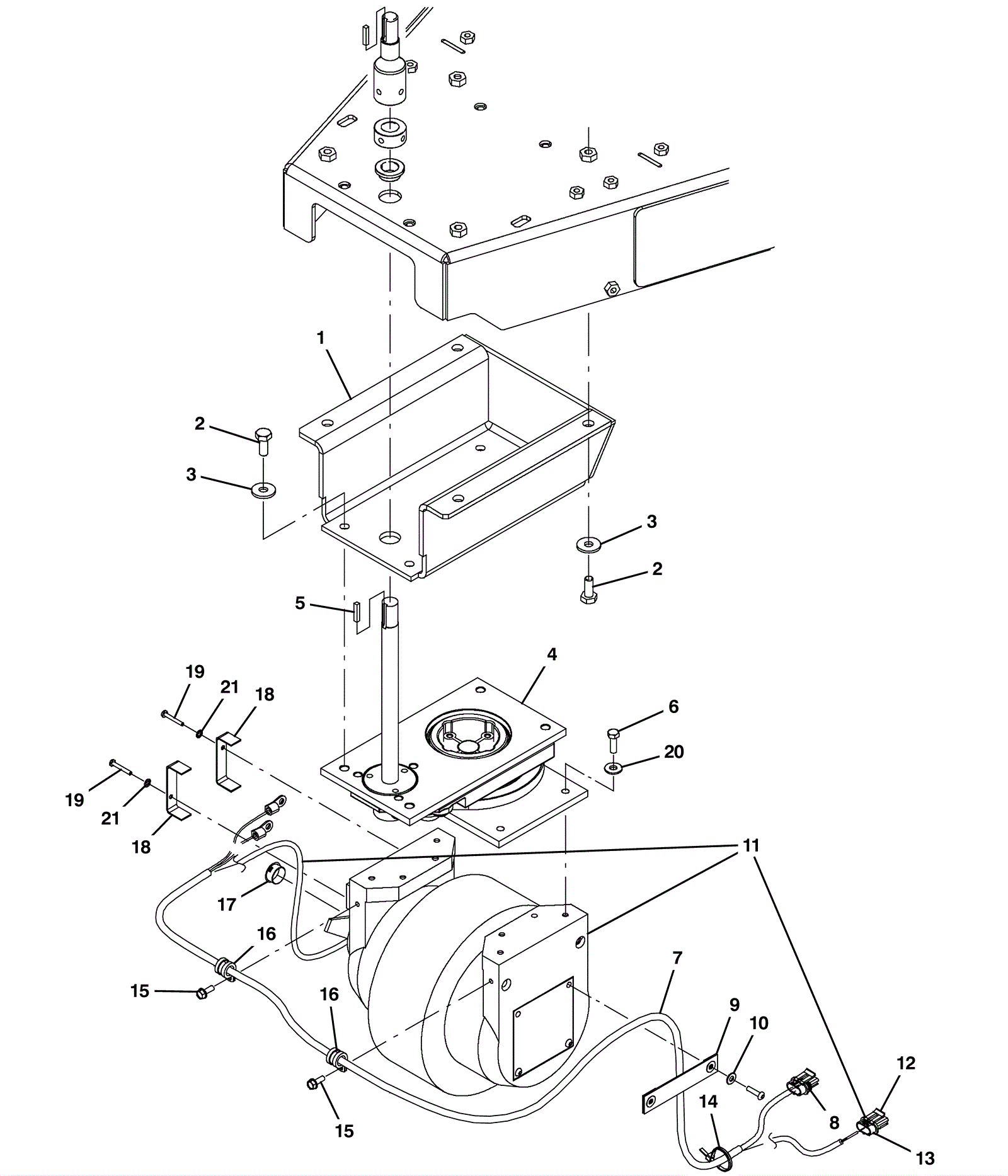

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
275-7036
|
Wheel support bracket |
$60.39
|
1 |
|
usually ships 1-5 days |
2 |
999-1372
|
Bolt M10-1.5 x 25mm hex head stainless steel |
$3.56
|
8 |
|
ships same day |
3 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
$0.99
|
8 |
|
ships same day |
4 |
275-8091
|
Steering control assembly |
$1,374.01
|
1 |
|
usually ships 13-17 days |
5 |
175-3200
|
Square keyway |
$4.49
|
1 |
|
ships same day |
6 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
$2.64
|
4 |
|
ships same day |
7 |
275-7037
|
Brake harness |
$76.34
|
1 |
(includes 8) |
ships same day |
8 |
275-9355
|
Female connector |
$17.49
|
1 |
(assembly only) |
ships same day |
9 |
275-8095
|
Nylon strap |
$22.22
|
1 |
|
ships same day |
10 |
999-0006
|
Washer 3/16 flat zinc plated |
$0.99
|
1 |
|
ships same day |
11a |
275-6296
|
Wheel gearbox kit |
$5,071.11
|
1 |
(includes 11b-13) |
usually ships 13-17 days |
11b |
275-8096
|
Female terminal |
$4.49
|
2 |
|
ships same day |
11c |
275-8097
|
Wire seal |
$4.62
|
2 |
|
ships same day |
12 |
175-8753
|
Female connector |
$8.25
|
1 |
(connector only, no assembly available) |
usually ships 13-17 days |
13 |
175-8756
|
Male and female secondary lock |
$5.28
|
1 |
|
usually ships 13-17 days |
14 |
175-7795
|
Cable tie |
$5.15
|
4 |
|
ships same day |
15 |
175-3166
|
Bolt M6-1 x 16mm hex head |
$5.28
|
2 |
|
usually ships 13-17 days |
16 |
175-7808
|
1/2 inch insulated P clamp |
$5.15
|
2 |
|
usually ships 1-5 days |
17 |
175-3126
|
Plug |
$5.28
|
1 |
|
ships same day |
18 |
275-7038
|
Cord bracket |
$14.19
|
2 |
|
usually ships 1-5 days |
19 |
999-1672
|
Screw M4-.7 x 30mm pan head phillips stainless steel |
$0.99
|
2 |
|
usually ships 19-32 days |
20 |
999-9097
|
Washer M8 flat stainless steel |
$0.99
|
2 |
|
ships same day |
21 |
999-1083
|
Washer #8 internal star lock stainless steel |
$0.99
|
2 |
|
ships same day |
